User manual
27.3 Legend of Lifting Power Tables
max
A
B
*
admissible load with dipper stick straight
projection from live ring centre
height of lifting hook
lifting power limited by hydraulic system
All values of the table are specified in kg, in horizontal
position
on solid subsoil and without bucket.

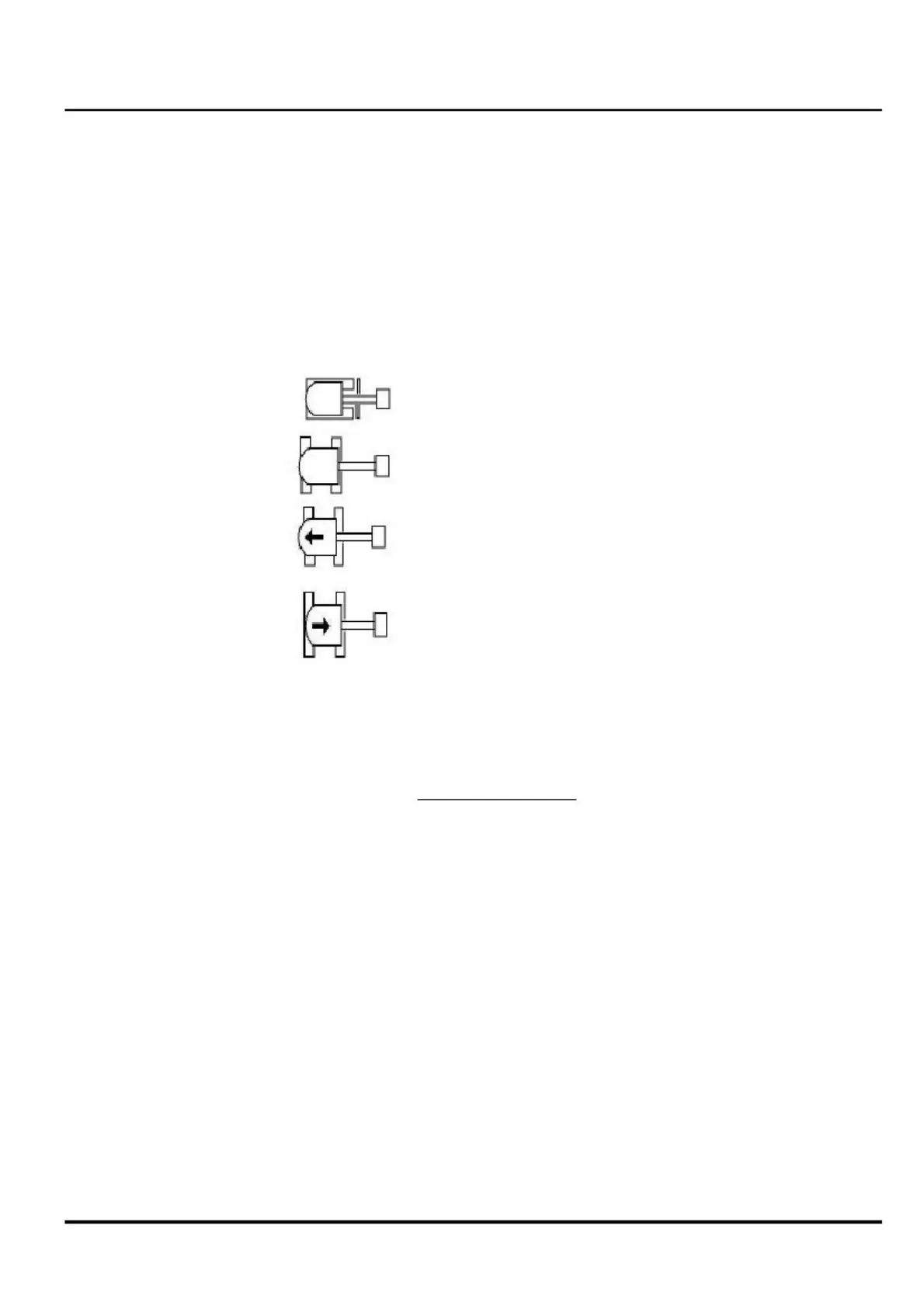

.... with dozer blade supported, in travelling
direction
... without dozer blade supported, 90° to travelling
direction
... without dozer blade supported, 90° to travelling
direction
superstructure shifted backward by means of option
VARIO
... without dozer blade supported, 90° to travelling
direction
superstructure shifted forward by means of option
VARIO
If a bucket or other working facilities are installed, the lifting
power
or tilting load is reduced by the empty weight of such
facilities.
Position on solid subsoil and without bucket.
Design fundamentals: acc. to ISO 10567
The lifting power of the compact excavator is limited by the
setting
of the pressure control valves and the stabilizer system.
Neither
75% of the static tilting load nor 87% of the hydraulic lifting
power
are exceeded.
WARNING! The Vario system deviates form ISO 10567 in
some excavator positions. Other than specified by standard
ISO 10567 any exceeding of the tilting load is announced by
means of a warning device.
9707672_user manual_en
- 77 -
