Warning Equipment of Neuson Vario
1) Depending on the position of the Vario stability might be
increased or reduced (warning range A) compared with
the
standard excavator. Please confer the Lifting Power
Table
and the figure "Warning range".
Explanation of warning ranges:
A (digging above crawler)................WARNING, reduced
stability!
B (digging in longitudinal direction).....superstructure in the
unfavourable range
compared with Vario, no
change of stability
(hydraulically limited)
2) The warning device is set to 73% of the static tilting
load in
case of unfavourable superstructure position. As soon
as
this load is exceeded and working is done with the
superstructure in an unfavourable position (warning
range)
or when slewing into such range, a short warning
sound is
emitted once and a warning lamp lights up (for
position of the
warning lamp see figure "Warning lamp".
WARNING: If the stick system is not lowered and
slewed out
of the danger area when the warning (sound, lamp) is
emitted (braking of superstructure and opposite
control) or
if the warning is ignored, the machine may tilt!
The warning lamp is equipped with a function check.
Upon
each start the lamp lights up for a short time.
Always make sure that the warning lamp is working
properly!
Operation of the excavator is permitted only with
the lamp being functioning properly!

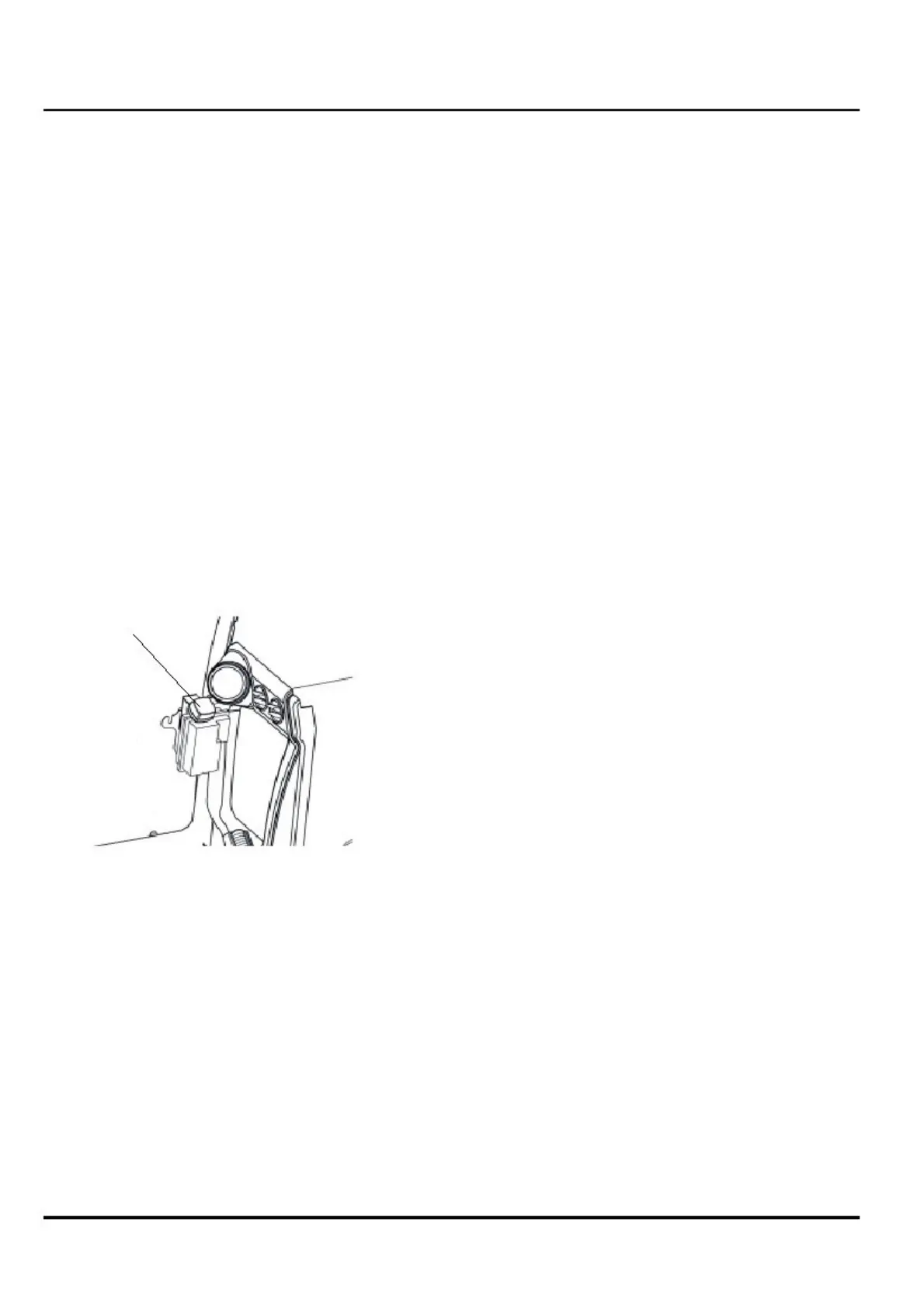

Fig.: Warning lamp
3)
4)
