Nexa SP-816 User Manual

Z-WAVE PLUS INFO
Role type Node type Installer icon User icon
Slave Sleeping report Z-Wave Plus node
Sensor Notication Device Type (Home Security) Sensor Notication Device Type (Home Security)
AGI (Association Group Information) TABLE
Group Prole Command Class & Command (List) N bytes Group Name(UTF-8)
1 General
Battery Report, Notication Report,
Device Reset Locally
Lifeline
2 Control Basic Set PIR Control
BATTERY
Battery report (value) Description
20–100 Battery Level (%)
0xFF Low Battery
NOTIFICATION
Event Type Event
Event Parameters Length Event Parameters
The power is applied for the rst time 0x08 0x01 0x00
PIR Trigger ON 0x07 0x08 0x00
PIR Trigger OFF 0x07 0x00 0x01 0x08
Tamper switch being press more than 10 seconds 0x07 0x00 0x01 0x03
Tamper switch being press more than 10 seconds and released 0x07 0x03 0x01
VERSION
Protocol Library Protocol Version
3 (Slave_Enhance_232_Library) 4.3D ( 6.71.01)
MANUFACTURER
Manufacturer ID Product Type Product ID
0x0060 0x0001 0x0005
Z-WAVE GROUP
The detector supports either one of two Z-wave Association
Groups.
Group 1: Association with 1 Controller node.
Group 2: Association with 4 nodes (i.e. end devices such as
smart plugs and other lighting controllers). This allows
the detector to transfer commands directly to end
devices without the participation of the controller.
This has the effect that when the detector triggers, all
devices associated with detector will be operated.
Group 1 commands:
• When the unit is powered up and was already a part of a
Z-Wave network, the unit will send a Notification Report to
the node in Group 1.
•  When the detector senses a movement, the unit will send
a Notification Report to the nodes of Group 1. Once the
movement is stopped, a Notification Report will be sent again
to Group 1.
•  Upon detector status being changed, the unit will check its
battery status simultaneously. When the battery level of the
unit drops to an unacceptable level, the unit will emit Battery
report to the nodes of Group 1.
• When performing Factory Reset the unit will send Device
Reset Locally Notification to the node of Group1.
Group 2 commands:
•  When the detector is triggered, the unit will send BASIC_SET
command which contains a value to the nodes of Group 2.
COMMAND CLASSES
The module supports Command Classes including:
• COMMAND_CLASS_ZWAVEPLUS_INFO_V2
• COMMAND_CLASS_ASSOCIATION_V2
• COMMAND_CLASS_ASSOCIATION_GRP_INFO
• COMMAND_CLASS_TRANSPORT_SERVICE_V2
• COMMAND_CLASS_VERSION_V2
• COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
• COMMAND_CLASS_DEVICE_RESET_LOCALLY
• COMMAND_CLASS_POWERLEVEL
• COMMAND_CLASS_SECURITY
• COMMAND_CLASS_SECURITY_2
• COMMAND_CLASS_SUPERVISION
• COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
• COMMAND_CLASS_BATTERY
• COMMAND_CLASS_WAKE_UP_V2
• COMMAND_CLASS_NOTIFICATION_V4
WAKEUP COMMAND CLASS
After it has been included into a Z-wave network, the detector
will go to sleep but will send a Wakeup Notification Command
periodically at preset period to the controller. The Motion detector
will stay awake for 10 seconds at least and then go back to sleep
to conserve battery life.
The time interval between Wakeup Notification Commands can
be set in the Wakeup Command Class based on the range values
below:
Minimum Wake Up Interval 600 s (10 minutes)
Maximum Wake Up Interval 86400 s (1 day)
Default Wake Up Interval 14400 s (4 hours)
Wake Up Interval Step Seconds 600 s (10 minutes)

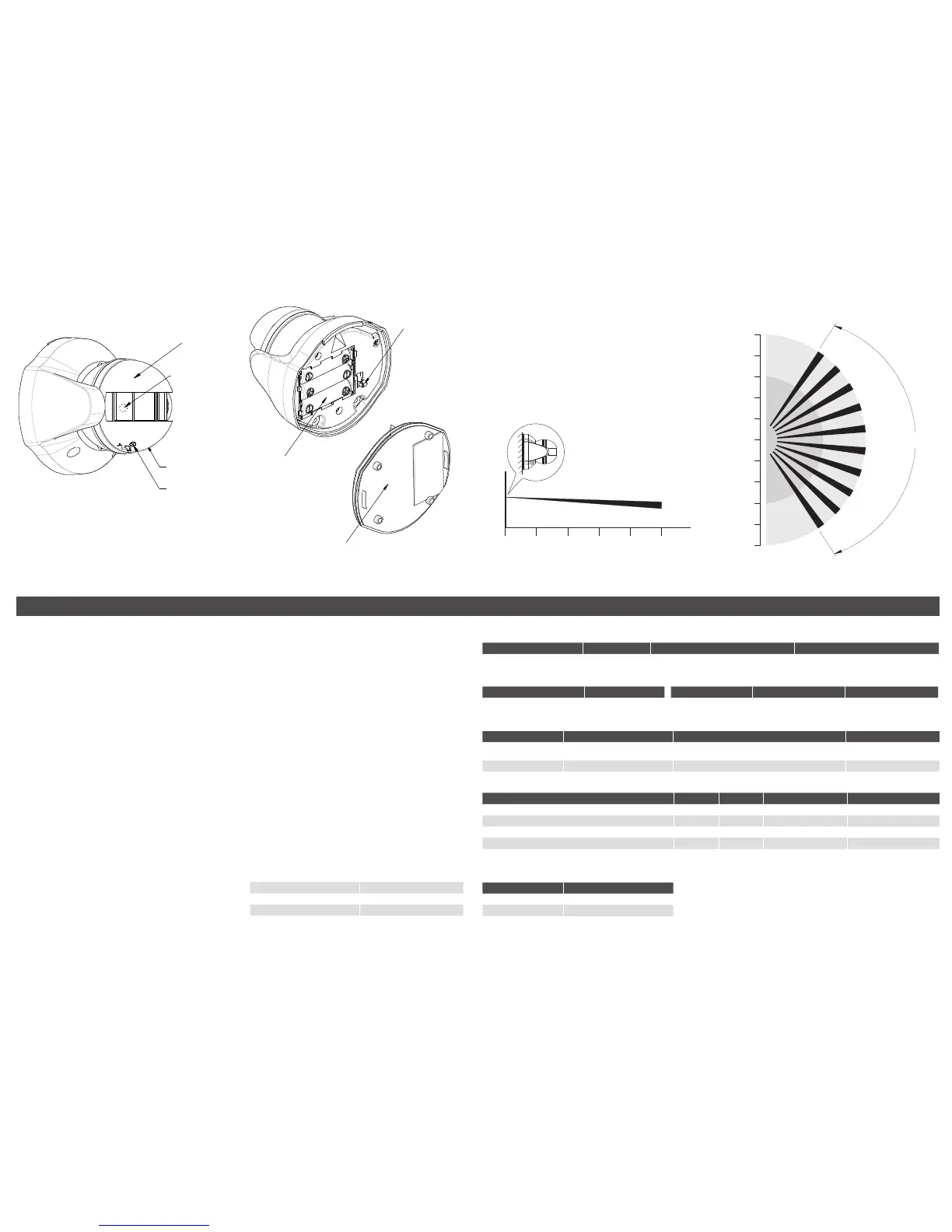

PROGRAMMING (only in english)
2
0
10
6
(m)
100°
4
8
2 m
0 2 4 6 8 10 m
2
4
6
8
10
2
0
10
6
(m)
100°
4
8
2 m
0 2 4 6 8 10 m
2
4
6
8
10
Batteri
Battery
Bakstycke
Back cover
Sabotagelarm
Tamper switch
Aktiveringstimer
Timer
Ljuskänslighet
Lux knob
Rörelsesensor
Motion sensor
LED indikator
LED indicator
DETEKTERINGSOMRÅDE /
PIR PATTERN
Ovanifrån / Top view
Från sidan / Side view
SP-816 MANUAL 2017
