19
Touching
Underside of
Lid

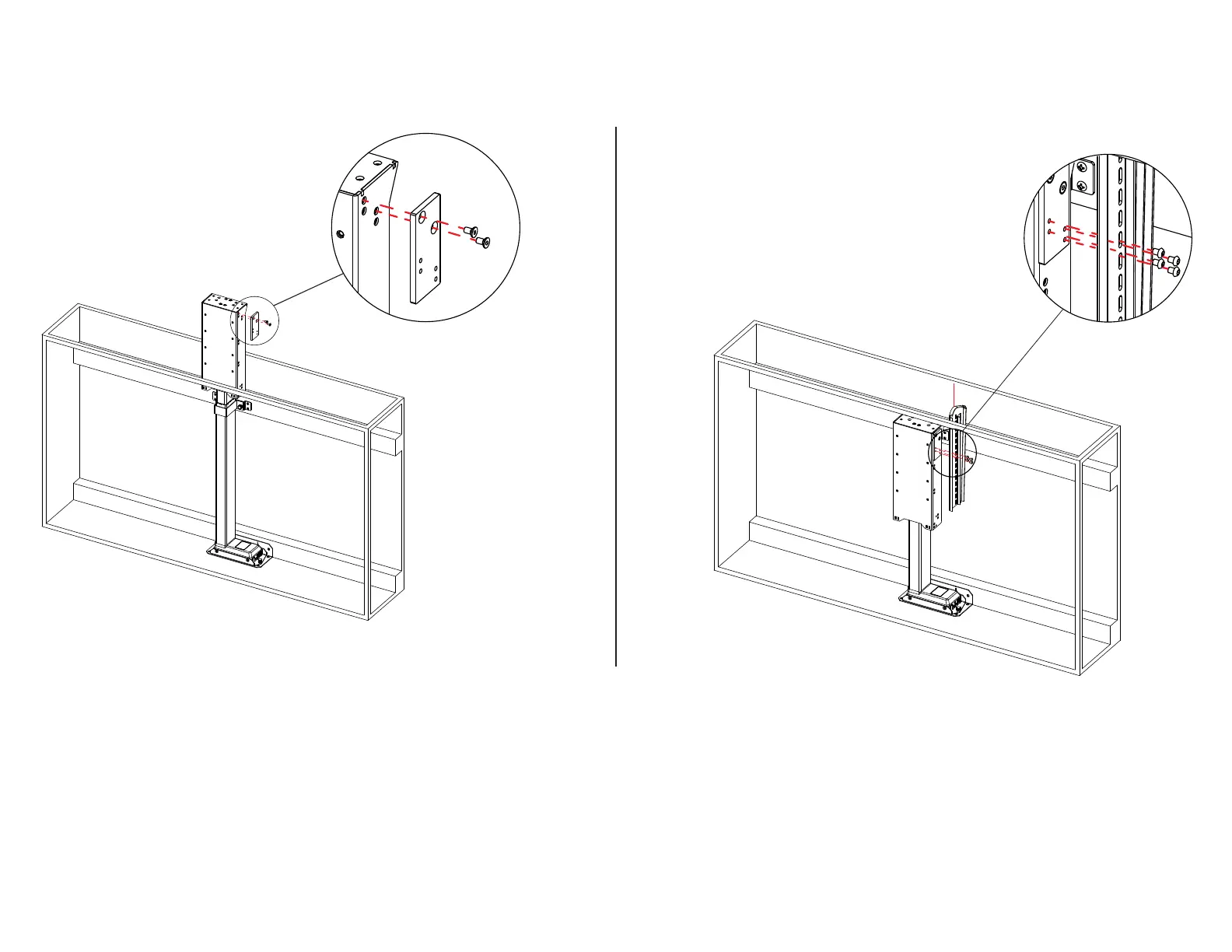

11 a . Install the Hinged Top Guide Adapter on the right side of the Screen Support using (2) M6 x 12 FHMS in the countersunk holes.
11 b . Lower your lift system by pressing the Down button on the Wired Backup Switch.
11 c . Apply the provided Hook and Loop Strip to the back face of the Hinged Top Guide. Then, position your Hinged Top Guide along the right side of the Screen Support so the
top of the Hinged Top Guide is touching the underside of your lid when the lift is fully retracted. Install the Hinged Top Guide using (4) M6 x 12 BHMS.
Note: After installing the Hinged Top Guide, rest the cabinet lid on the Lid Catches to ensure the HTG is not adjusted too high.
