Nexus 21 L-77i - Page 49

49

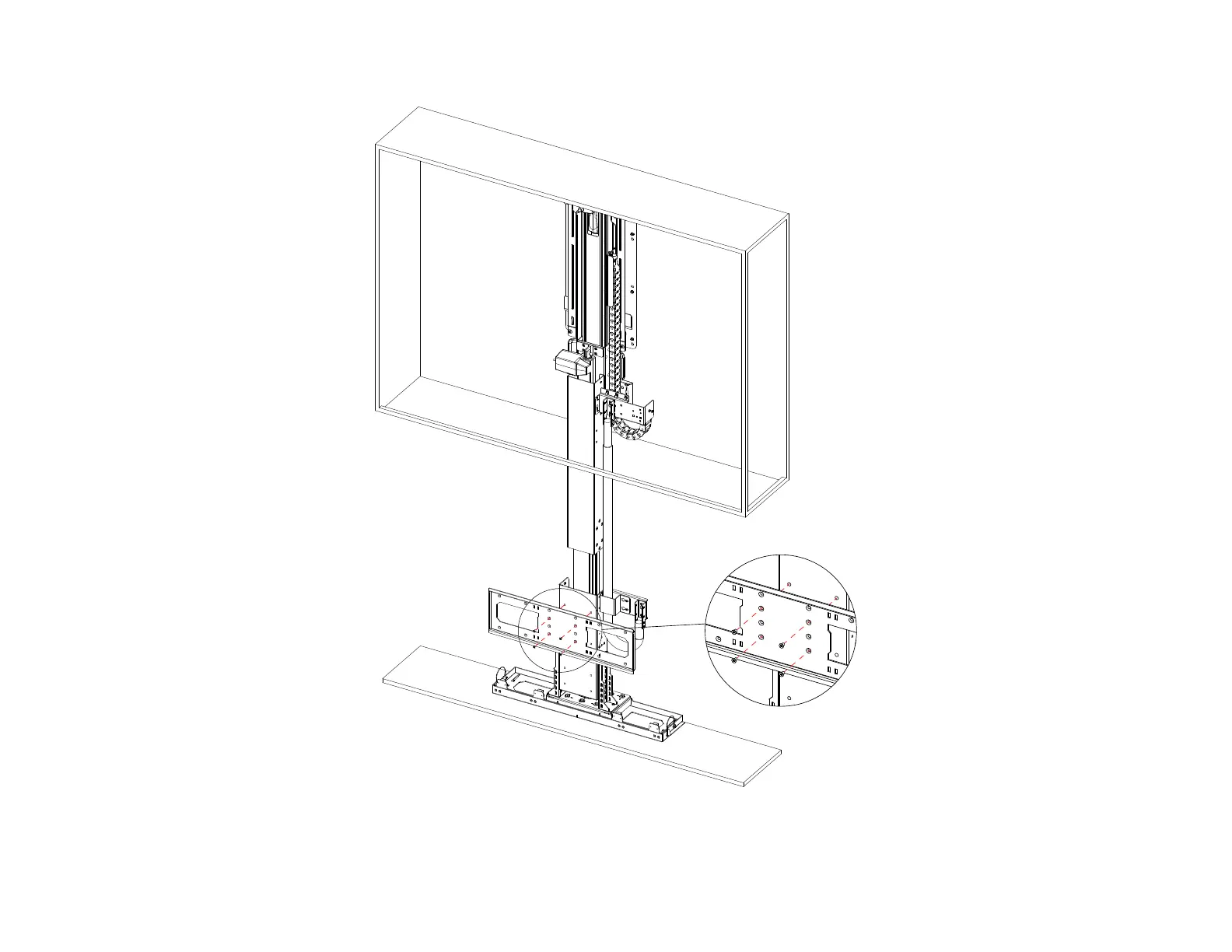

34a. Disconnect the Screen Backplate from the Vertical Mounting Bars.
Note: You can disengage the spring-loaded latch on the Vertical Mounting Bars by pulling the straps at the bottom.
34b. Attach the Screen Back Plate to the holes on the Screen Support that correspond with the Marked Holes on your TV Mounting Template using (4) M6 x 12 FHMS.
