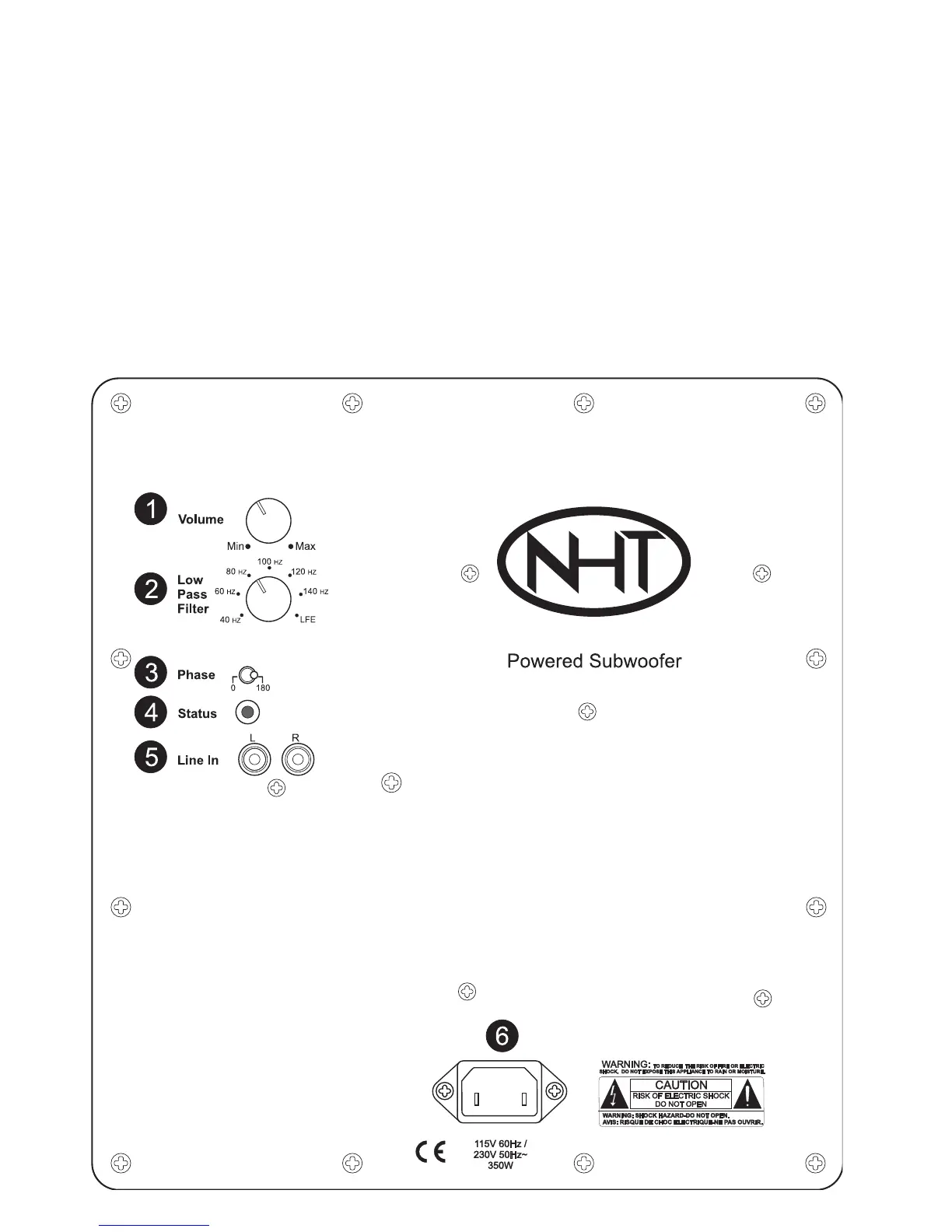

Back of Subwoofer
(1) Volume Control - Adjusts the loudness of the subwoofer independently of the main speakers.
(2) Low-Pass Filter - Continuously variable low-pass crossover control.
(3) Subwoofer Phase Selector - 2-position selectable phase control for subwoofer. (0 - 180)
(4) Status - The light is green when the subwoofer is on. The light is red when the subwoofer is in stand-by
mode. The light is red when the subwoofer is in protection mode.
(5) Line Input - Low level RCA input jacks for L/R signals
(6) Power Inlet - For universal AC line input connection. The CS-10 and SS-10 will operate at 100 to 264 VAC.
There is no fuse.
