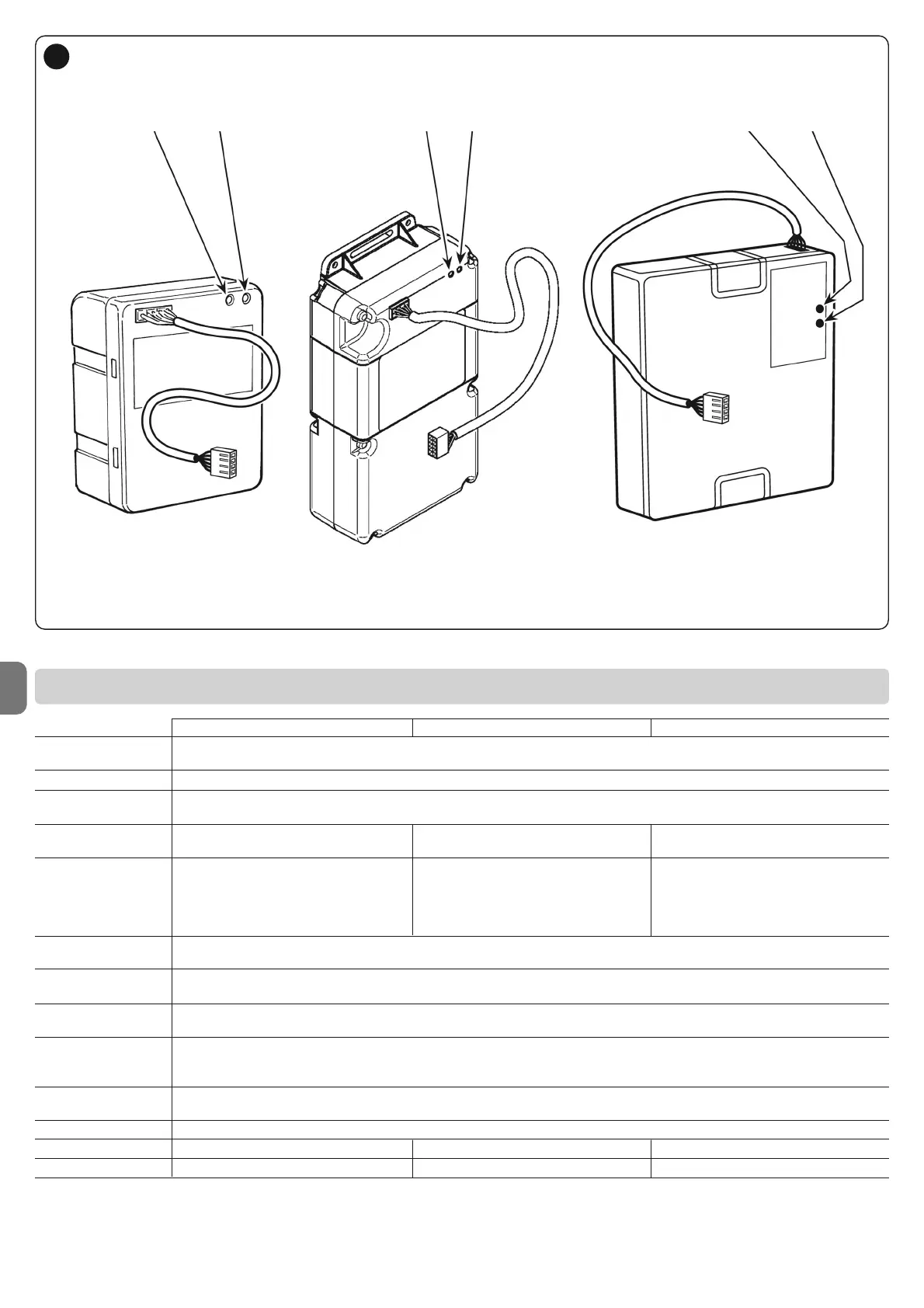

PS124 PS224 PS324
10
EN – TECHNICAL SPECIFICATIONS OF PRODUCT
PS124 PS224 PS324
Kit of 24 V batteries complete with battery charger for powering automations for automatic gates and
doors in the event of a mains power failure
Accumulation of electric energy with hermetically sealed lead batteries (maintenance free)
28 V at maximum charge; 16 V at maximum discharge (the battery is disconnected automatically when totally discharged)
6 A nominal; 15 A nominal; 8 A nominal;
8 A for 3 seconds, on start-up 20 A for 0.5 seconds, on start-up 10 A for 3 seconds, on start-up
1,2 Ah, corresponding to an autonomy of 7,2 Ah, corresponding to an autonomy of 2.2 Ah, corresponding to an autonomy of
approx. 12 hours with automation approx. 30 hours with automation approx. 20 hours with automation
on stand-by or 5 minutes with a charge on stand-by on stand-by or 5 minutes with a charge
of 4 A corresponding to an average or 12 minutes with a charge of 15 A of 8 A orresponding to an average
of at least 10 manoeuvres of at least 10 manoeuvres
approx. 16 hours approx. 20 hours approx. 16 hours
estimated at 4 ÷ 6 years; or over 1000 cycles for discharge level of 30%, over 500 cycles for discharge at 50%,
over 200 cycles for discharge of 100%
from - 20 to + 55°C (battery efficiency is reduced in proportion to a decrease in temperature, at -10°C efficiency is 30%;
the battery lifetime decreases on an increase in temperature; at 40°C lifetime may be reduced to 2 years)
No
Insertion in specific compartments in control units or gearmotors.
Connection by means of specific cable supplied
IP 30 (use only inside control unit or gearmotors or other protected environments
104 x 53 x h 143 mm 162 x 78 x h 297 mm 163 x 188 x h 48 mm
1,450 g 5,500 g 2,400 g
Type
Technology adopted
Charge-discharge
voltage
Current delivered
Accumulation capacity
Complete recharge
time
Battery lifetime
Ambient operating
temperature
Use in acid, saline or
potentially explosive
atmospheres
Assembly and
connections
Protection rating
Dimensions
Weight
WARNINGS:
– The products PS124 - PS224 - PS324 are produced by Nice S.p.a. (TV) I.
- All technical specifications stated herein refer to an ambient temperature of 20°C (± 5°C).
- Nice S.p.a. reserves the right to apply modifications to products at any time when deemed necessary, maintaining the same intended use and functionality.
– Lead battery performance is influenced by the relative conditions of use: temperature, absorbed current, charge status, and age of the battery can cause significant variations to the
original specifications.
