ENGLISH – 9

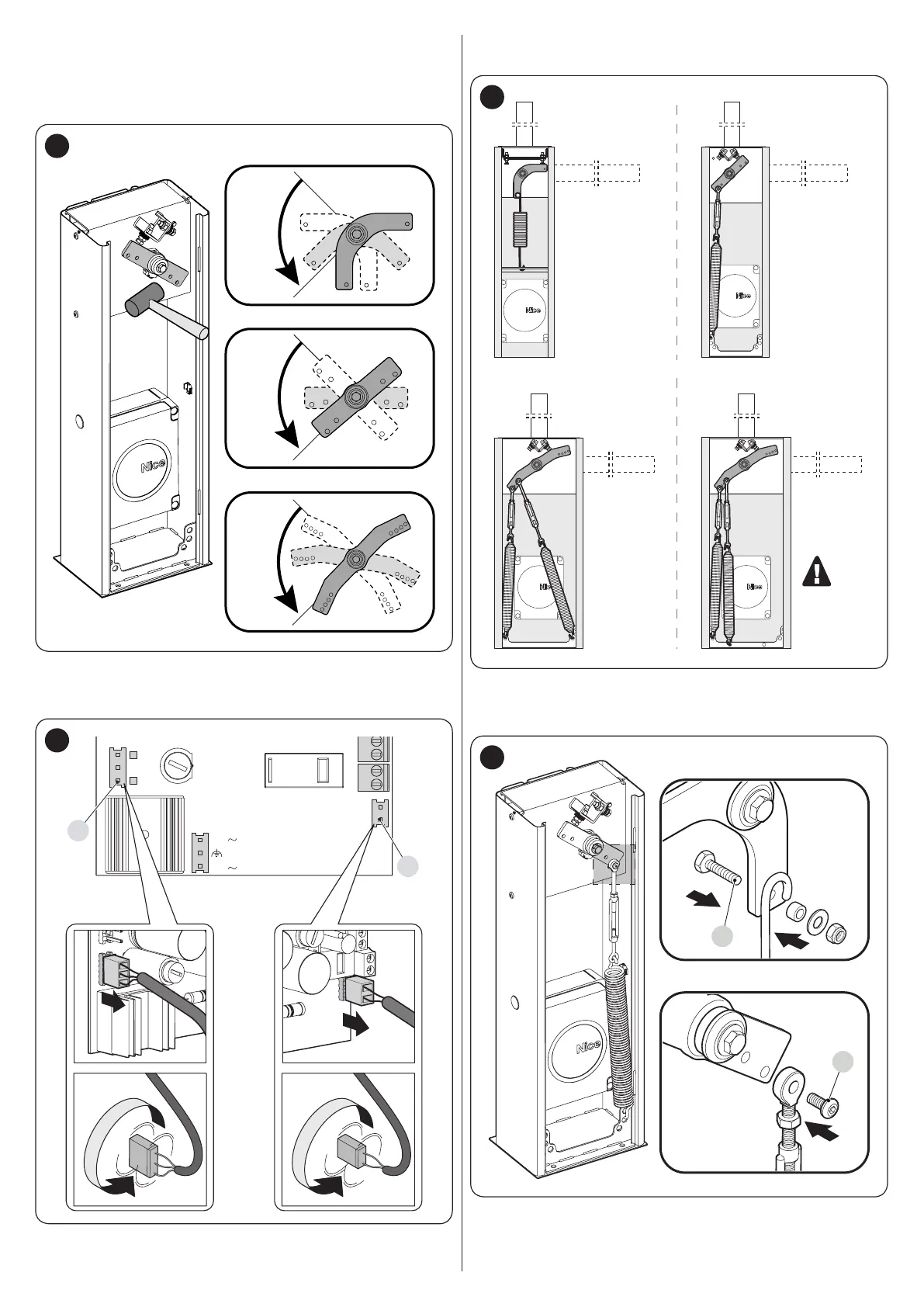

7. to set the closing manoeuvre of the boom towards the right
of the barrier mechanism:
– unlock the gearmotor (refer to the “Manually unlocking
and locking the gearmotor” paragraph) and turn the
balancing lever by 90°
90°
90°
90°
WIDE M
WIDE S
WIDE L
10
– access the control unit by removing the protective cover
– rotate through 180° the motor connector MOTOR (D) and
the connector of the limit switches LIMIT SWITCH (E)
Fuse F8A
3
4
5
6
7
24V
FCA
FCC
LIMIT SWITCH
MOTOR
24V
180° 180°
D
E
11
– the balancing spring should be positioned as shown in
the diagram
open
close
open
close
WIDE S
WIDE L
< 7 m
WIDE M
open
close
open
close
WIDE L
7 m
12
8. secure the spring to the lower plate
9. fasten the spring’s eyelet to the balancing lever, tightening
the bolt vigorously
WIDE S
WIDE M, WIDE L
C
C
13
10. close the covers of the gearmotor
11. if the gearmotor was previously unlocked, lock it again.
