Nikon 1 AW1 Quick Start Guide

Carefully replace the O-ring, making sure that it sits correctly in the channel, and is not stretched
or bulging.
After making sure that the O-ring and the guide are free of foreign matter, place the
O-ring so that it runs evenly at the same level, all the way around the O-ring guide.
The O-ring should not be overly stretched, nor should it protrude from the camera
body.
Using the AW1 with a non-waterproof 1
NIKKOR lens
The Nikon 1 AW1 is a waterproof camera, when used with its waterproof lenses.
You can also use the Nikon 1 AW1 with non-waterproof 1 NIKKOR lenses with the
caveat that the camera will not be waterproof with a regular lens attached.
To use the Nikon 1 AW1 with a regular, non-waterproof 1 NIKKOR lens, you will
have to protect the O-ring on the camera with the supplied O-ring protector.

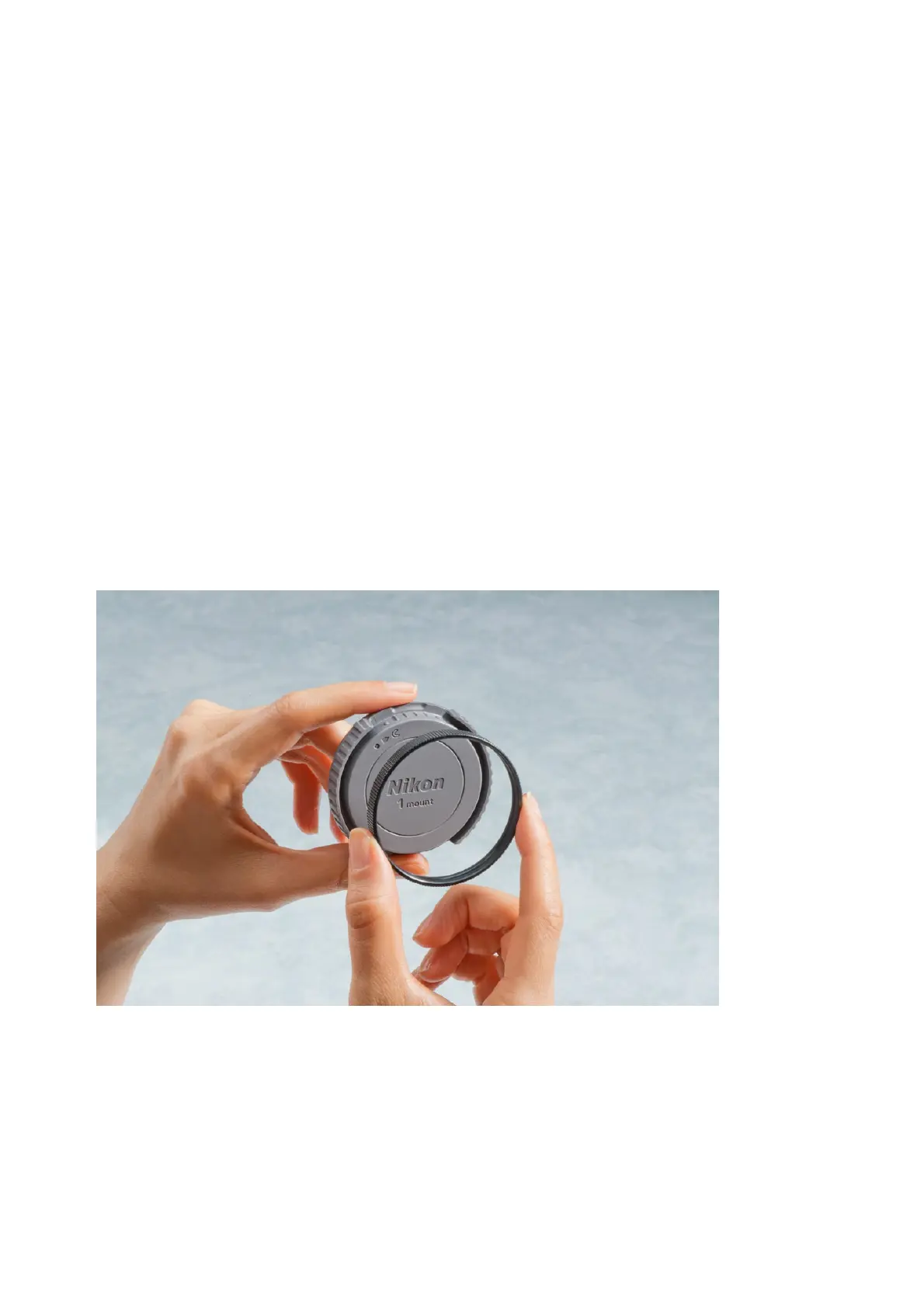

When you are using the Nikon 1 AW1 with a waterproof lens, place the O-ring protector on the
body cap that came with the camera for safe keeping. This way, you always know where it is
when you need it.
The O-ring protector is supplied with the camera and should be kept on the body
cap of the AW1 when it is not being used.

Nikon 1 AW1 Specifications

General

Sensor Type	CMOS
Effective Pixels	14.2 million
ISO Sensitivity	160-6400
Lens Mount	Nikon 1 mount
Autofocus System	Hybrid AF (phase-detection/contrast-detect AF)
Display Size	3.0 inches
Camera Type	Mirrorless
Screen Type	TFT LCD
Built-in Flash	Yes
GPS	No
Wi-Fi	No
Dimensions	113.3 x 71.5 x 37.5 mm
Sensor Size	13.2 x 8.8 mm
Continuous Shooting Speed	15 fps
Video Recording	1080/30p
Waterproof	Yes (15m)
Shockproof	Yes (2m)
Freezeproof	Yes (-10°C)
Battery Life	Approx. 220 shots
Image Stabilization	Lens-based
Shutter Speed	1/16000 to 30 s
LCD Screen	921, 000 dots
