Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- D7･ S1 -
FRONT COVER
・ Remove the FPC at 2 places.
・ Being careful of the FPC that is connected with the barrier motor unit [#206], remove the lens unit and the main PCB
unit CP-1 [#225] from the front cover [#201].

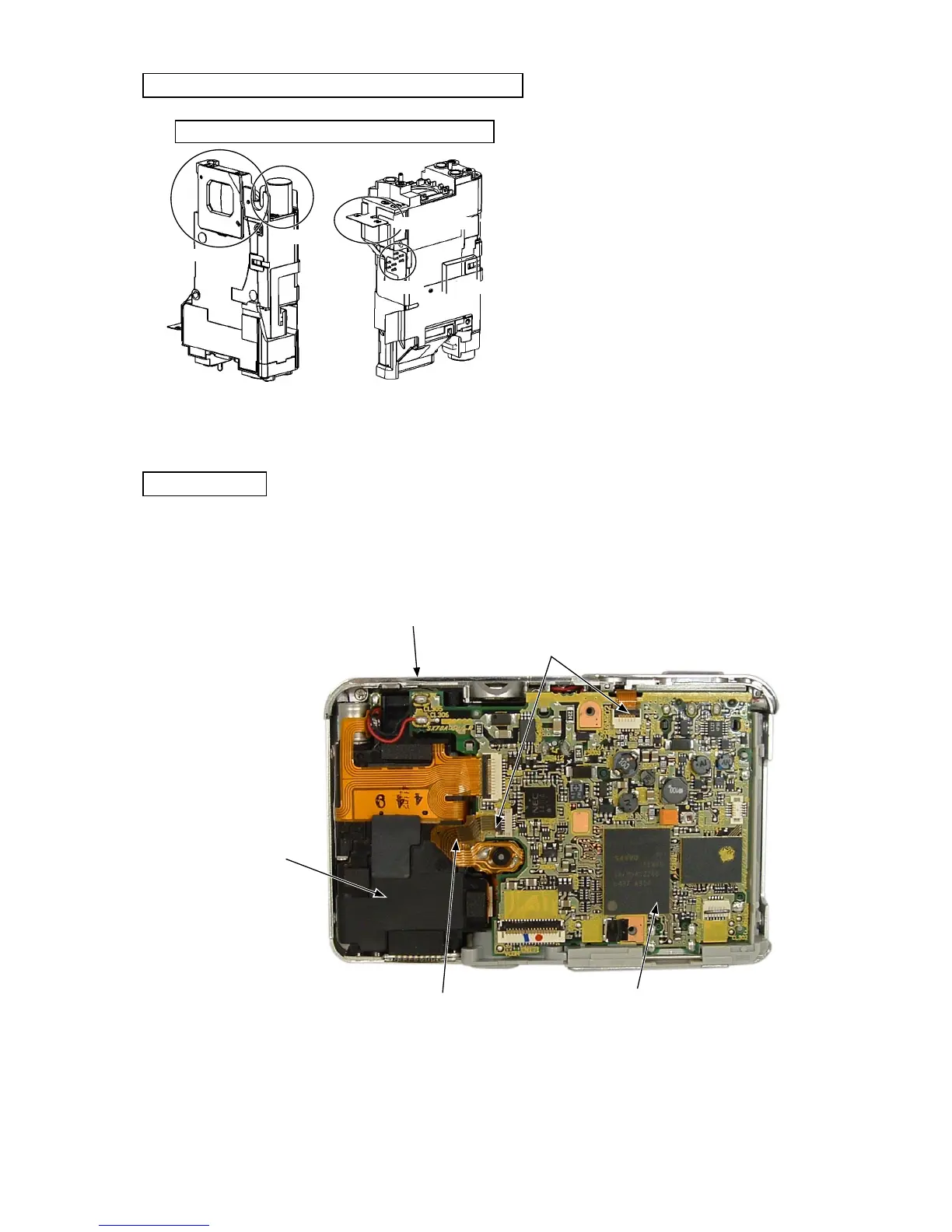

PLACE WHICH MUST NOT BE TOUCHED IN LENS UNIT
G1～プリズム部
モータ部
シャッタコネクタ部
ＰＩ部
背面シート
＜LENSの触れてはいけない箇所＞
PLACE WHICH MUST NOT BE TOUCHED IN LENS UNIT
G1 ~ Prism unit
Shutter connector unit
Motor unit
PI unit Rear sheet
FPC
Front cover [#201]
FPC connected with the barrier motor unit [#206]
Lens unit
Main PCB unit CP-1 [#225]

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
