Nikon D300 - Outside LCD, Release SW and Other Small Parts; Metering Mode Dial, Power Dial and Other Small Parts

- Ｄ  ･ -
logo�Q0310�forGraphic
070509�Gdesign�ito
VBA20001-R.3720.A


#787
#704
#1053
#707×2
#706
#705
#973
#1003
#730
#955
#974
#39
#911
#731
#1540
#1560
#1540
#753
#750
#1606
#746
#1537×2
#765
#912
#913
#929
#1544×3
#703
#1547×2
#747
#780
#781
#1652
#B745
#914
#1028
#B782
#1648
#743
#742
#734
#733
#732
#784
Red
Yellow
Black
#1557×2
#748×2
#1608×2

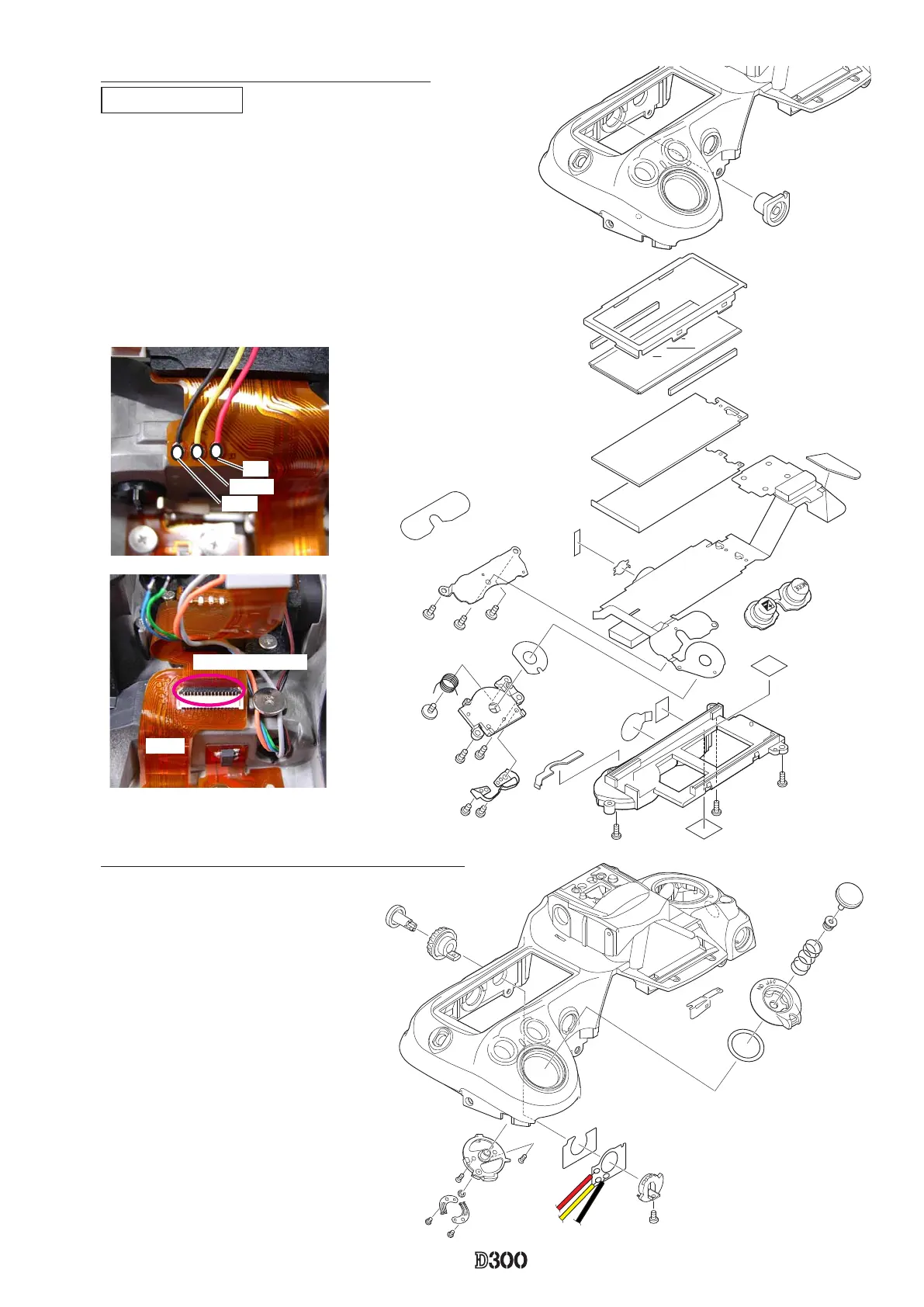

Metering mode dial, Power dial and other small parts
・
Unsolder the three wires .
・
Take out the screw (#1606) and remove the spring (#750).
・
Take out the two screws (#1547), three screws (#1544), two
screws (#1540) and one screw (#1560).
・

Compensation/mode button support plate (#731).
・
Disconnect the mode dial FPC from the connector, and

Red
Yellow
Black
#1003
Mode dial FPC
INC
