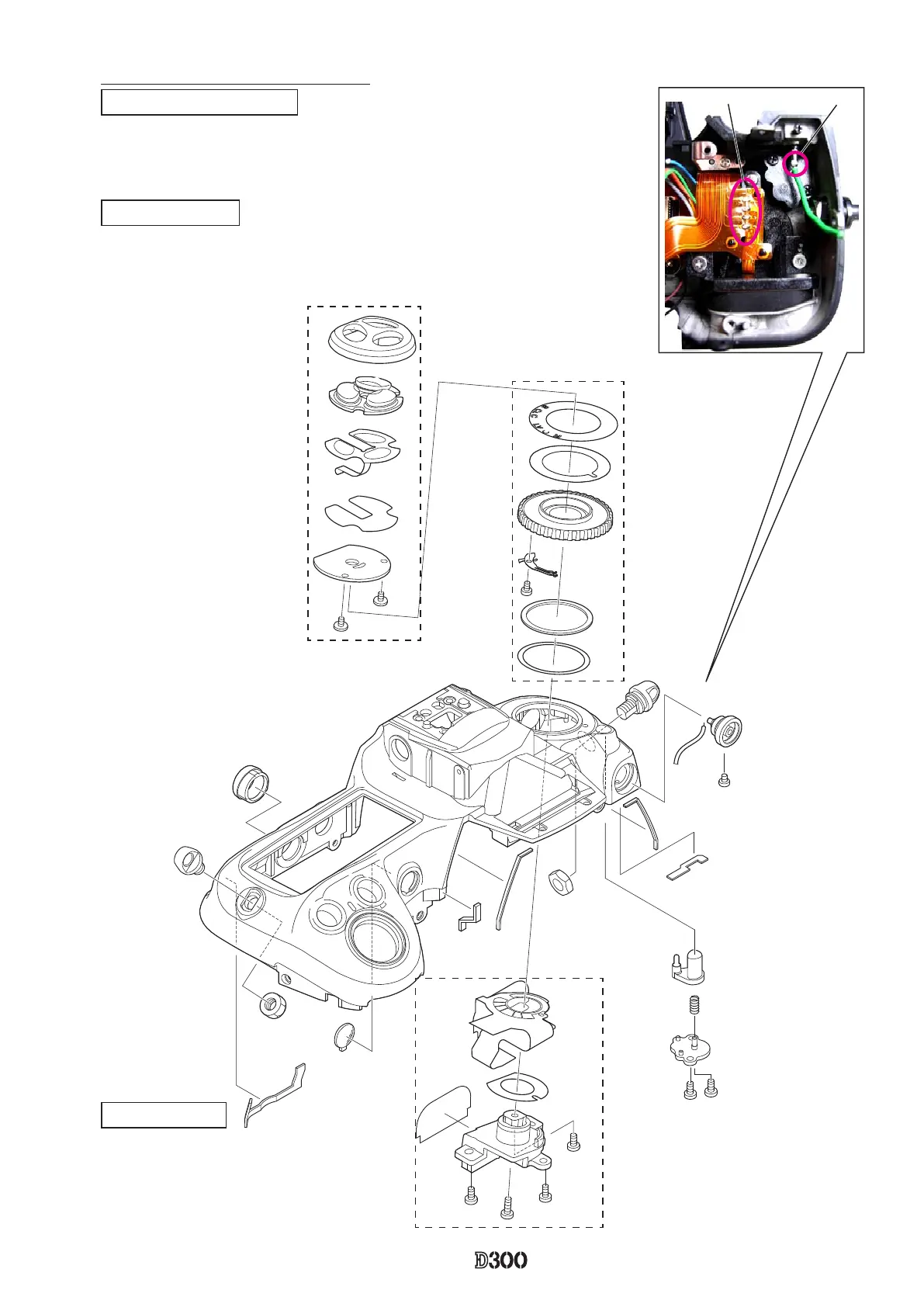

Mode dial, Eyelet and other small parts
・
Unsolder the synchro-terminal lead wire (#1107).
・
Take out the screw (#1532) and remove the synchro terminal (#50).
・
Take out the one screw (#1571) and two
screws (#1609), and remove the mode dial
FPC unit (#B505).
Synchro-terminal
Mode dial / Trefoil buttonTrefoil button
WB
QUAL
ISO
Soldering bridge
Solder
#502
#501
#1026
#516
#503
#788
#B43
#B44
#1659
#966
#327
#515
#505
#514
#1025
#1659
#968
#967
#967
#970
#508
#509
#510
#1544×2
#1609
#1609
#1571
#1574
#B502
#B504
#B505
#50
#1107
#1532
#518
#519
#504
#507
#1533
#512
#511
#1640×2
Mode dial FPC
・
Remove the soldering bridges of the FPC (#1025) and
[
#1026].
・
Take out the screw (#1574) and remove the mode dial unit (#B504) and the
trefoil button unit (#B502).
