Nikon D300 - Separation of Front Body from Rear Body; Dioptor Adjustment Gear Case; Front Body; Separation of P.box Unit

- Ｄ  ･ -
logo�Q0310�forGraphic
070509�Gdesign�ito
VBA20001-R.3720.A
Dioptor adjustment gear case
・

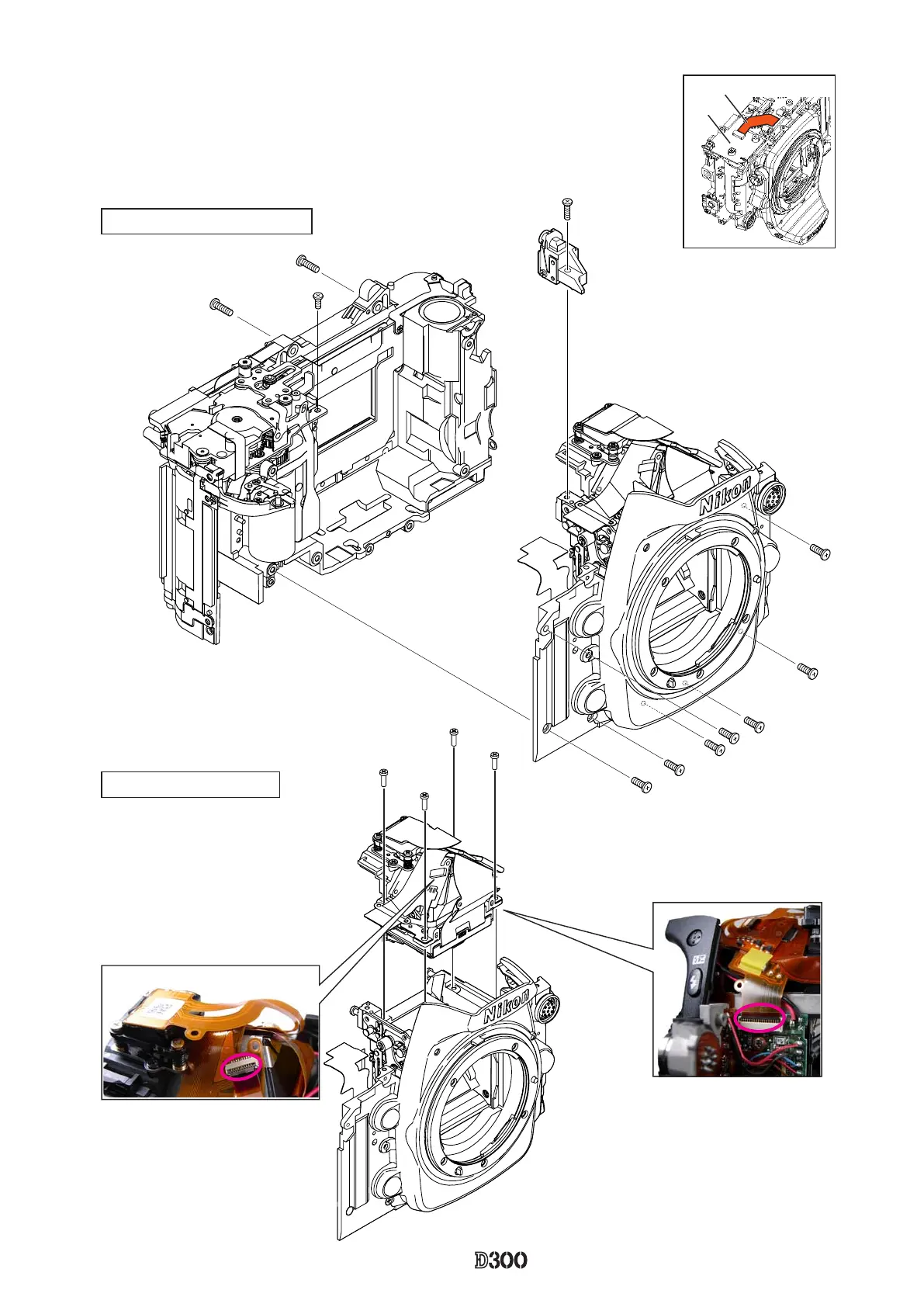

Take out the screw (#1526) and remove the dioptor
adjustment gear case (#B855).
・
Remove the FPC (#1042) from the connector.
・

two screws (#1531).
・
Remove the front body from the rear body.
#B855
#1526
#1572
#1575×6

#1042
#1047
#1525
#1531×2
・
Disconnect the two FPCs from
each connector.
・
Take out the four screws (#1612).
・

3. Front body
#1612×2
#B831
2. Separation of Front body from Rear body
