Nikon D300 - I;F Cover; Discharge of Main Condenser; DG PCB Shield Plate

- Ｄ  ･ -
logo�Q0310�forGraphic
070509�Gdesign�ito
VBA20001-R.3720.A
Soldering bridge
#1515
#1515
#1546×4
DG PCB shield plate
・

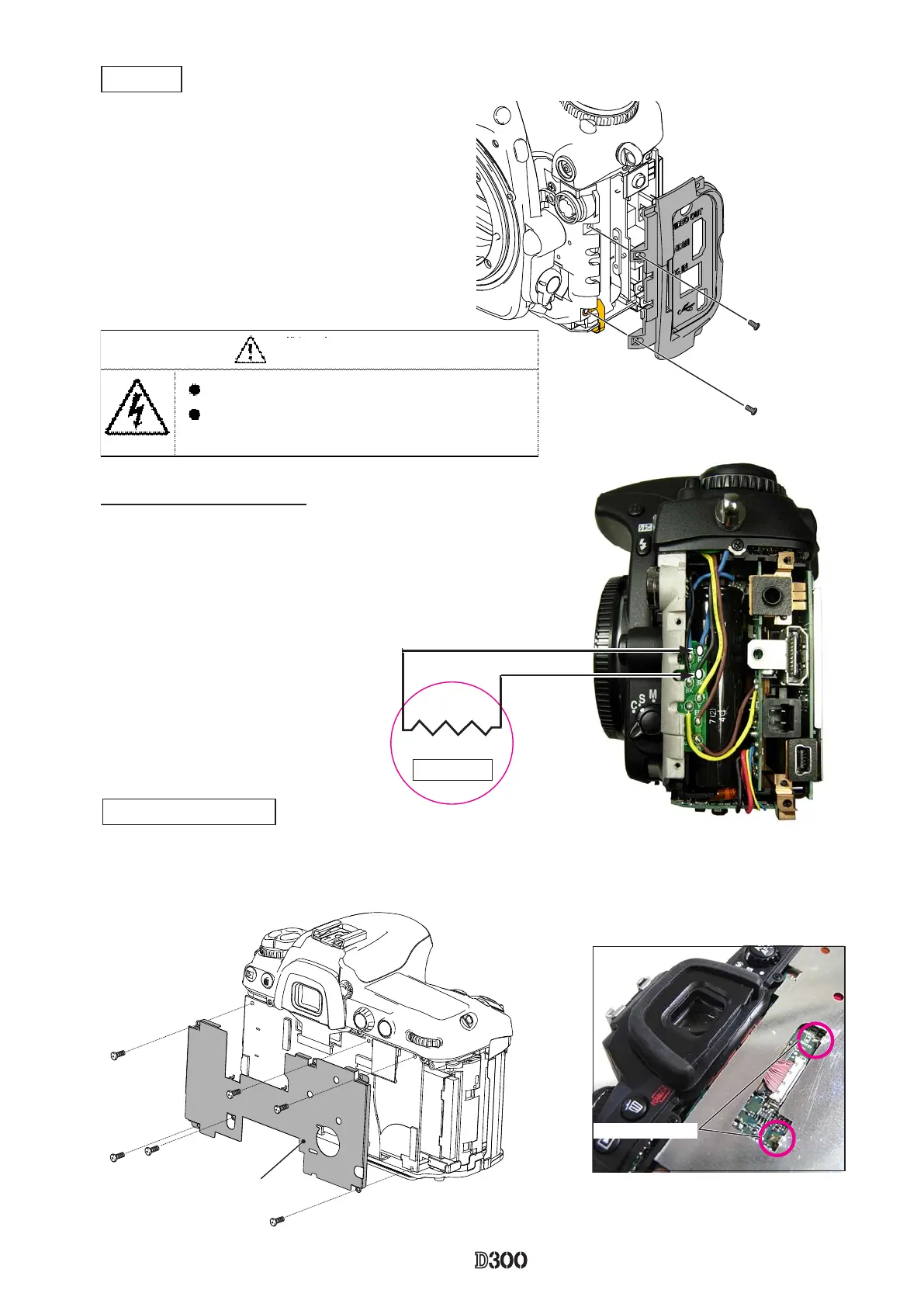

Take out the four screws (#546) and two screws (#1515).
・
Remove the two soldering bridges that joint DG-PCB and DG-PCB shield plate.
・
Remove the DG-PCB shield plate.
#1510×2
I/F cover
・
Take out the two screws (#1510) and remove
the I/F cover (#B28).
・
Remove the conduct plate (#695).
#B28
#695
2K 5W
Discharge of Main condenser
DG-PCB shield plate shield plate
WARNING

covers.
After removing covers, b
e
sure to discharge the main
condenser according to the instructions of repair manuals
.
