Nikon SB-600 FSA03601 User Manual

FSA03601-R.3629.A
- A14・SB-600 -

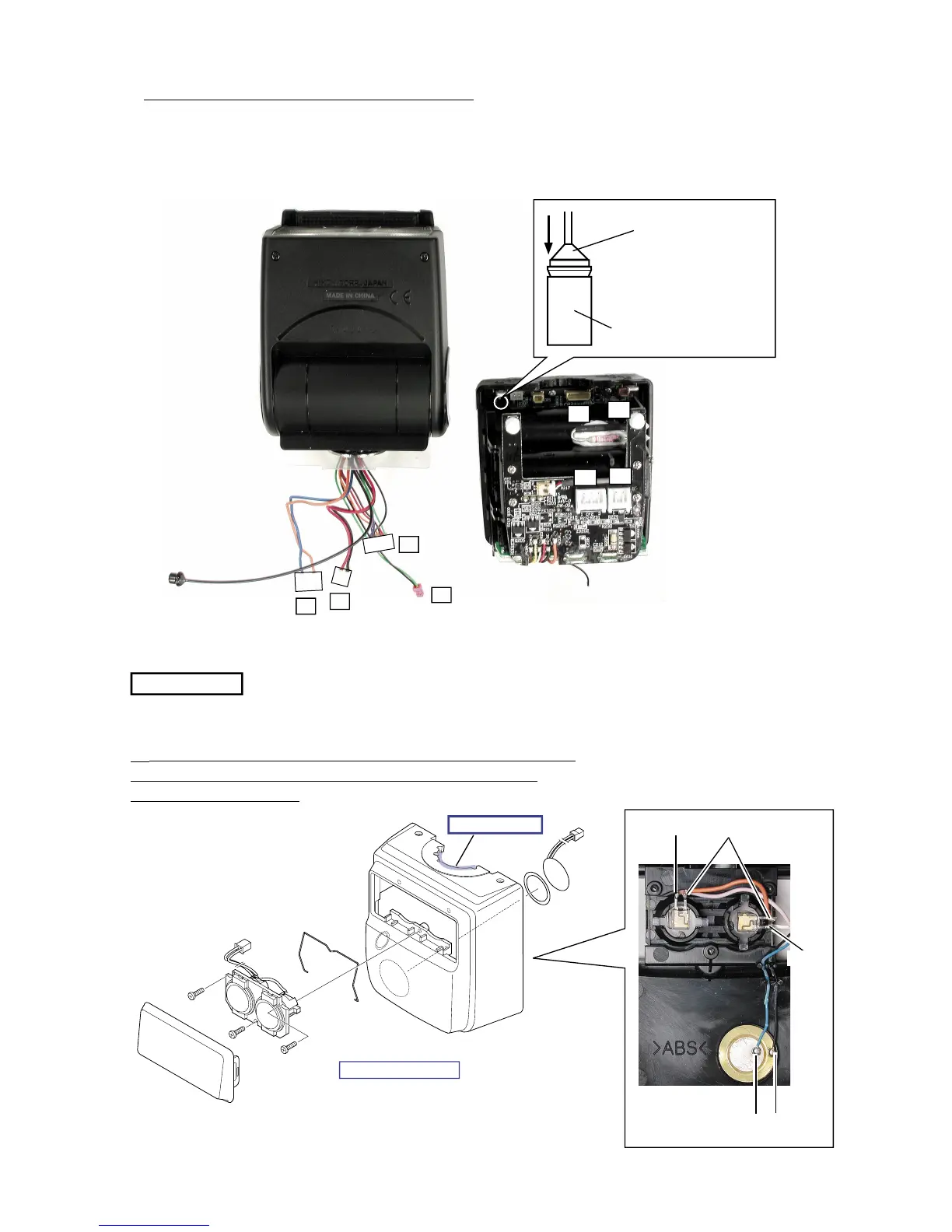

Connect connectors of the head unit to the R case unit
・
Attach 4 connectors (A-D) to the right posi-
tion (A’-D’)which are connected from the
head unit.
・
Insert the  ber optics into the attaching part.
Fiber optics
Head unit
A
A’
B
B’
C’
D’
C
D
Attaching part of  ber
optics
Fiber optics
F case unit
#103
#235×3
#132
#134
#135
#WR5
#101
・
Assemble each part into the F case unit.
＊
Note: In case the AF-assist illuminating lamp (#131) is disassembled,
"Inspection and adjustment of Focusing light" becomes necessary.
(ref. "Adjustment" section)
Solder wires
BLUE
BLACK
PINK
ORANGE
WHITE
#131
Adhesive:EDB0011
R case unit
Grease:G7100

Nikon SB-600 FSA03601 Specifications

General

Compatibility	Nikon i-TTL
Guide Number	30 (ISO 100, m, 35mm)
Zoom Range	24-85mm
Power Source	4 x AA batteries
Type	Shoe mount
Flash Modes	TTL, Manual
Wireless Mode	Yes
Flash Coverage	24-85mm (14mm with built-in wide panel)
Dimensions	2.7 x 5.0 x 3.5" (68.0 x 126.0 x 89.0mm)
Weight	Approx. 350g (without batteries)
