Electrical System - Cable Version 44Service Manual – SC450
Electrical System - Cable Version

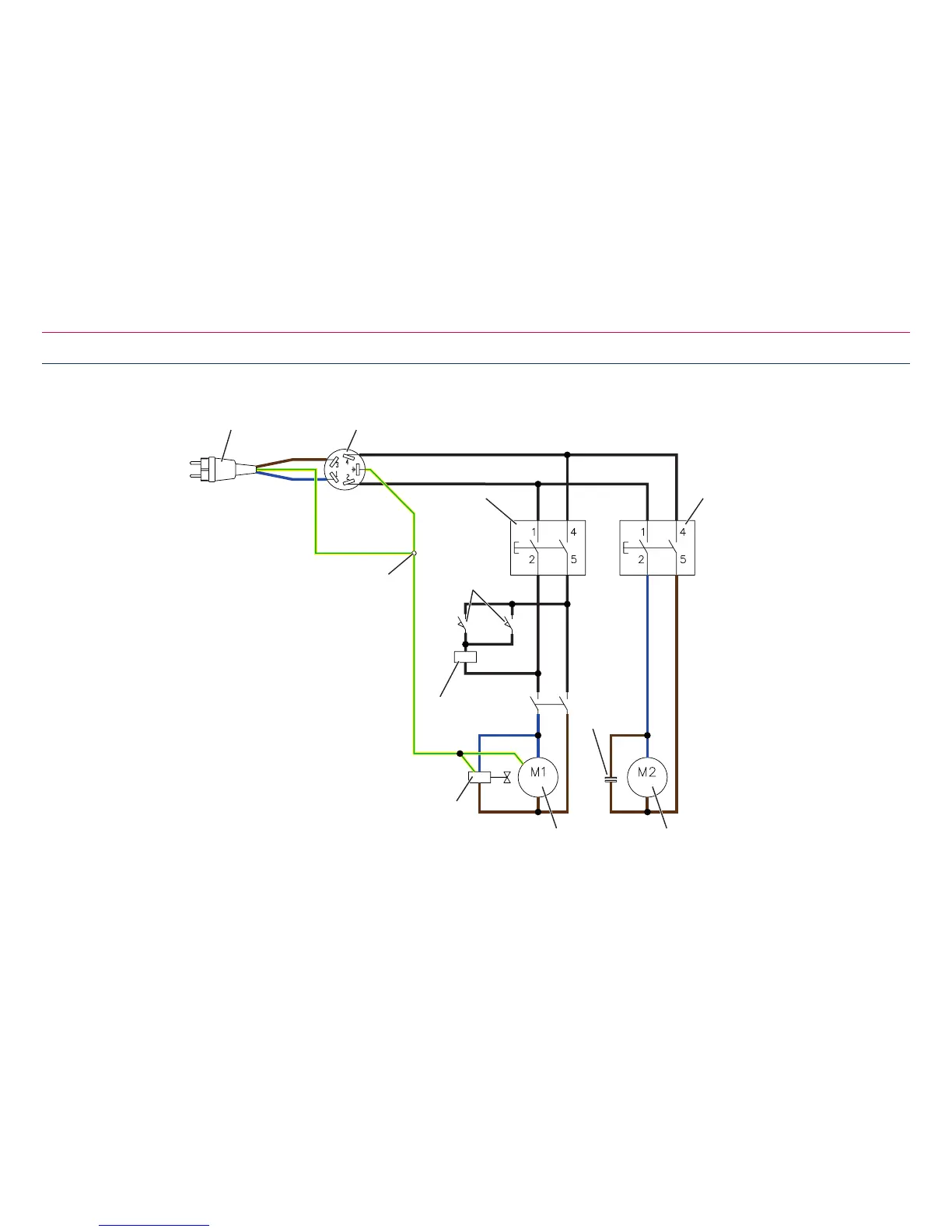

Wiring Diagram
SUPPRESSION
FILTER (C1)
BRUSH MOTOR RELAY (ES1)
SOLENOID VALVE (EV1)
MAINS FILTER (FL1)
HEART SCREW (HS)
DISC BRUSH MOTOR (M1) VACUUM MOTOR (M2)
MAINS PLUG (PL)
BRUSH SWITCH (SW1)
VACUUM SWITCH (SW2)
BRUSH ACTIVATION
PUSH-BUTTONS (SW3) (SW4)
P200011C
