Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 131
5. With the help of an assistant, lay the machine on its side. Lay it on the side that has the wheel o and be sure to
protect the side from damage.
6. Remove the other drive wheel and the transaxle mounng bolts behind it.
7. Disconnect the transaxle motor electrical connector.
8. Make a note of how the transaxle is oriented in the frame before removing it so that it is reassembled correctly.

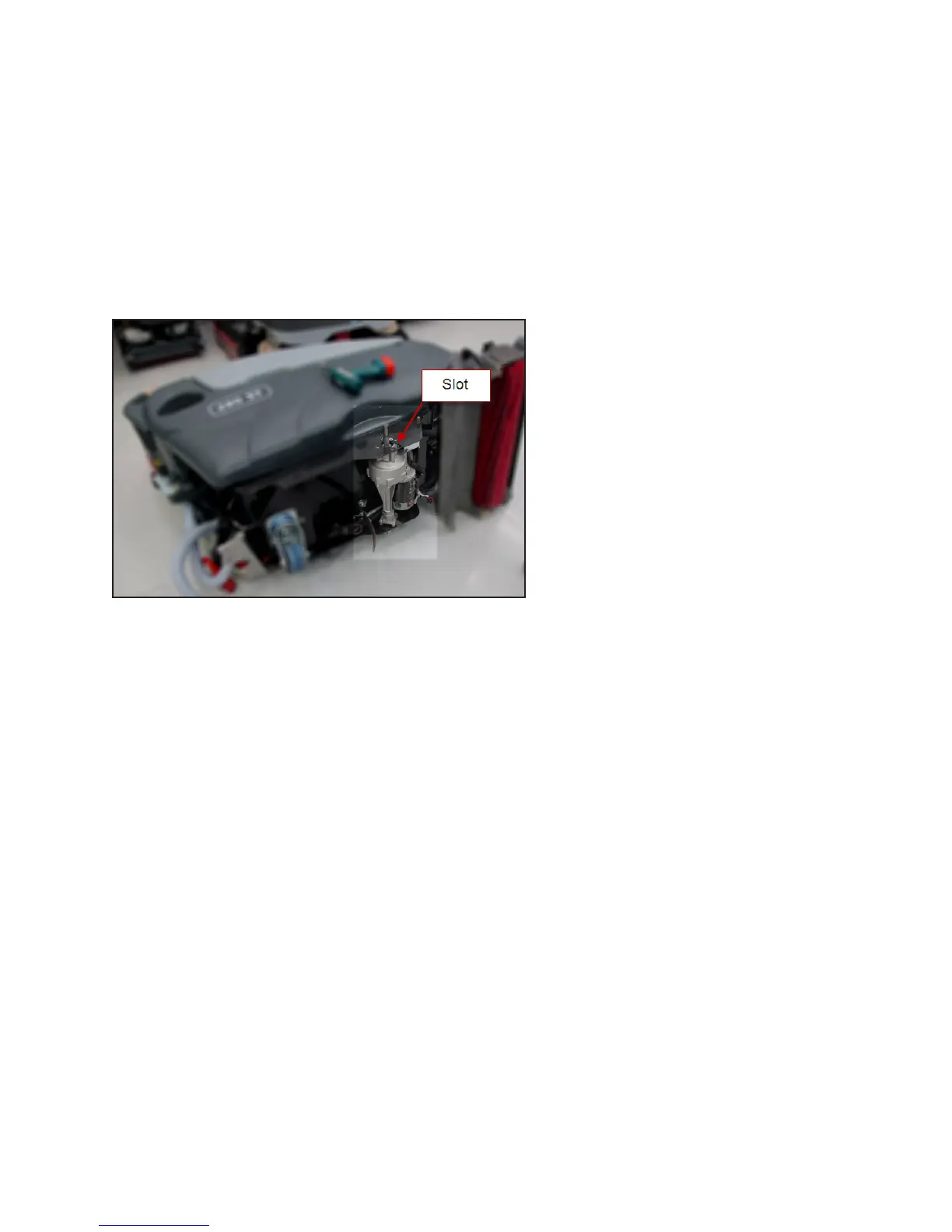

9. Remove the transaxle by sliding it out of the frame slots.
10. Reassemble in reverse order.
