Engine System - Petrol 98Service Manual – SW4000

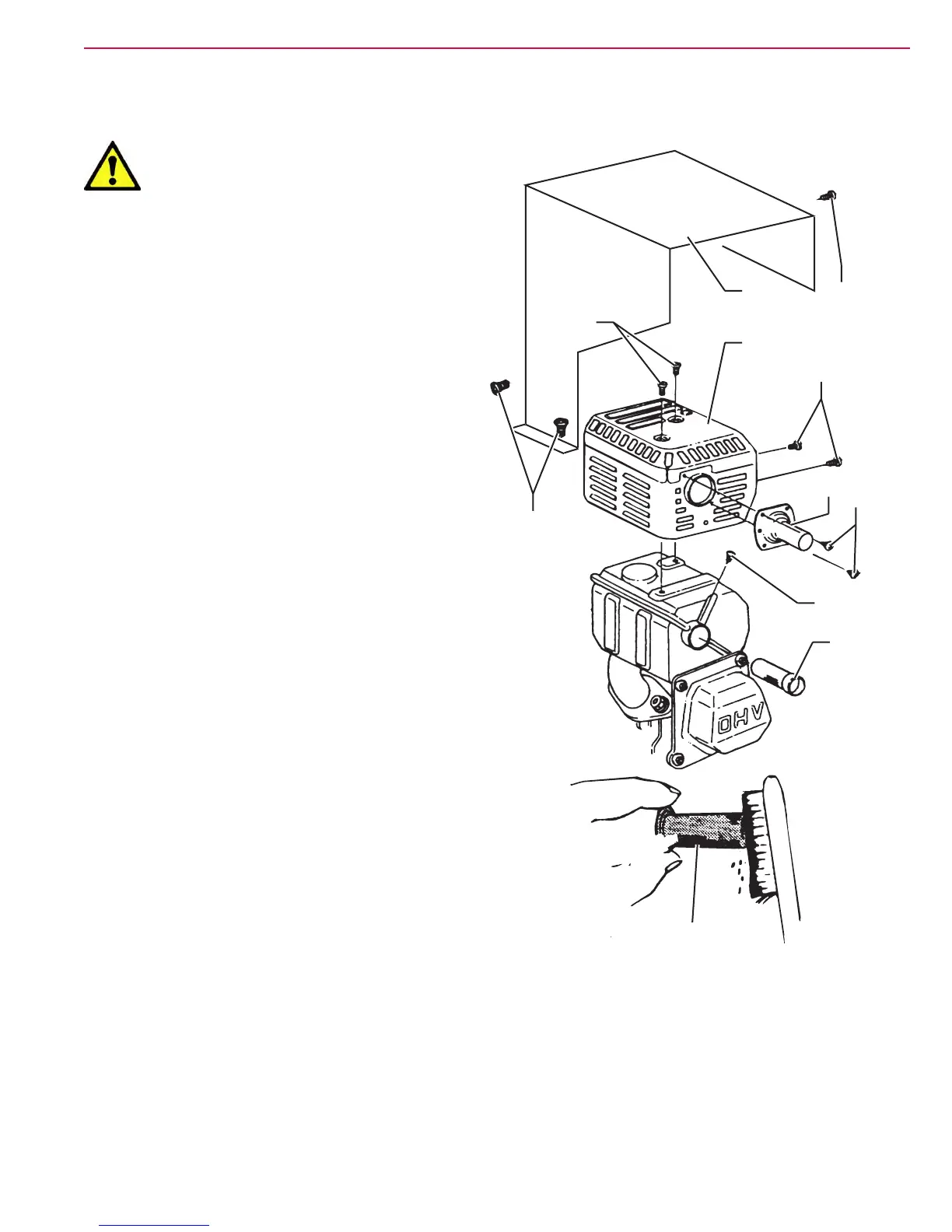

EngineBafePlateCleaning
Warning! If the engine was running, the
silencer will be very hot. Let it
cool down before operating on
thebafeplate.
1. Drive the machine on a level ground and engage
the parking brake.
2. Turn the ignition key to “0”.
3. Open the engine compartment hood with the
handle and fasten it with the support rod.
4. Lift and disassemble the right side bulkhead.
5. Remove the screws (A) and carefully remove
silencer guard (B).
6. Remove the screws (C) and remove the exhaust
manifold (D).
7. Remove the screws (E) and carefully remove
silencer guard (F).
8. Remove the screw (G) and remove the bafe
plate (H) from the silencer.
9. Use a brush to remove the carbon deposits from
the bafe plate shield (I). Take care not to cause
damage to the shield. Replace the bafe plate if
it cracked or perforated.
10. Install the bafe plate (H), the silencer guard (F)
and the exhaust manifold (D).
11. Assemble the components in the reverse order of
disassembly.
C
A
D
B
E
F
G
H
I
E
A
P200136
