Function
26
5. Turn FlexoPower to low pressure.
Open detergent valve.
With open gun, the water gives the
necessary vacuum in the injector to
suck the detergent through the ball
valve.

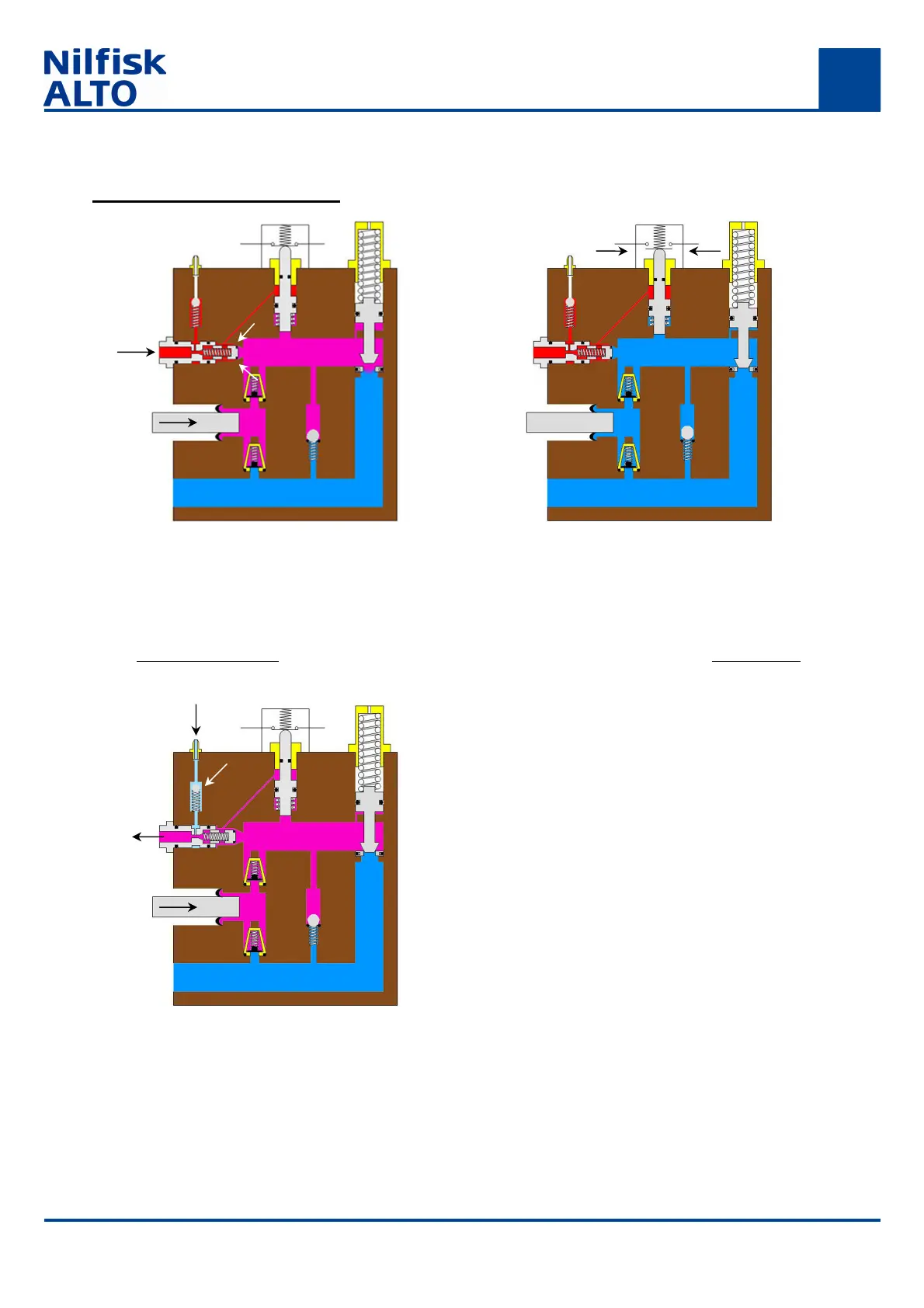

Schematic function 1~ and 3 ~
Fig.D.7.5: Schematic function valve block
4. Pressure in valve block released.
Non-return valve holds pressure in gun
and on top of control piston.Control
piston moves down and end-switch
cuts off motor power supply.
Fig.D.7.4: Schematic function valve block
3. Gun closes. Pressure rises to cut-off
pressure and pressure valve opens
and releases pressure in valve block.
Non return valve moves to its seat.
Fig.D.7.3: Schematic function valveblock
Fig.D.7.3: Schematic function valve block
