Scrub System, BOOST
®
105Service Manual – SCRUBTEC R466 ... FOCUS II Micro Rider
BOOST
®
Deck Drive Guide Disassembly/Assembly
Disassembly
1. Drive the machine on a level oor.
2. Remove the BOOST® deck and leave the deck holder assembly lifted.
3. Turn the ignition key to “0” and disconnect the batteries.
4. Turn the steering wheel to accommodate the position of the drive guide (A) to be removed.
5. Under the machine, remove the screws (B) and the drive guide (A).
6. Replace the drive guide if it is too worn.
Assembly
7. Assemble the components in the reverse order of disassembly.

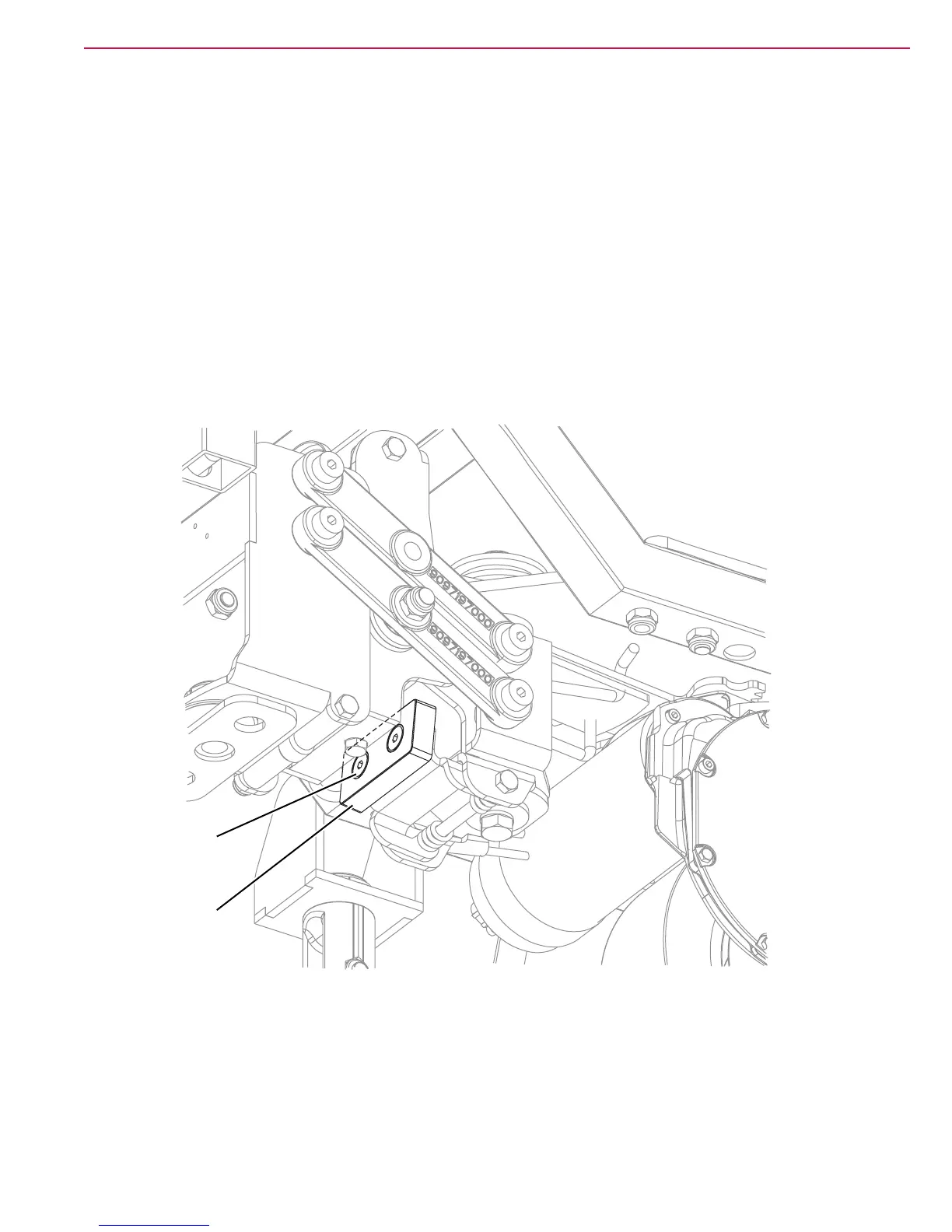

A
B
P100735
