Scrub System, BOOST
®
93Service Manual – SCRUBTEC R466 ... FOCUS II Micro Rider
Maintenance and Adjustments

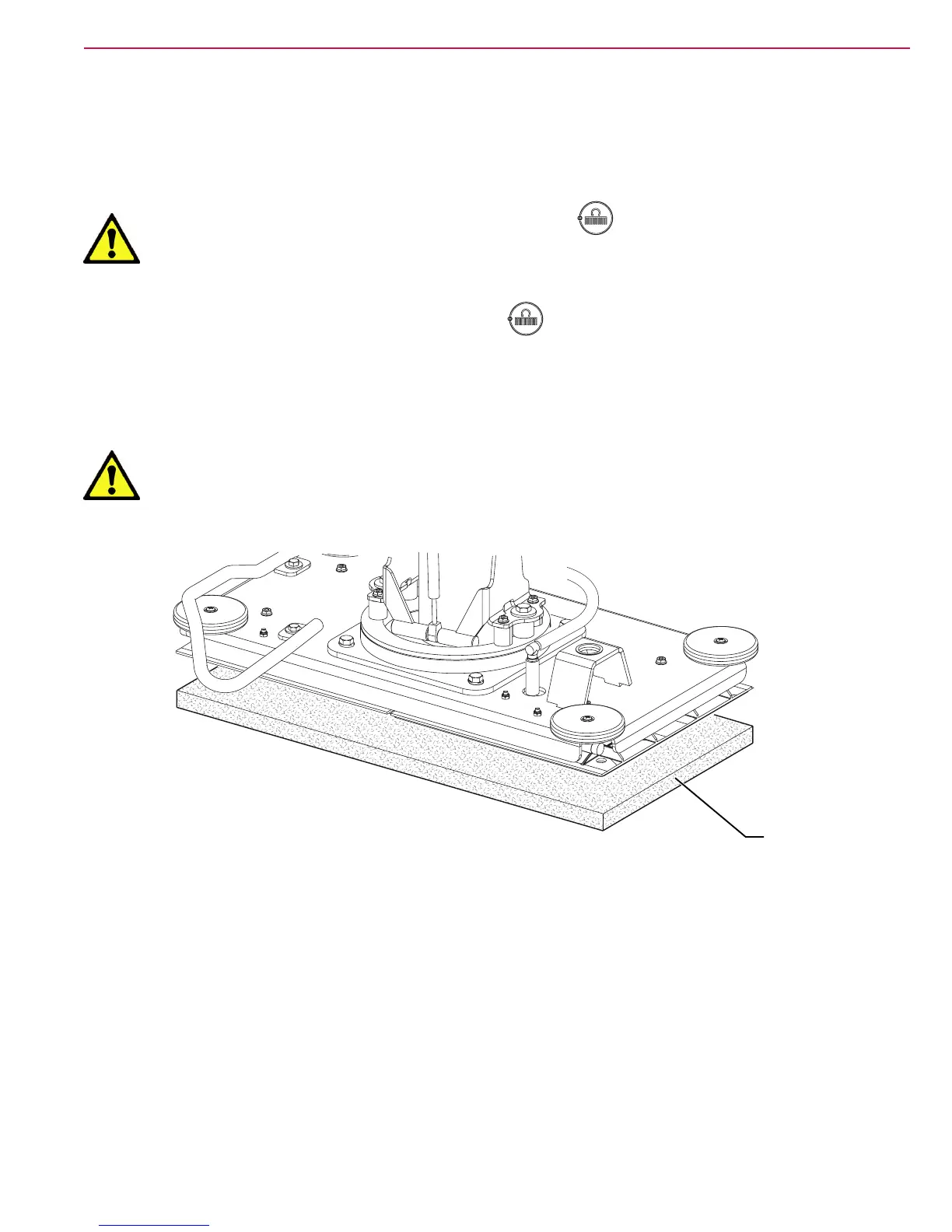

Brush/pad-holder installation/removal
1. Insert the ignition key and turn it to “I”.
Warning! Before pressing the scrub On/Off push button , always check that, between the
deck and the machine there is no foreign material which may prevent the deck from
lifting.
2. Lift the deck by pressing the scrub On/Off push button .
3. Turn the ignition key to “0”.
4. Install the pad (A) so that it engages the plates on the BOOST® deck.
5. To remove the pad perform steps 1 to 3, then manually release the pad from the deck plate
Warning! If the machine is not perfectly assembled it can cause damages to people and
properties. Always check that all components are assembled before starting the
machine. Carefully inspect the machine before using it.
A
P100738
