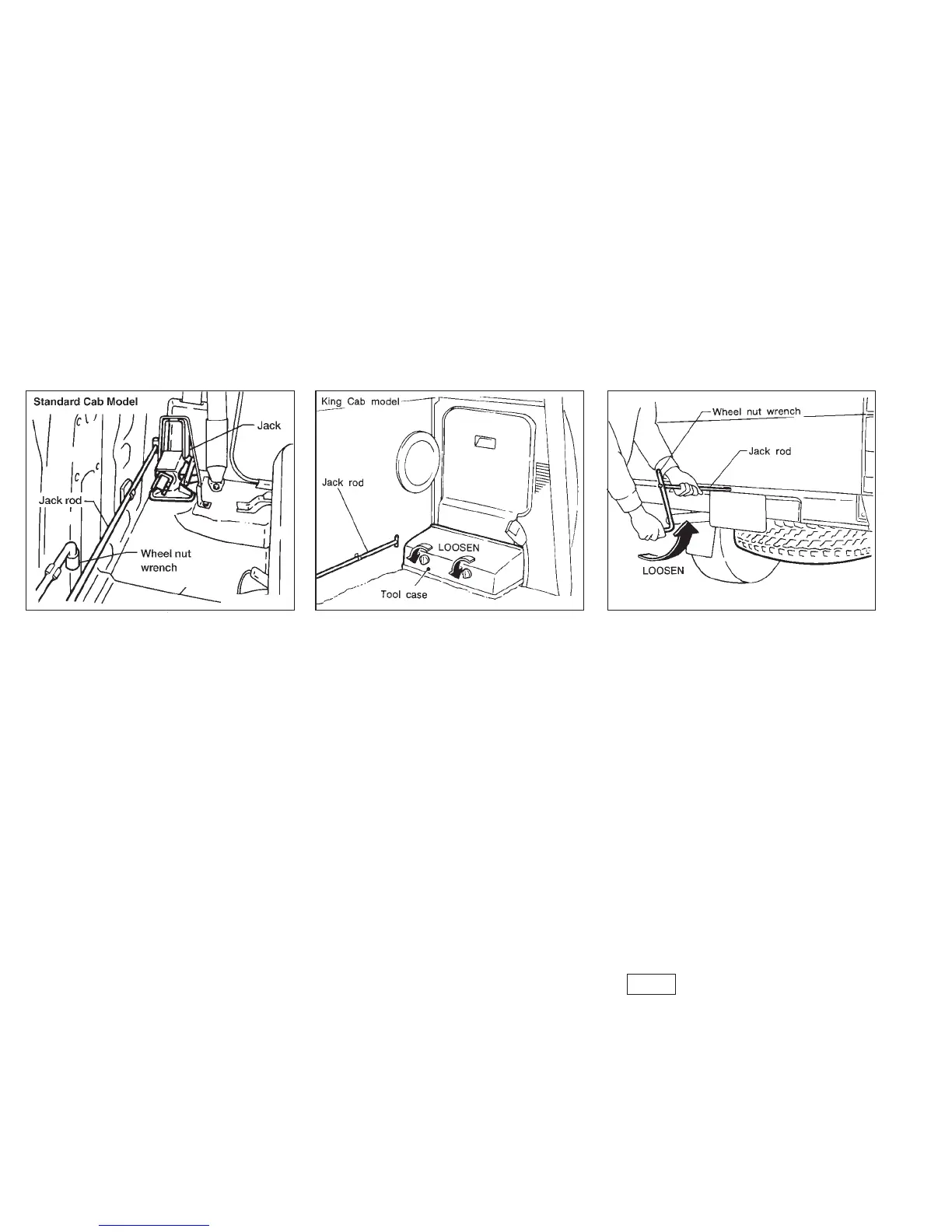

Getting the spare tire and tools
1. For King Cab models:
a. Move the driver’s seat back fully for-
ward.
b. Remove the jack and wheel nut
wrench from the tool case from be-
hind the driver’s seat.
c. Remove the jack rod from behind the
driver’s seat.
For standard cab models:
a. Move the bench seat back fully for-
ward.
b. Remove the jack and jack rod from
behind the driver’s side of the bench
seat.
c. Remove the wheel nut wrench from
behind the passenger’s side of the
bench seat.
2. Fit the square end of the jack rod into the
square hole of the wheel nut wrench to
form a handle.
3. Find the oval shaped opening under the
middle of the tailgate. Pass the T-shaped
end of the jack rod through the opening
and direct it towards the spare tire winch,
located directly above the spare tire.
4. Seat the T-shaped end of the jack rod
into the T-shaped opening of the spare
tire winch, and turn the jack rod counter-
clockwise to lower the spare tire.
5. Once the spare tire is completely low-
ered, reach under the vehicle, remove
the retainer chain, and carefully slide the
tire from under the rear of the vehicle.
