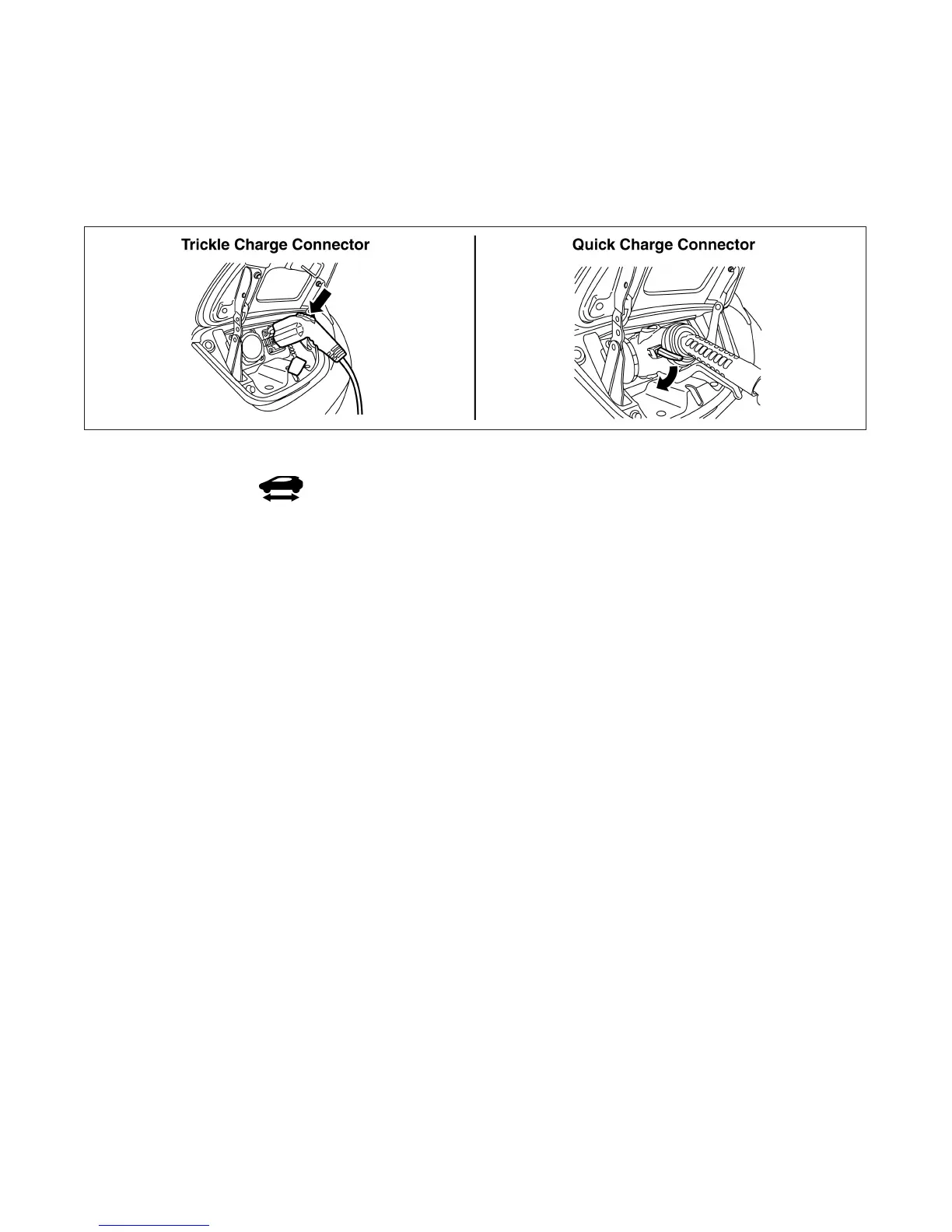

Removing the Charge Connector
1. Press the lock release button/lever on the charge connector.
NOTE:
The quick charge connector is not equipped on all models.
2. Pull the charge connector to remove it.
Indications the High Voltage System is ON
1. If the READY
indicator is ON, the high voltage system is active.
2. If the charge indicator is ON, the high voltage system is active.
3. If the air conditioning remote timer indicator (located on the HVAC controller) is ON, the high
voltage system is active.
4. If the remote controlled climate control system is active, push the power switch to the ON
position. This will turn OFF the remote controlled climate control system.
NOTE:
Remote controlled climate control system is a feature that allows the vehicle owner
to activate the climate control system via telematics communication (cell phone,
personal computer, etc.). When this system is active, the air conditioning remote
timer indicator (located on the HVAC controller) is illuminated.
Before disconnecting the 12V battery terminal, if necessary, set the parking brake, lower the windows,
unlock the doors, and open the rear hatch as required. Once 12V battery is disconnected, power controls
will not operate.
Powering Down the High Voltage System
The high voltage system can be shut down with any 1 of the following procedures:
• Turn OFF the power switch and disconnect the 12V battery. Refer to
Primary Procedure.
•
Remove the fuses for the high voltage control system and disconnect the 12V battery. Refer to
Alternate Procedure 1.
• Remove the service plug and disconnect the 12V battery. Refer to Alternate Procedure 2.
