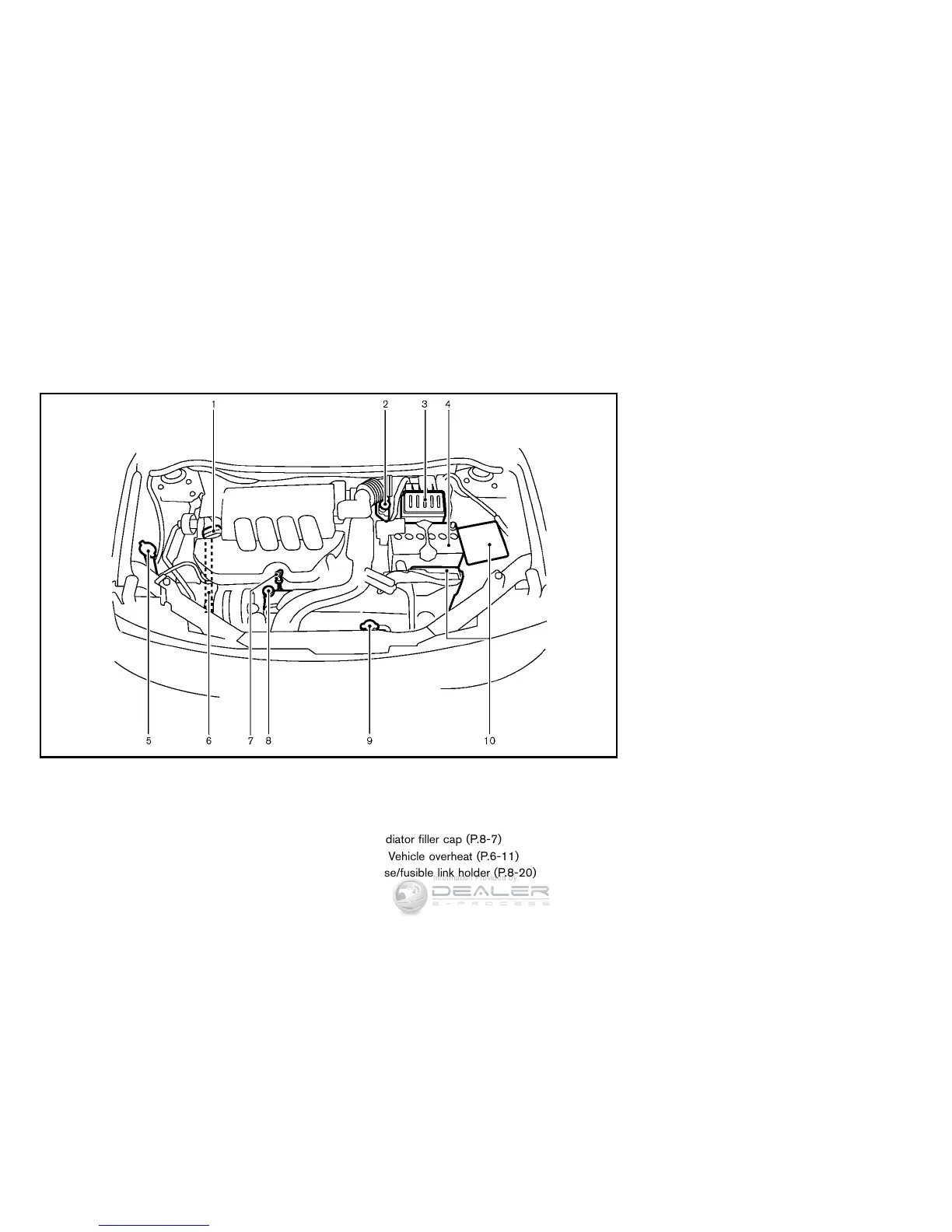

SSI0564
MR18DE ENGINE*
1. Engine oil filler cap (P.8-9)
2. Brake and clutch (*1) fluid reservoir (P.8-12)
3. Air cleaner (P.8-17)
4. Battery (P.8-13)
— Jump starting (P.6-9)
5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-9)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-11)
10. Fuse/fusible link holder (P.8-20)
* Shown with the resonator removed. For removal
instructions, see “Engine compartment check
locations” (P.8-6).
*1: for Manual Transmission (MT) models
Illustrated table of contents 0-9
ENGINE COMPARTMENT
