8-14 Maintenance and do-it-yourself
. When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after
handling.
. Keep the battery out of the reach of
children.
DI0137MA

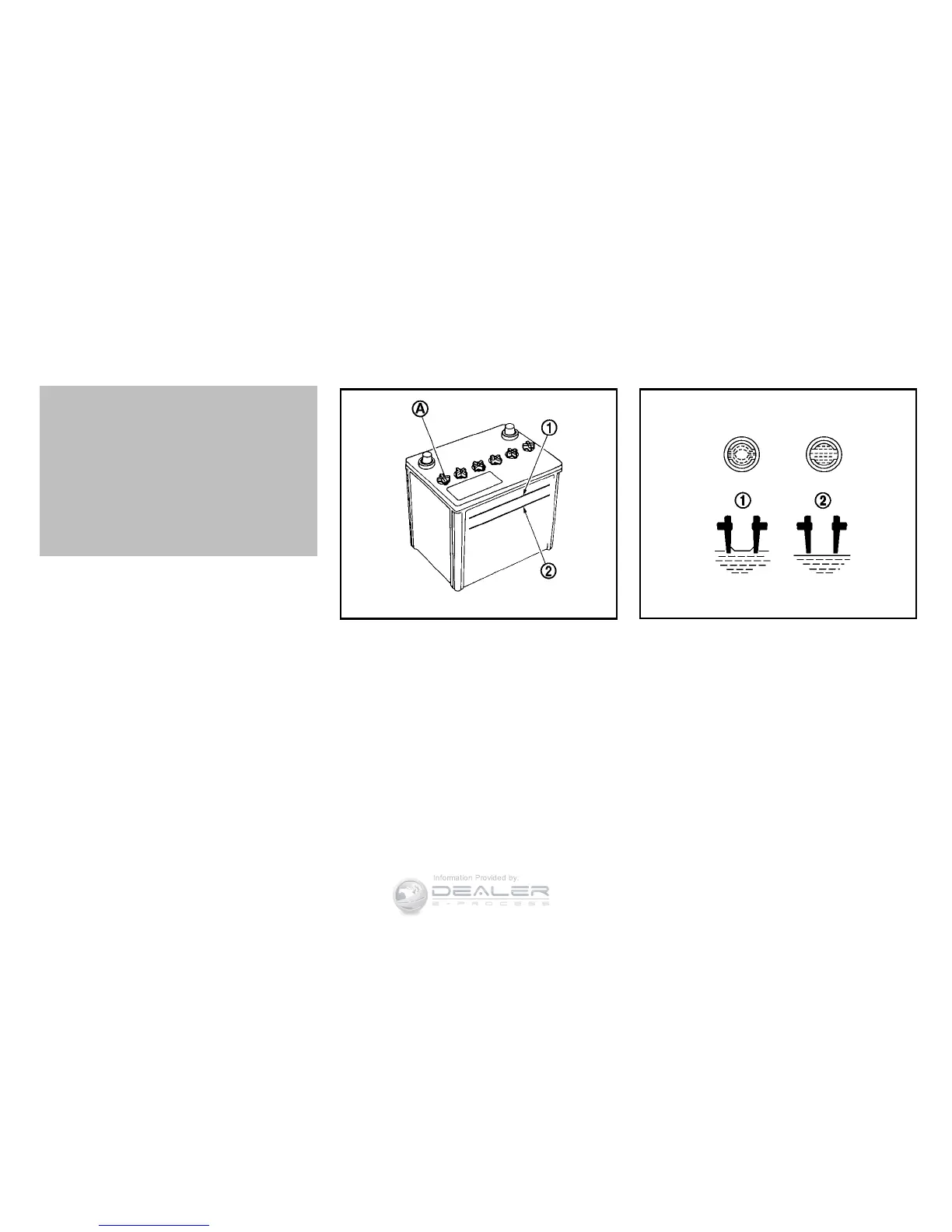

Check the fluid level in each cell. It should be
between the UPPER LEVEL
*
1
and LOWER
LEVEL
*
2
lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.
SDI1480C
1. Remove the cell plugs
*
A
.
2. Add distilled water up to the UPPER LEVEL
*
1
line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
*
1
indicates
OK and the condition
*
2
needs more to be
added.
3. Tighten cell plugs
*
A
.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
