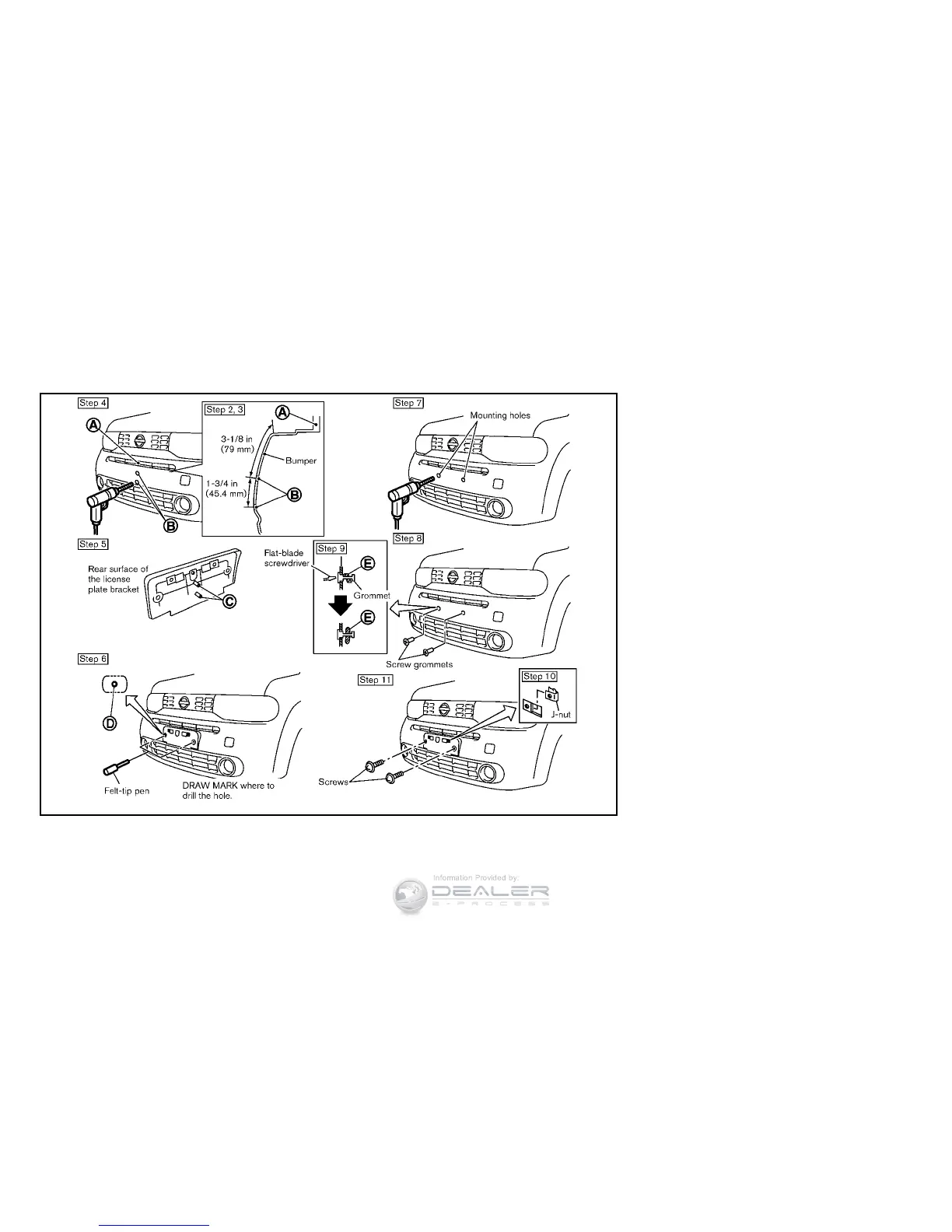

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
. License plate bracket
. J-nut 6 2
. Screw 6 2
. Screw grommet 6 2
1. Park the vehicle on flat, level ground.
2. Locate the center position
*
A
on the lower
part of the air duct. Measure straight down
from the edge where the bumper and air
duct meet to the aligning holes
*
B
, keeping
the tape measure lined up with the center
position.
3. Mark the holes
*
B
with a felt-tip pen.
4. Carefully drill the two aligning holes
*
B
using a 0.39 in (10 mm) drill bit at the
marked locations. (Be sure that the drill
only goes through the bumper fascia.)
5. Line up the bosses
*
C
or license plate
bracket with the holes and hold the license
plate bracket in place.
6. Mark the center of the holes
*
D
with a felt-
tip pen.
Technical and consumer information 9-11
INSTALLING FRONT LICENSE PLATE
