Replacement procedures

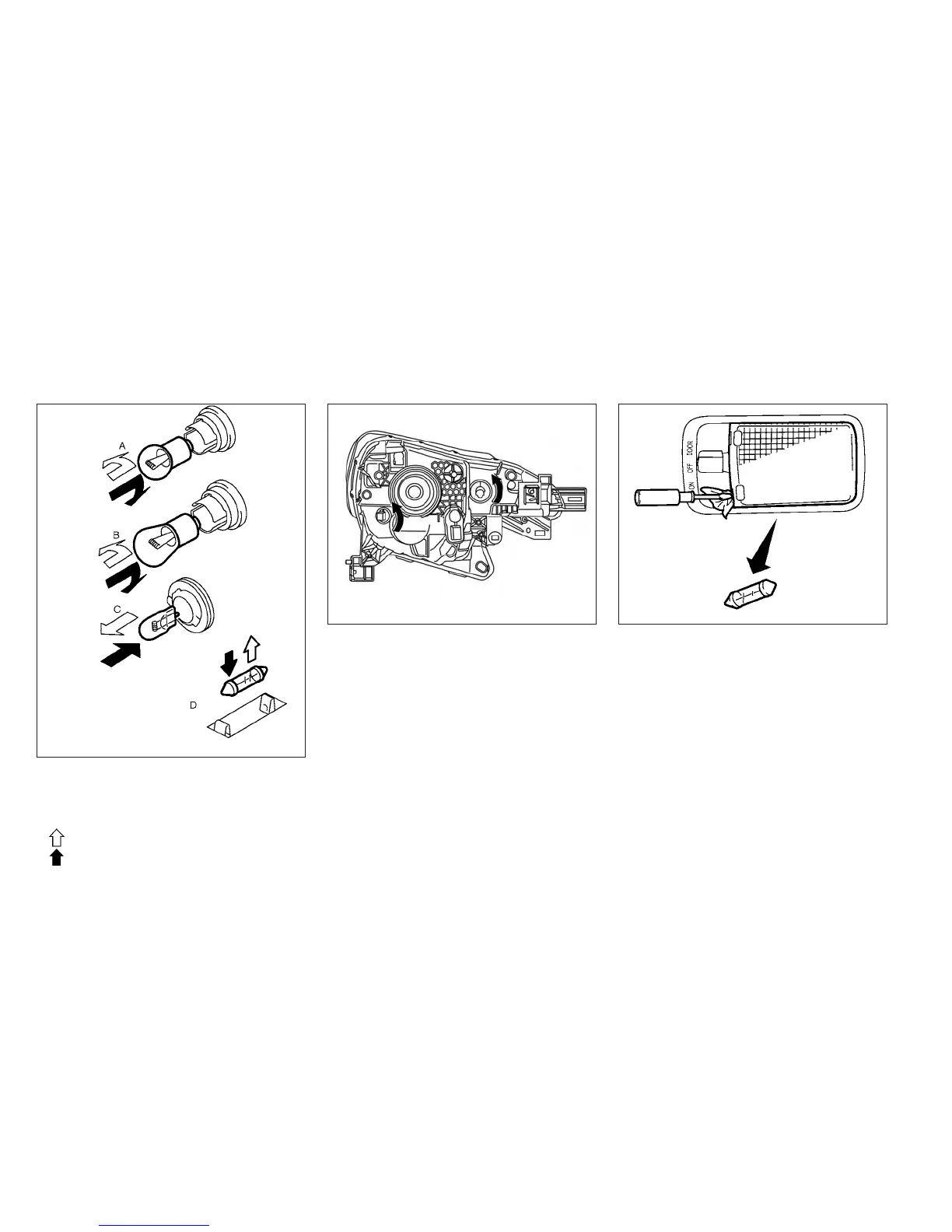

All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installation
To change the stop/tail, rear turn signal or backup
(reversing) light bulb, perform the following:
1. Disconnect the battery negative cable.
2. Disconnect the electrical connector from the
rear end of the bulb.
3. Remove the bulb(s) and replace as neces-
sary.
Use a cloth to protect the housing.
SDI1805
Clearance/ turn signal lights
LDI2239
Interior light
SDI1499A
8-28 Maintenance and do-it-yourself
