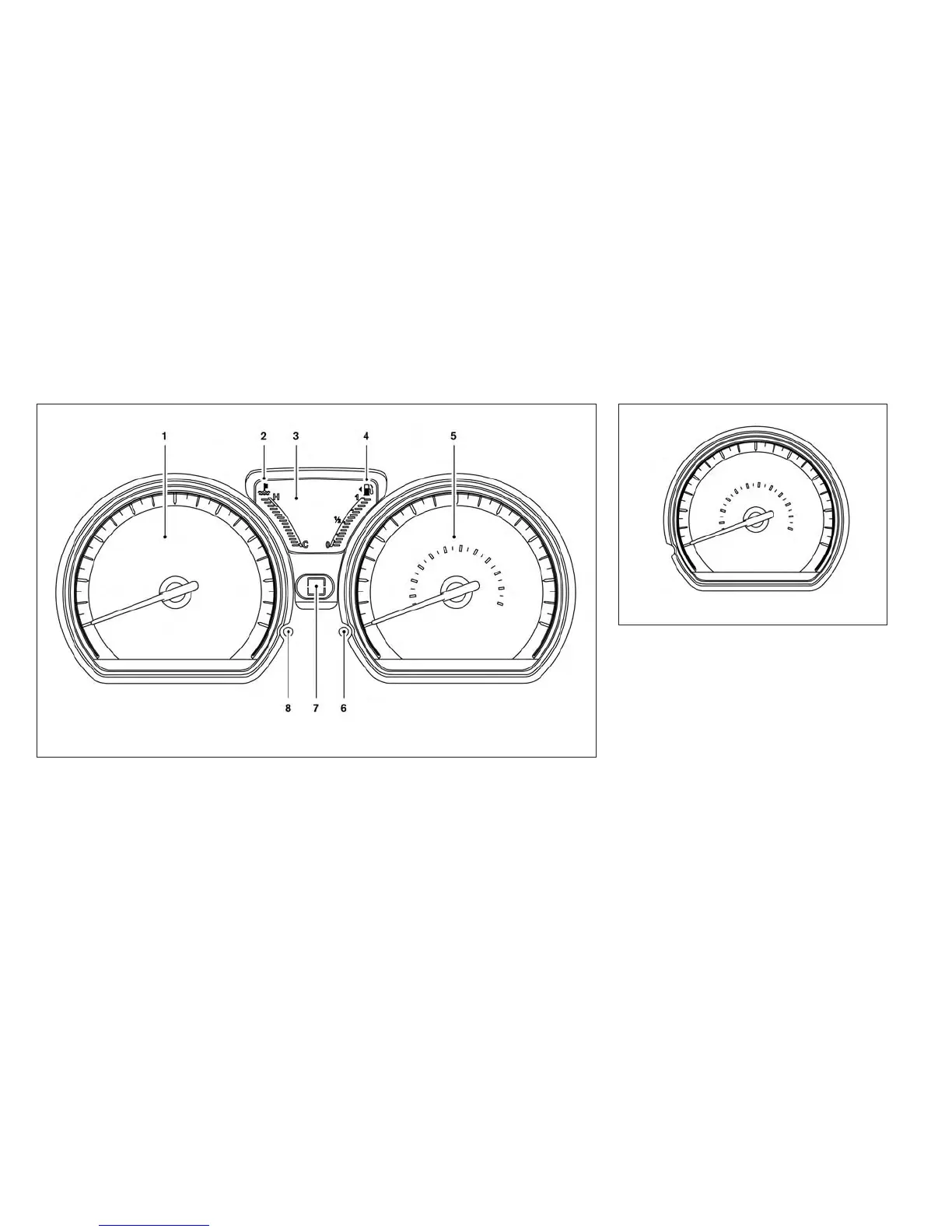

1. Tachometer
2. Temperature gauge
3. Odometer/twin trip odometer/trip
computer
4. Fuel gauge
5. Speedometer
6. Trip odometer reset switch/trip
computer mode
7. Continuously Variable Transmission
(CVT) / Manual Transmission shift
indicator position indicator
8. Instrument brightness control
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
LIC2146
LIC2136
METERS AND GAUGES
Instruments and controls 2-3
