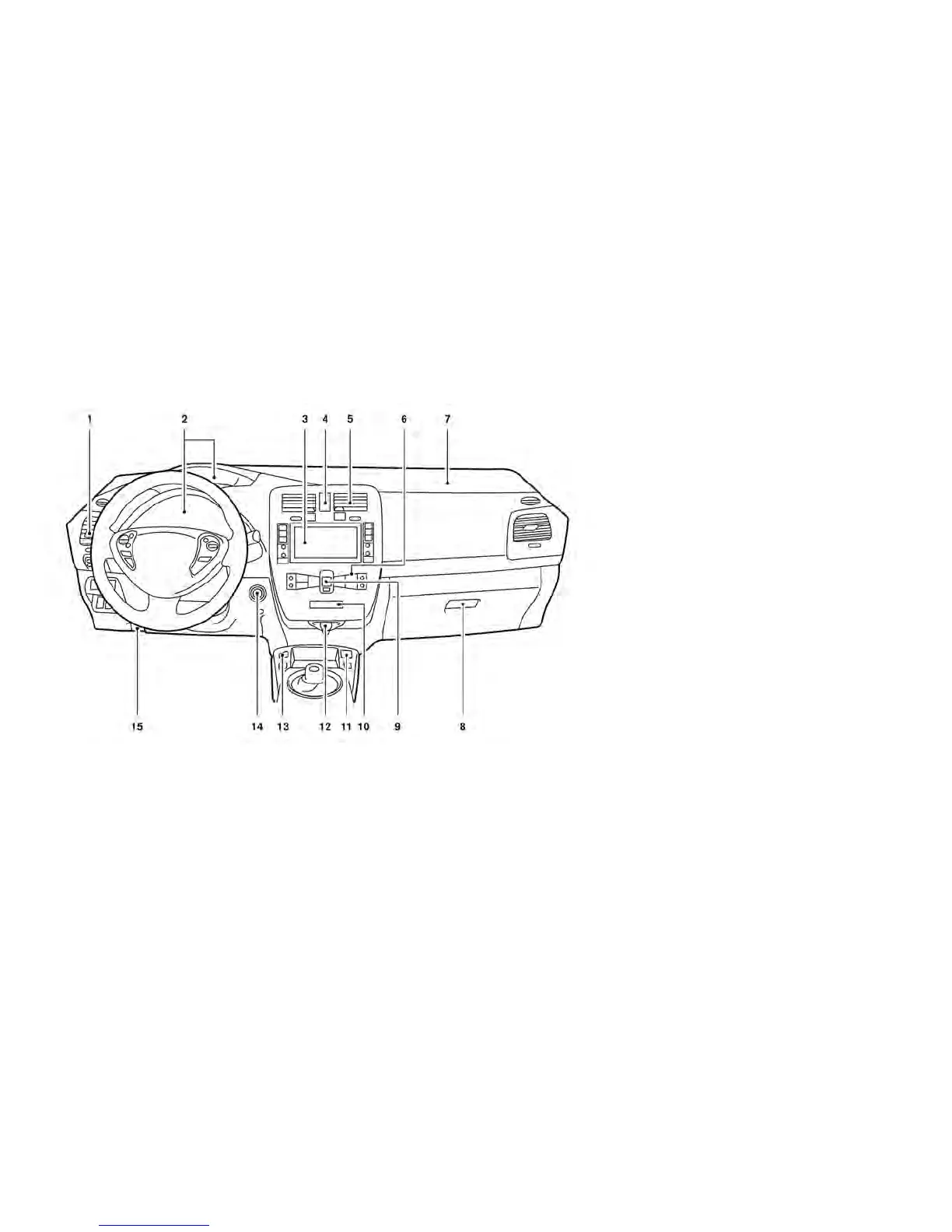

Nissan 2016 Leaf - INSTRUMENT PANEL; INSTRUMENT PANEL Components

1. Side vents (P. 4-22)
2. Meters and gauges (P. 2-5)
3. Center multi-function control panel
— Navigation system (Refer to LEAF Naviga-
tion System Owner’s Manual)
— Without navigation system (P. 4-38)
4. Hazard warning flasher switch (P. 6-2)
5. Center vents (P. 4-21)
6. Rear window defroster switch (P. 2-41)
7. Front passenger supplemental air bag
(P. 1-38)
8. Glove box (P. 2-51)
9. Front passenger air bag status light, Ap-
proaching Vehicle Sound for Pedestrians
(VSP) system warning light (P. 1-38, 2-14)
10. Auxiliary input jack (P. 4-38)
11. Power outlet (P. 2-50)
12. Heater and air conditioner control
(P. 4-22 )
13. iPod® connector/USB connector
(P. 4-38)
14. Push-button power switch (P. 5-7)
15. Hood release handle (P. 3-17)
INSTRUMENT PANEL
2-4 Instruments and controls
