Nissan 2016 Leaf - METERS AND GAUGES; METERS AND GAUGES Displays

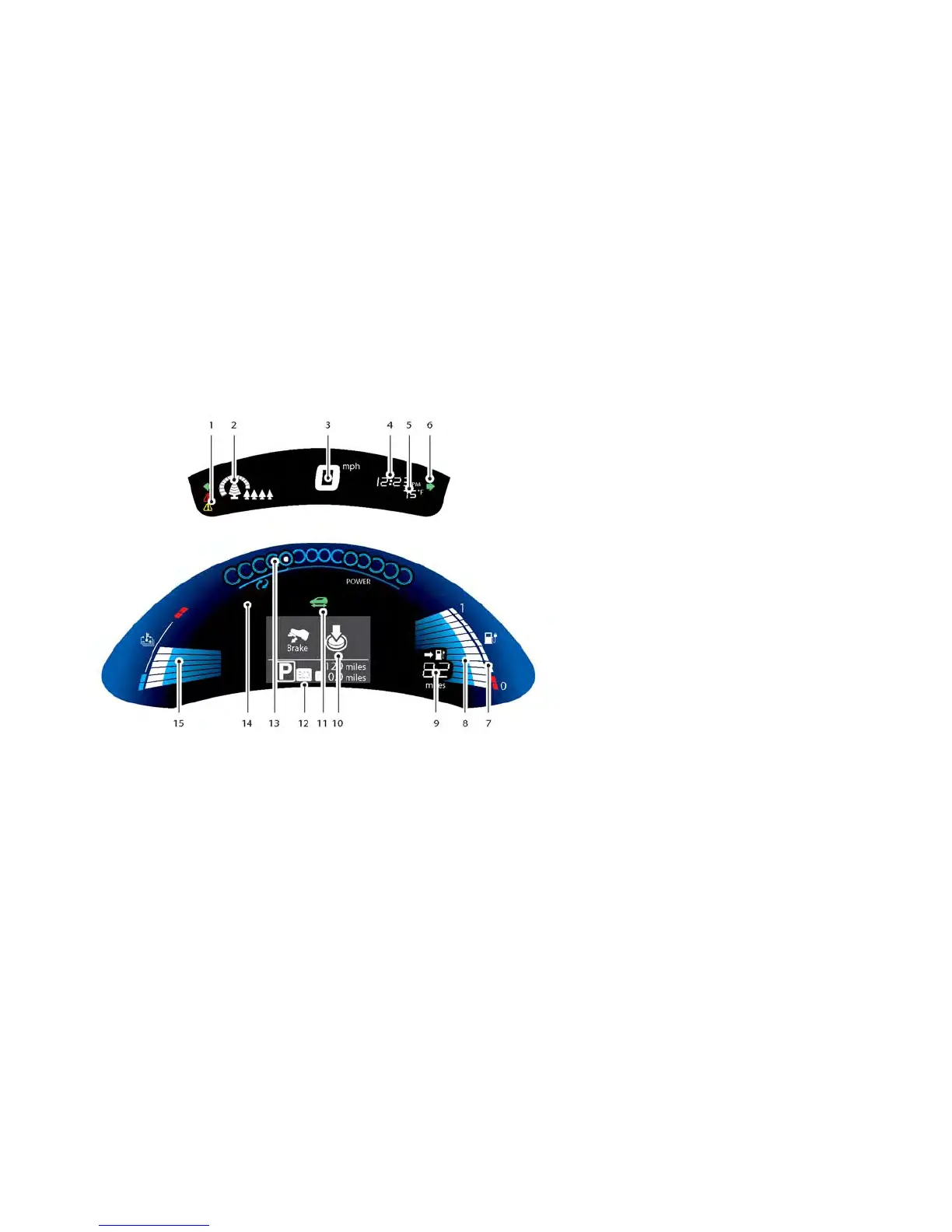

This vehicle is equipped with an upper display
and a lower display.
1. Master warning lights (P. 2-18)
2. ECO indicator (P. 2-10)
3. Speedometer (P. 2-6)
4. Clock (P. 2-11)
5. Outside air temperature (P. 2-10)
6. Turn signal/Hazard indicator light (P. 2-21)
7. Li-ion battery capacity level gauge (P. 2-10)
8. Li-ion battery available charge gauge
(P. 2-9)
9. Driving range (P. 2-8)
10. Vehicle information display (P. 2-22)
11. READY to drive indicator light (P. 2-20)
12. ECO mode indicator light
—ECO switch (P. 2-47)
— Odometer/twin trip odometer (P. 2-6)
— Trip computer (P. 2-27)
— Shift “P” warning (P. 2-26)
— Indicator for timer (P. 2-35)
13. Power meter (P. 2-7)
14. Warning and indicator lights (P. 2-12)
15. Li-ion battery temperature gauge (P. 2-6)
METERS AND GAUGES
Illustrated table of contents 0-9
