HOW TO READ THE DISPLAYED
LINES

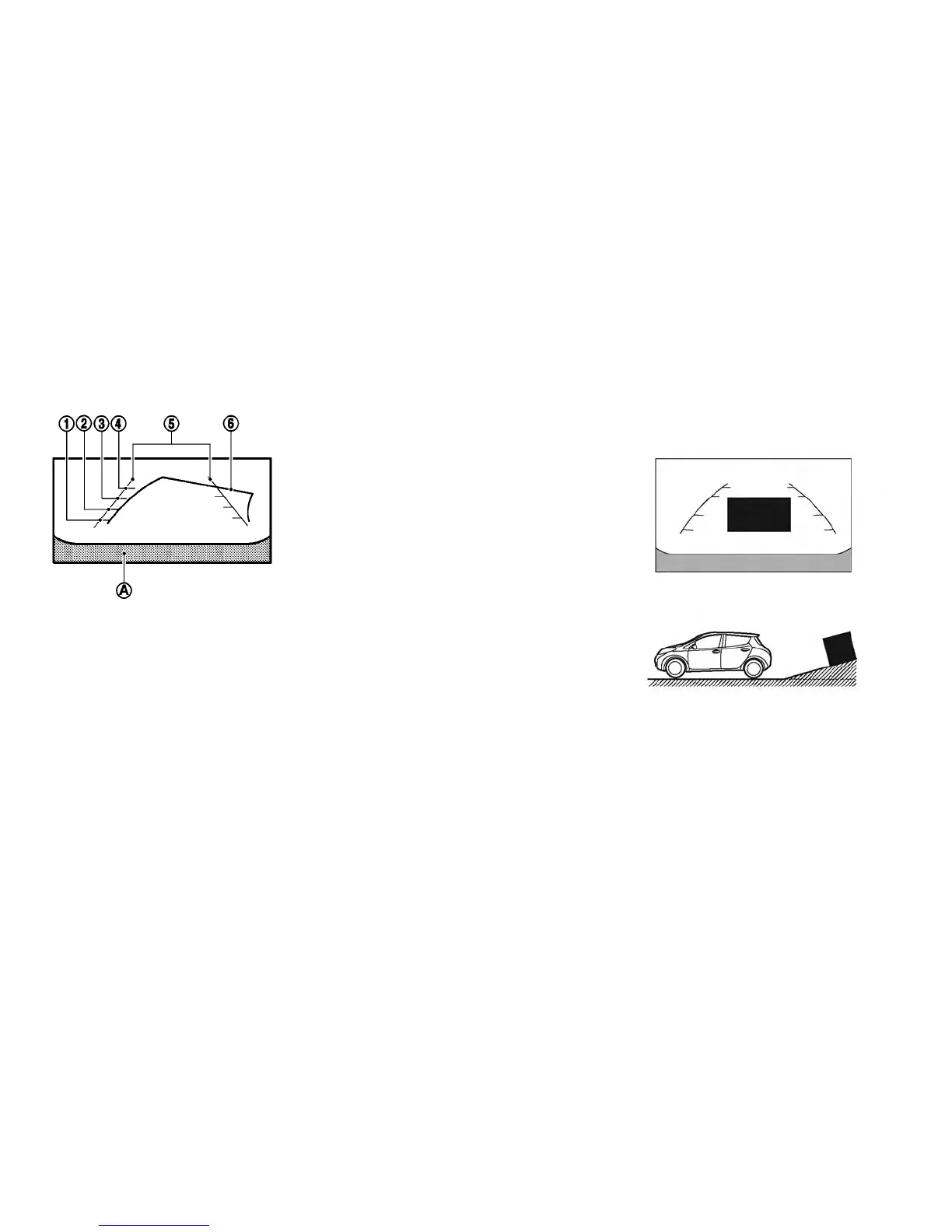

Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
䊊
A
are displayed on the monitor.
Distance guide lines
Indicate distances from the vehicle body.
• Red line
䊊
1
: approx. 1.5 ft (0.5 m)
• Yellow line
䊊
2
: approx. 3 ft (1 m )
• Green line
䊊
3
: approx. 7 ft (2 m)
• Green line
䊊
4
: approx. 10 ft (3 m )
Vehicle width guide lines
䊊
5
Indicate the vehicle width when backing up.
Predicted course lines (models with navi-
gation)
䊊
6
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the shift lever is in the R (Re-
verse) position and the steering wheel is turned.
The predicted course lines will move depending
on how much the steering wheel is turned and
will not be displayed while the steering wheel is in
the straight-ahead position.
The vehicle width guide lines and the width of the
predicted course lines are wider than the actual
width and course.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations on the
ground are for approximate reference only. Objects
on uphill or downhill surfaces or projecting objects
will be actually located at distances different from
those displayed in the monitor relative to the guide-
lines (refer to illustrations). When in doubt, turn
around and view the objects as you are backing up,
or park and exit the vehicle to view the positioning
of objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
Display screen, heater, air conditioner, audio and phone systems 4-5
