AIR CONDITIONER SPECIFICATION
LABEL

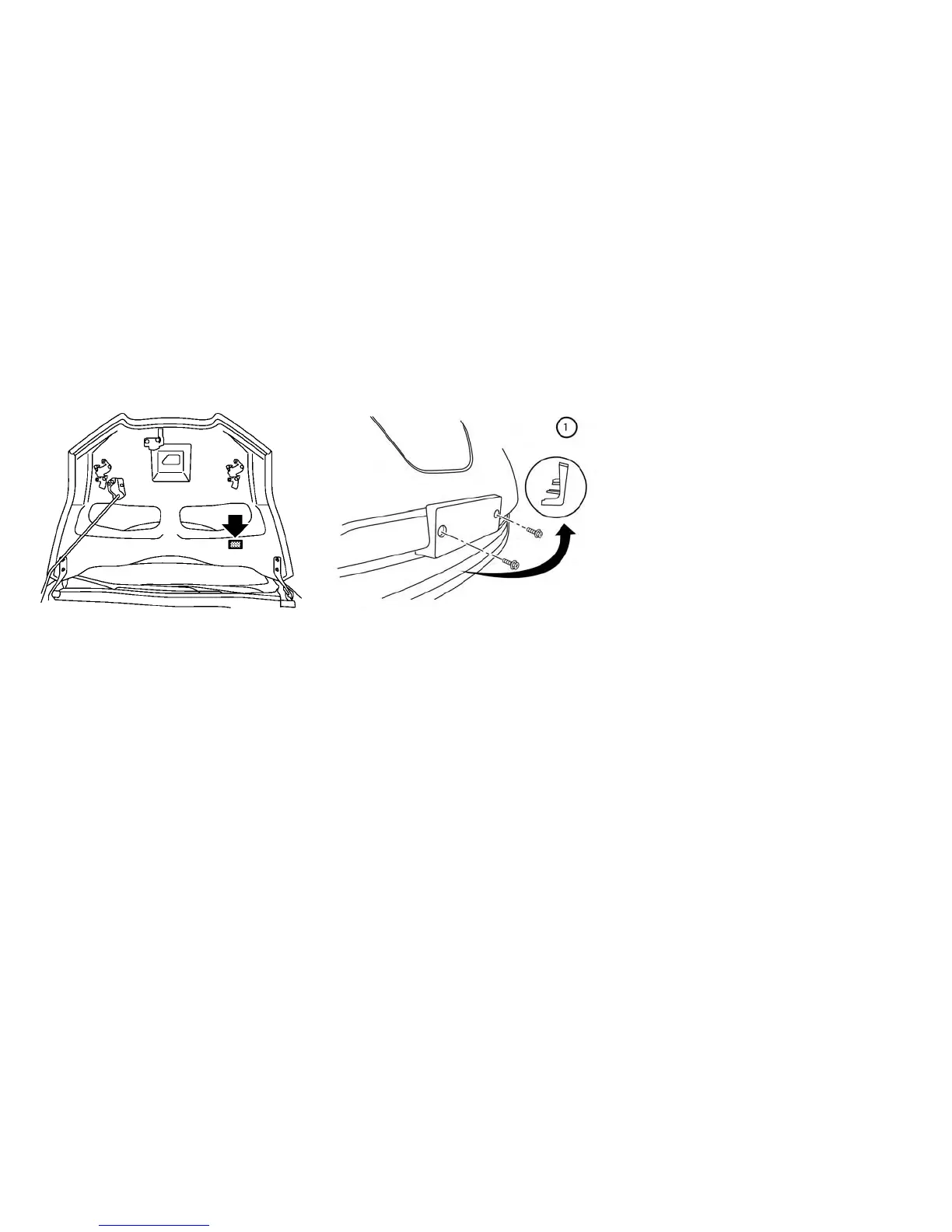

The air conditioner specification label is attached
to the underside of the hood as shown in the
illustration.
Perform the following procedure to mount the
license plate.
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
• License plate bracket
䊊
1
• Screw ×2
1. Adjust the license plate bracket
䊊
1
at the
location (small dimples).
2. To determine where to drill the hole, mark
along both sides of the mounting holes and
license plate screw holes using a felt-tip pen.
3. Remove the license plate bracket
䊊
1
and
connect the arcs from the ovals. Mark the
point in the center of each oval. These are
pilot drilling locations.
Use a 0.49 in (12.5 mm) drill bit for the license
plate screw holes and carefully open holes in
the places marked. (Make sure that the drill
only goes through the fascia.)
4. Install the license plate with two 0.23 in (6
mm) screws.
INSTALLING FRONT LICENSE PLATE
9-10 Technical and consumer information
