SERVICE DATA AND SPECIFICATIONS (SDS)
EM-133
< SERVICE DATA AND SPECIFICATIONS (SDS)
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O

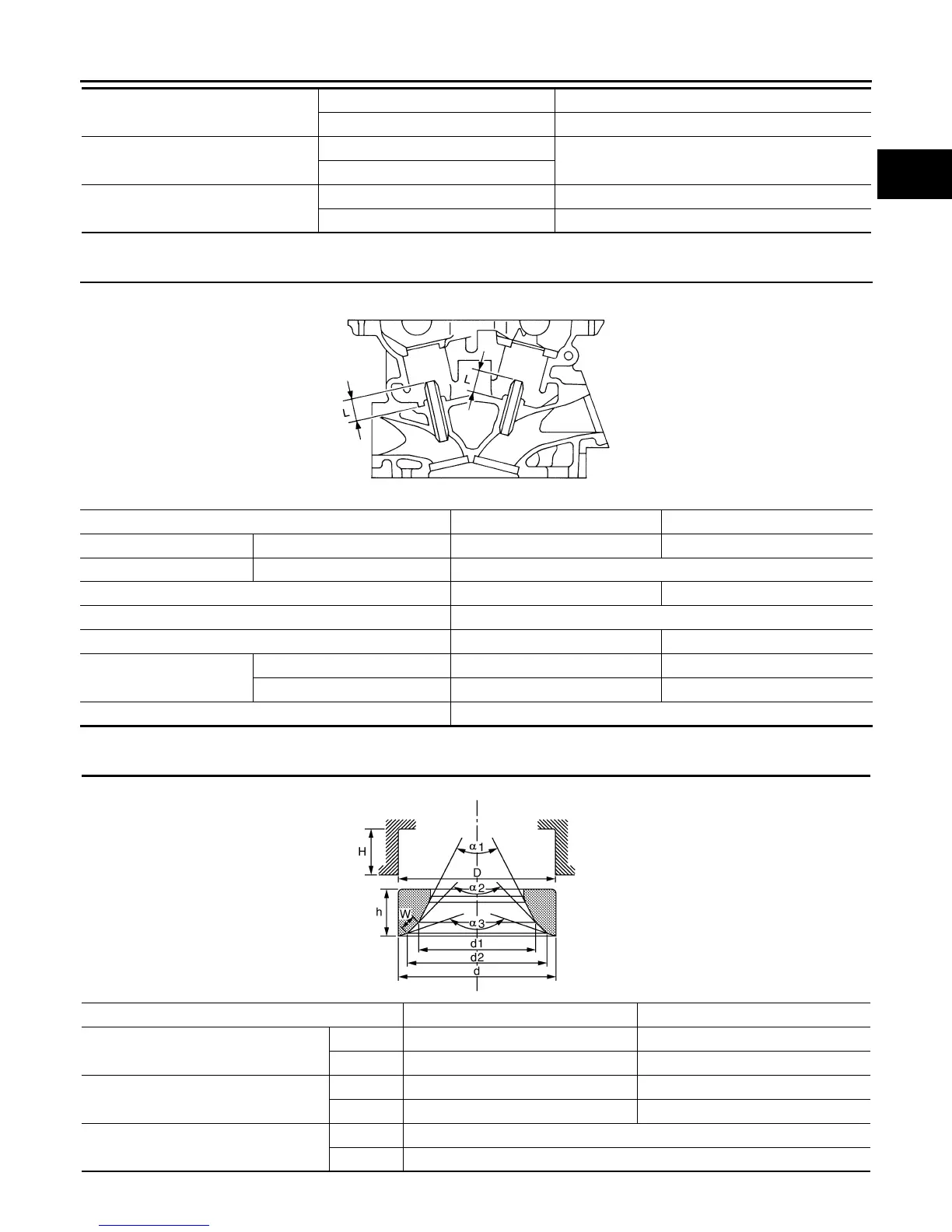

Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in)
Valve stem diameter (d)
Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.955 - 5.970 (0.2344 - 0.2350)
Valve seat angle (α
Intake
45°15′ - 45°45′
Exhaust
Valve margin (T)
Intake 1.1 (0.043)
Exhaust 1.3 (0.051)
Items Standard 0.2 (0.008) oversize (Service)
Valve guide Outer diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023)
Items Standard Limit
Valve guide clearance
Intake 0.020 - 0.053 (0.0008 - 0.0021) 0.08 (0.003)
Exhaust 0.030 - 0.063 (0.0012 - 0.0025) 0.09 (0.004)
Projection length (L) 12.6 - 12.8 (0.496 - 0.504)
SEM950E
Items Standard Oversize [0.5 (0.020)] (Service)
Cylinder head seat recess diameter (D)
Intake 38.000 - 38.016 (1.4961 - 1.4967) 38.500 - 38.516 (1.5157 - 1.5164)
Exhaust 32.200 - 32.216 (1.2677 - 1.2683) 32.700 - 32.716 (1.2874 - 1.2880)
Valve seat outer diameter (d)
Intake 38.097 - 38.113 (1.4999 - 1.5005) 38.597 - 38.613 (1.5196 - 1.5202)
Exhaust 32.280 - 32.296 (1.2709 - 1.2715) 32.780 - 32.796 (1.2905 - 1.2912)
Valve seat interference fit
Intake 0.081 - 0.113 (0.0032 - 0.0044)
Exhaust 0.064 - 0.096 (0.0025 - 0.0038)
PBIC2745E
