< SERVICE DATA AND SPECIFICATIONS (SDS)
[VQ40DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Unit: mm (in)
Piston Pin
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
CONNECTING ROD
Unit: mm (in)
1
: Always check with the Parts Department for the latest parts information.
2
: After installing in connecting rod

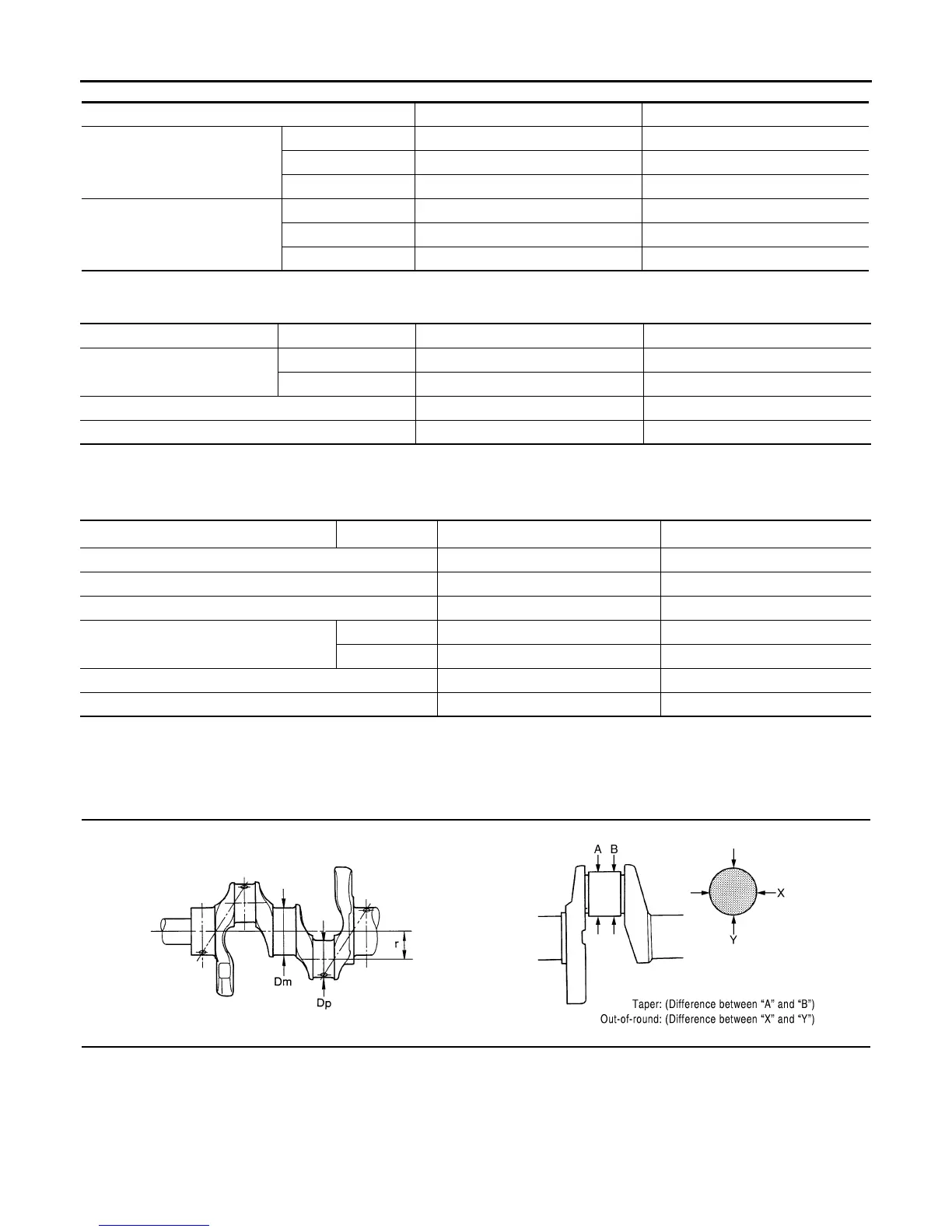

CRANKSHAFT
Unit: mm (in)
Items Standard Limit
Side clearance
Top 0.045 - 0.080 (0.0018 - 0.0031) 0.11 (0.0043)
2nd 0.030 - 0.070 (0.0012 - 0.0028) 0.10 (0.0039)
Oil ring 0.065 - 0.135 (0.0026 - 0.0053) —
End gap
Top 0.23 - 0.33 (0.0091 - 0.0130) 0.56 (0.0220)
2nd 0.33 - 0.48 (0.0130 - 0.0189) 0.68 (0.0268)
Oil (rail ring) 0.20 - 0.50 (0.0079 - 0.0197) 0.85 (0.0335)
Items Grade* Standard Limit
Piston pin outer diameter
Grade No. 0 21.989 - 21.995 (0.8657 - 0.8659) —
Grade No. 1 21.995 - 22.001 (0.8659 - 0.8662) —
Piston to piston pin oil clearance 0.002 - 0.006 (0.0001 - 0.0002) —
Connecting rod bushing oil clearance 0.005 - 0.017 (0.0002 - 0.0007) 0.030 (0.0012)
Items
Grade
1
Standard Limit
Center distance 165.82 - 165.92 (6.5283 - 6.5323) —
Bend [per 100 (3.94)] — 0.15 (0.0059)
Torsion [per 100 (3.94)] — 0.30 (0.0118)
Connecting rod bushing inner diameter
2
Grade No. 0 22.000 - 22.006 (0.8661 - 0.8664) —
Grade No. 1 22.006 - 22.012 (0.8664 - 0.8666) —
Connecting rod big end diameter (Without bearing) 57.000 - 57.013 (2.2441 - 2.2446) —
Side clearance 0.20 - 0.35 (0.0079 - 0.0138) 40 (0.0157)
