UNIT REMOVAL AND INSTALLATION
ENGINE ASSEMBLY
Exploded View INFOID:0000000008799001
Removal and Installation INFOID:0000000008799002
WARNING:
• Situate vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• For engines not equipped with engine slingers, attach proper slingers and bolts described in PARTS
CATALOG.

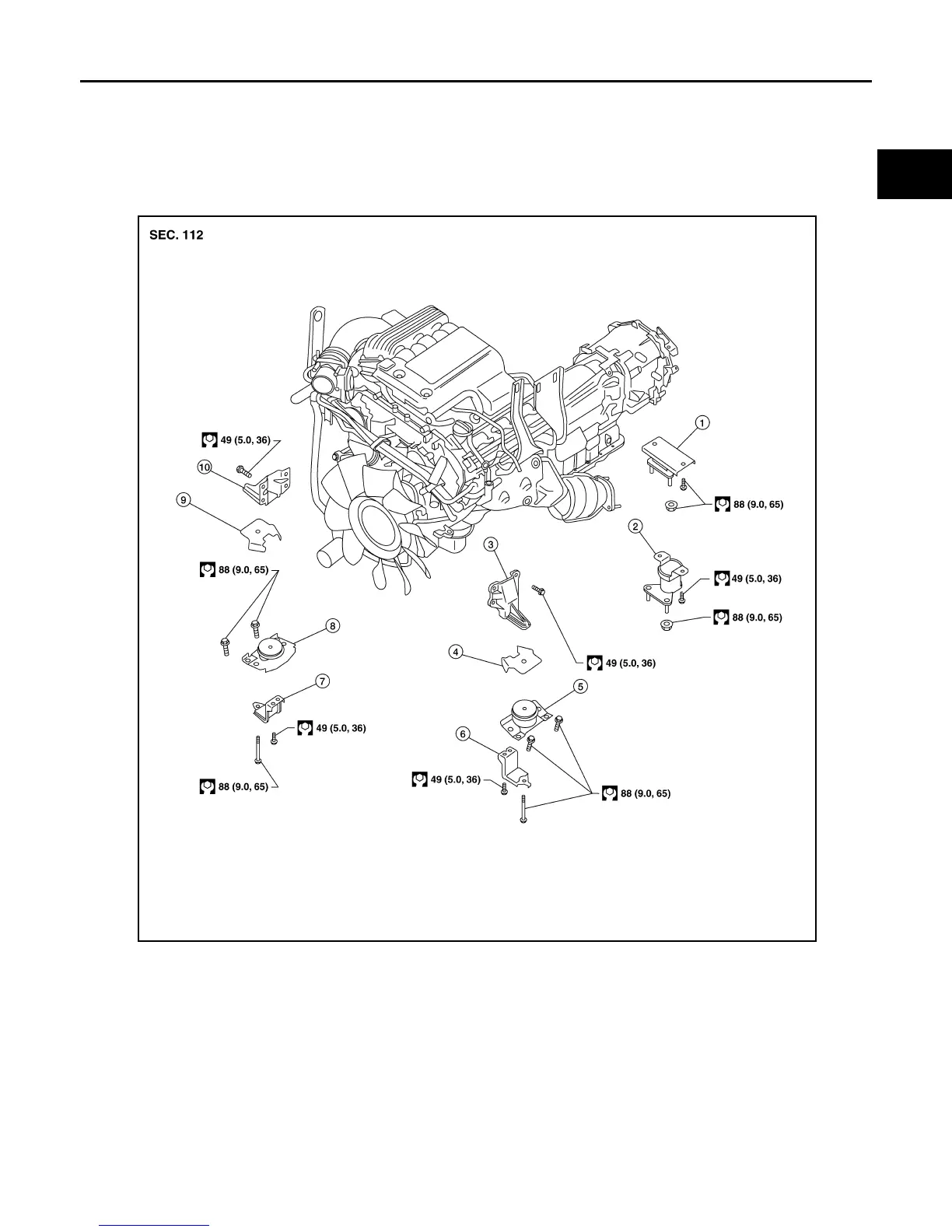

1. Rear engine mounting insulator 4WD 2. Rear engine mounting insulator 2WD 3. LH engine mounting bracket (upper)
4. LH heat shield plate 5. LH engine mounting insulator 6. LH engine mounting bracket (lower)
7. RH engine mounting bracket (lower) 8. RH engine mounting insulator 9. RH heat shield plate
10. RH engine mounting bracket (upper)
AWBIA0721GB
