[ Edit: 2015/ 7/ 9 Model: F15-D ]

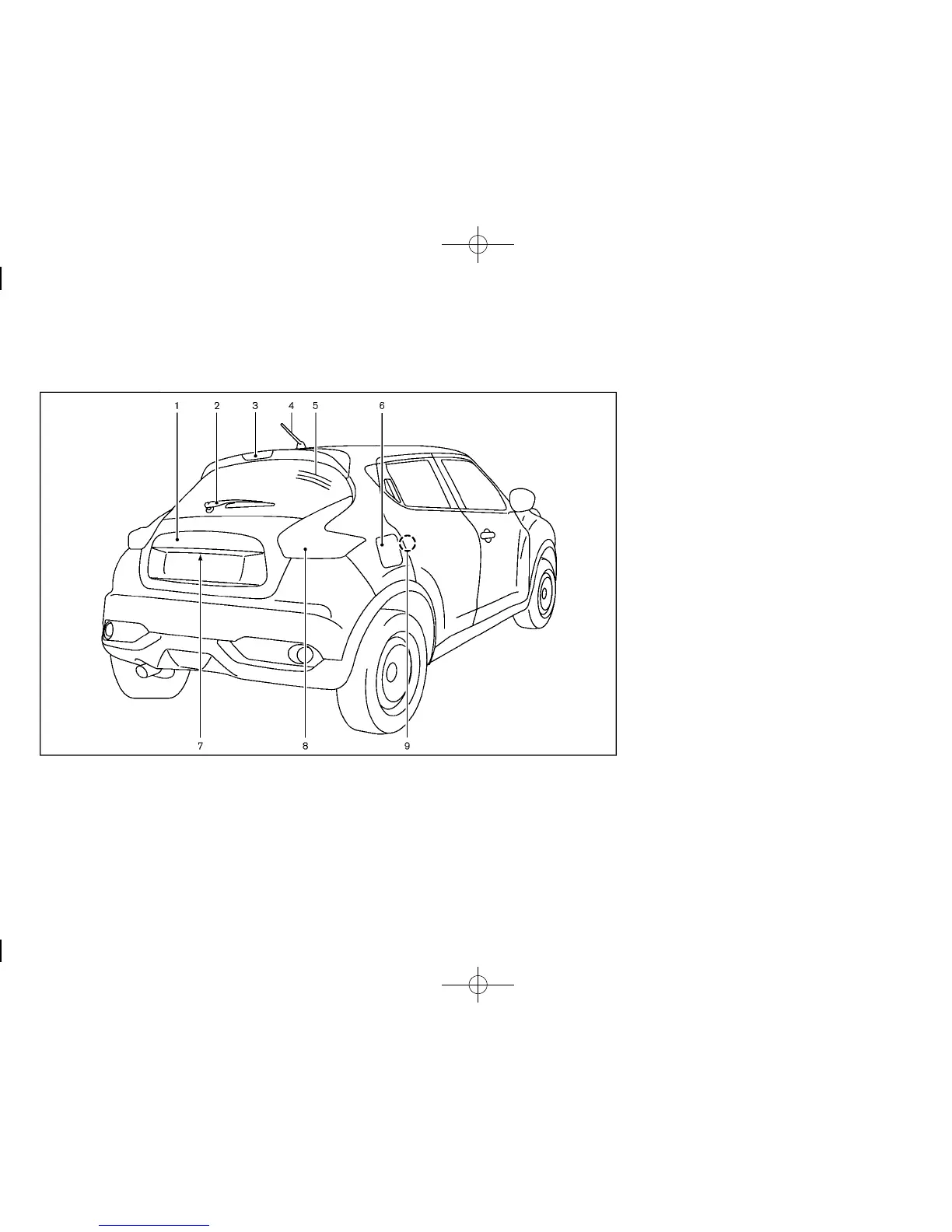

0-4 Illustrated table of contents
GUID-CB027B35-0C4A-475A-B68D-3A7DA1020D00
JVC0745X
1. Lift gate (P.3-16)
— Intelligent Key system (P.3-6)
2. Rear window wiper and washer
— Switch operation (P.2-36)
— Window washer fluid (P.8-12)
3. High-mounted stop light (P.8-26)
4. Antenna (P.4-75)
— Satellite radio antenna* (P.4-35)
5. Rear window defroster (P.2-37)
6. Fuel-filler door
— Operation (P.3-18)
— Fuel information (P.9-4)
7. Rear view camera
— RearView Monitor* (P.4-8)
— Around View
®
Monitor* (P.4-13)
8. Rear combination lights
— Bulb replacement (P.8-29)
9. Child safety rear door lock (P.3-6)
*: if so equipped
EXTERIOR REAR
