[ Edit: 2015/ 7/ 9 Model: F15-D ]
GUID-8EBBE60D-ED28-4099-9931-95512256E0F1
JVC0747X

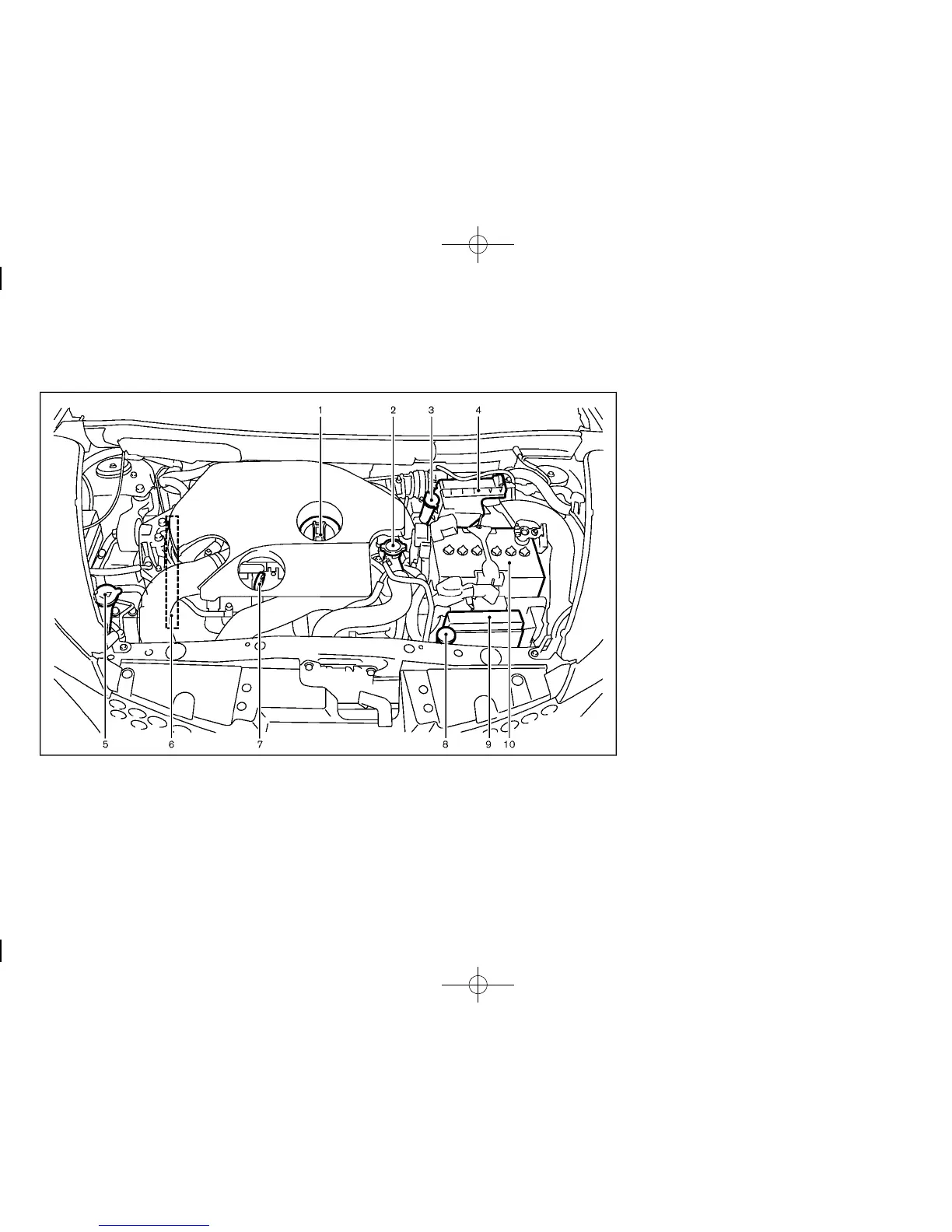

MR16DDT ENGINE
GUID-D335D9EC-1753-4C7F-815E-51D57D34351D
1. Engine oil filler cap (P.8-8)
2. Radiator filler cap (P.8-8)
— Vehicle overheat (P.6-11)
3. Brake and clutch* fluid reservoir (P.8-12)
4. Air cleaner (P.8-17)
5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-8)
8. Engine coolant reservoir (P.8-8)
9. Fuse/fusible link holder (P.8-20)
10. Battery (P.8-13)
— Jump starting (P.6-9)
*: for Manual Transmission (MT) models
Illustrated table of contents 0-11
ENGINE COMPARTMENT
