Vehicle width guide lines
*
5
:
Indicate the vehicle width when backing up.
DIFFERENCE BETWEEN PREDICTED
AND ACTUA L DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different than the
actual distance between the vehicle and dis-
played objects.
SAA1978

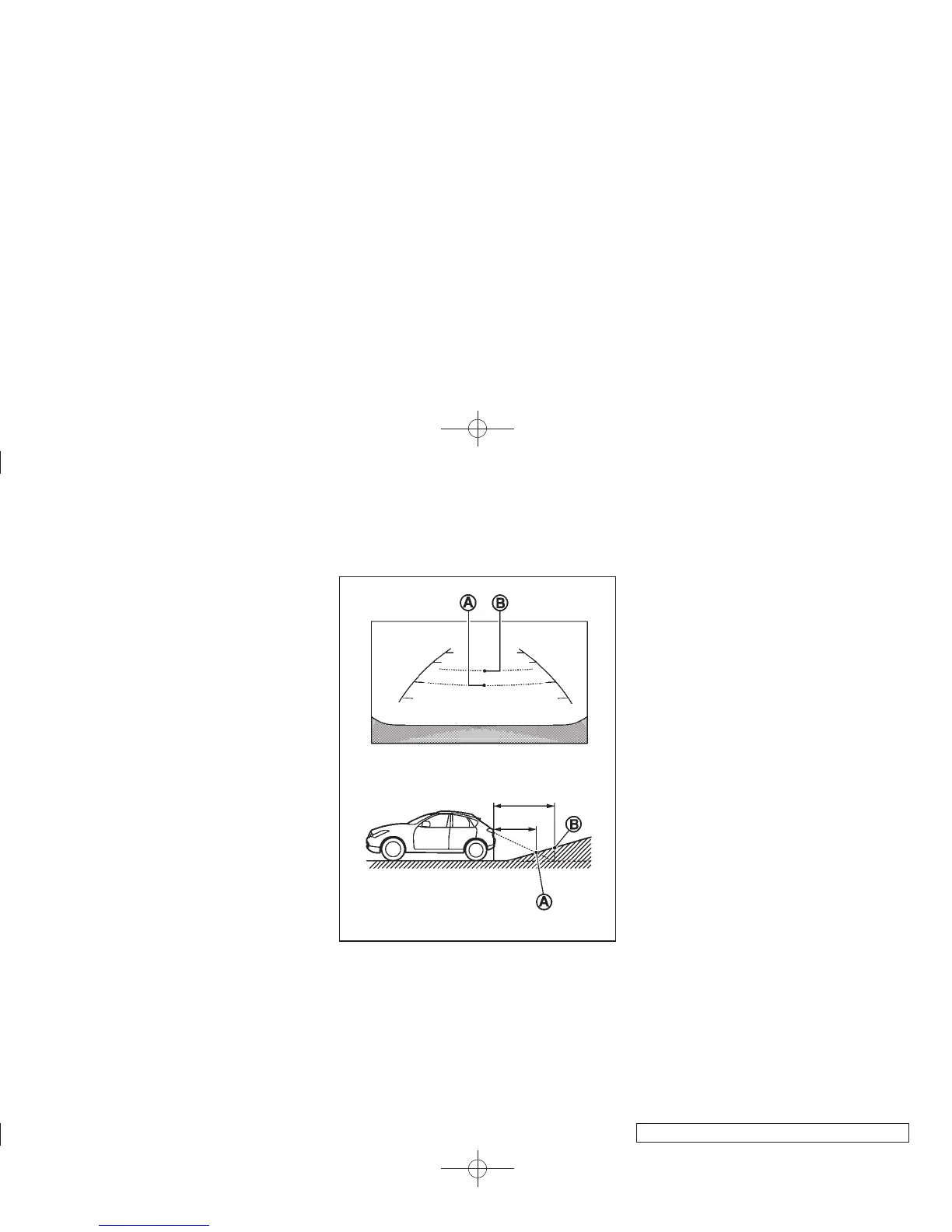

Backing up on a steep uphill
When backing up the vehicl e up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*
A
, but the actual 3 ft (1 m) distance on
the hill is the place
*
B
. Note that any object on
the hill is viewed in the monitor further than it
appears.
