— Air flows from the center and side
ventilators.
— Air flows from the center and side
ventilators and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster outlets and
foot outlets.
Temperature control:
Turn the temperature control dial to set the
preferred temperature.
The temperature range is between 608F (188C)
and 908F (328C).
Air recirculation:
Push the air intake button to change the air
circulation mode. Whe n the indicator light
illuminates, the flowing air is recirculated inside
the vehicle.
. When the
or position is selected,
the air recirculation mode cannot be turned
on to prevent the windows from being
fogged up.
Outside air circulation:
Push the air intake button to change the air
circulation mode. Whe n the indicator light
illuminates, the flowing air is drawn from outside
the vehicle.
Automatic air intake control:
Push and hold the outside air circulation “
”/
air recirculation “
” button for more than 1.5
seconds to set the automatic control between
the outside air circulation and air recirculation
modes.
When the “
”or“ ” position is selected,
the air recirculation mode does not activate.
When setting the automatic control mode, the
indicator lights “
” and “ ” will blink twice
indicating that the system is in the automatic
control mode.

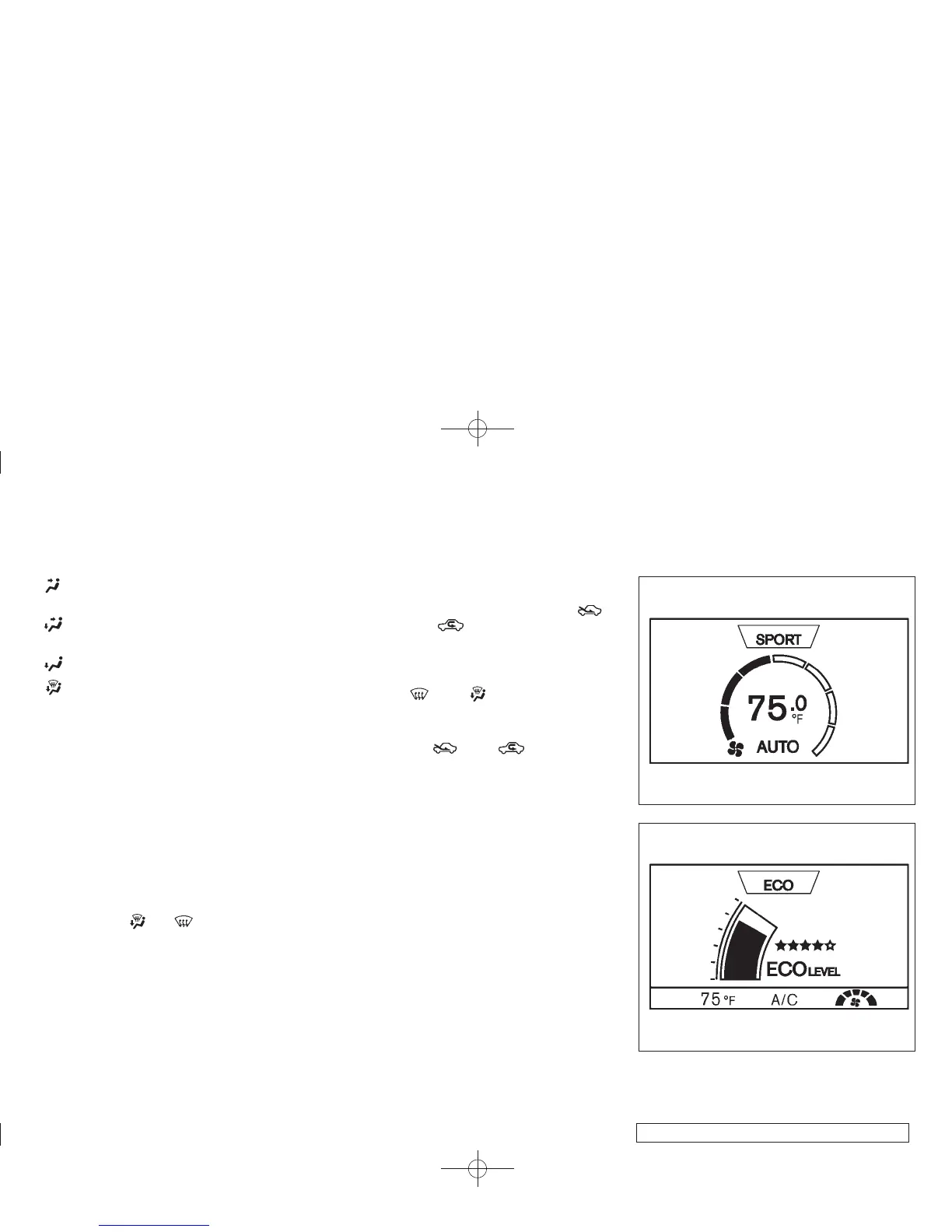

SAA3378
Air conditioner mode screen
SAA3379
Drive mode screen
Heater, air conditioner, audio and phone systems 4-19
