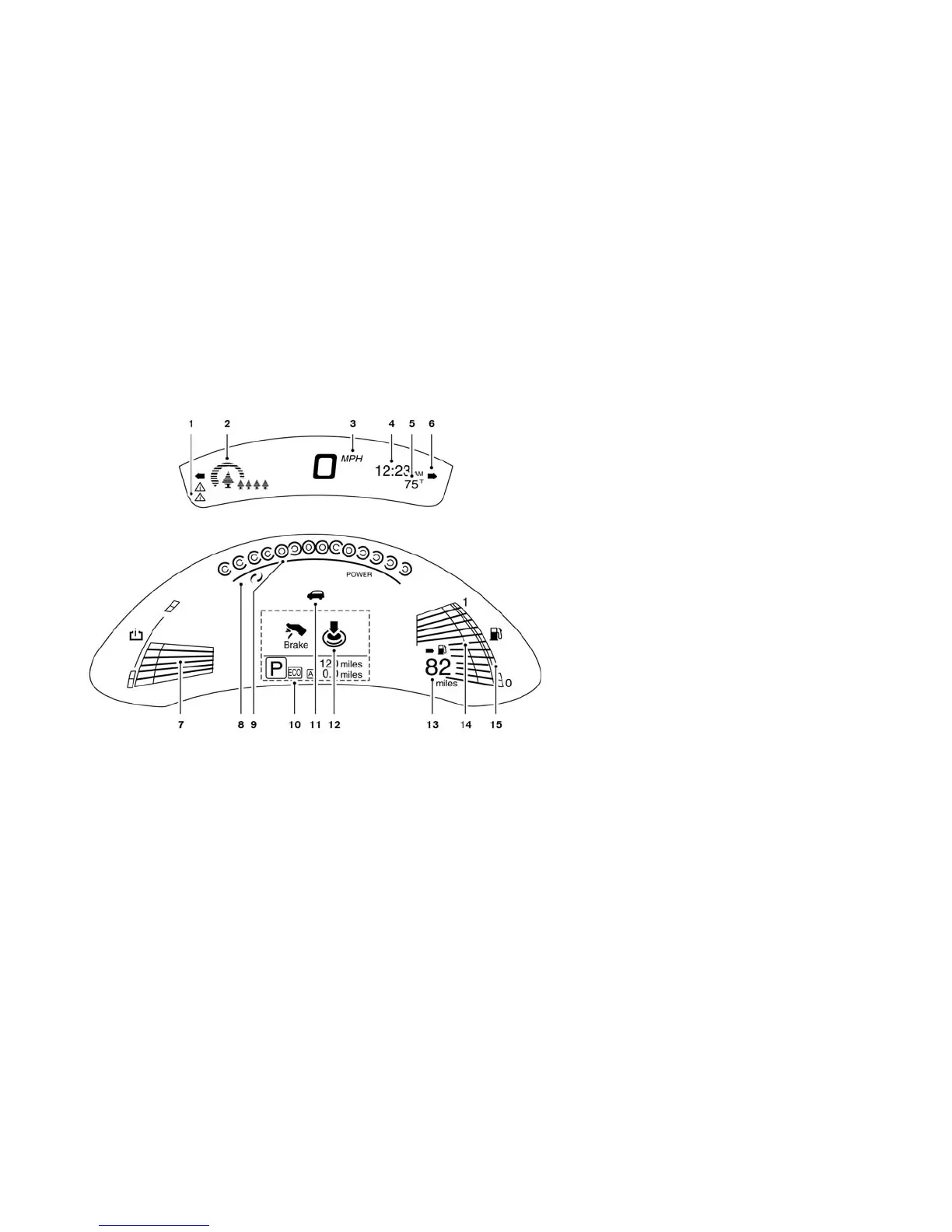

1. Master warning lights
2. ECO indicator
3. Speedometer
4. Clock
5. Outside air temperature
6. Turn signal/Hazard indicator light
7. Li-ion battery temperature gauge
8. Warning/Indicator lights
9. Power meter
10. ECO indicator
11. READY to drive indicator light
12. Dot matrix liquid crystal display
— Odometer/twin trip odometer
— Trip computer
— Shift position indicator
— Indicator for timer
13. Driving range
14. Li-ion battery available charge gauge
15. Li-ion battery capacity level gauge
Upper display and lower display
METERS AND GAUGES
Instruments and controls 2-5
