Nissan LEAF - METERS AND GAUGES

This vehicle is equipped with an upper display
and a lower display.

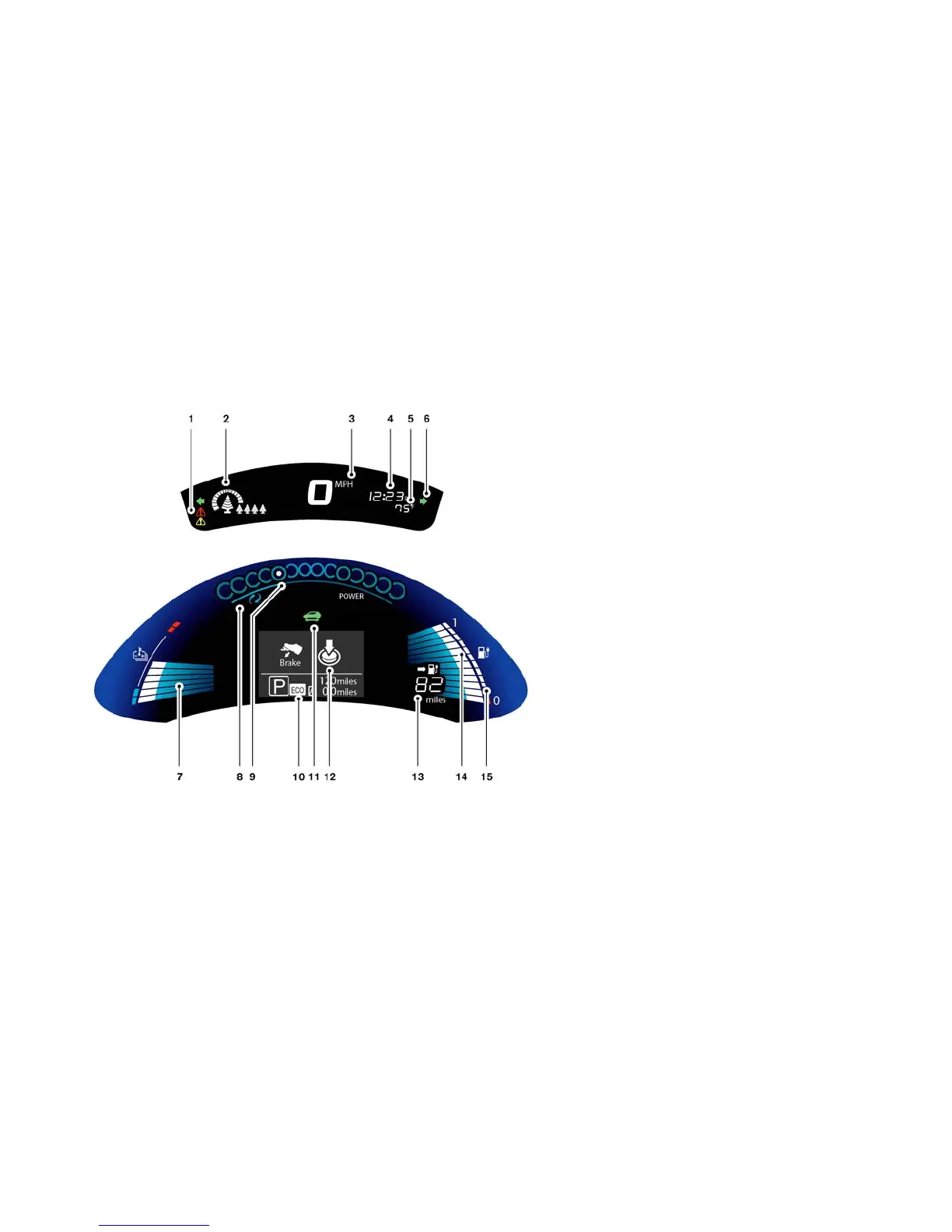

1. Master warning light (P 2-18)
2. ECO indicator (P 2-10)
3. Speedometer (P 2-6)
4. Clock (P 2-11)
5. Outside air temperature (P 2-10)
6. Turn signal/Hazard indicator light (P 2-21)
7. Li-ion battery temperature gauge (P 2-7)
8. Warning/indicator lights (P 2-12)
9. Power meter (P 2-7)
10. ECO indicator (P 2-10)
11. READY to drive indicator light (P 2-20)
12. Dot matrix liquid crystal display (P 2-22)
— Odometer/twin trip odometer (P 2-6)
— Trip computer (P 2-27)
— Shift “P” warning (if so equipped) (P 2-26)
— Indicator for timer (P 2-35)
13. Driving range (P 2-8)
14. Li-ion battery available charge gauge
(P 2-9)
15. Li-ion battery capacity level gauge (P 2-10)
Upper display and lower display
METERS AND GAUGES
Illustrated table of contents 0-9
