To start trickle charging:
*:You can pass a rope through the hole
䊊
A
on the
control box in order to hang it up while the Li-ion
battery is charging.
1. Push the P (Park) position switch to place the
vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the
power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid. See ⬙Charge port
lid⬙ in the ⬙Pre-driving checks and adjust-
ments⬙ section.
4. Take out the EVSE (Electric Vehicle Supply
Equipment) or trickle charge cable from the
rear hatch.
5. Connect the electrical plug to the 110 - 120
volt, 15A dedicated electrical outlet. If it is
connected normally, the green light on the
EVSE (Electric Vehicle Supply Equipment)
control box indicator light illuminates. See
⬙EVSE control box indicator light⬙.
6. Open the charge port cap. See ⬙Charge port
cap⬙ in the ⬙Pre-driving checks and adjust-
ments⬙ section.

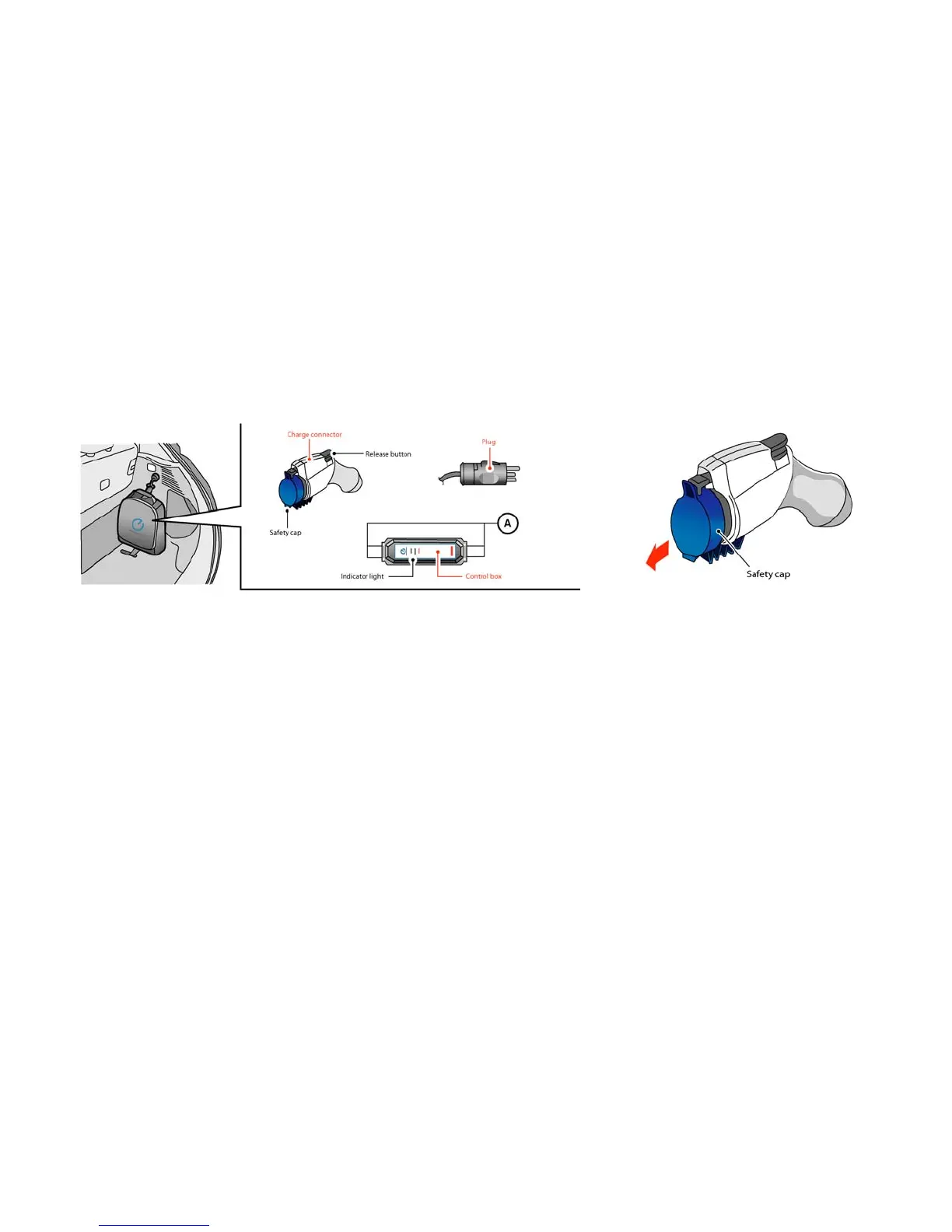

7. Remove the safety cap from charge
connector.
Charging CH-13
