the hill is the place
䊊
B
. Note that any object on
the hill is closer than it appears on the monitor.

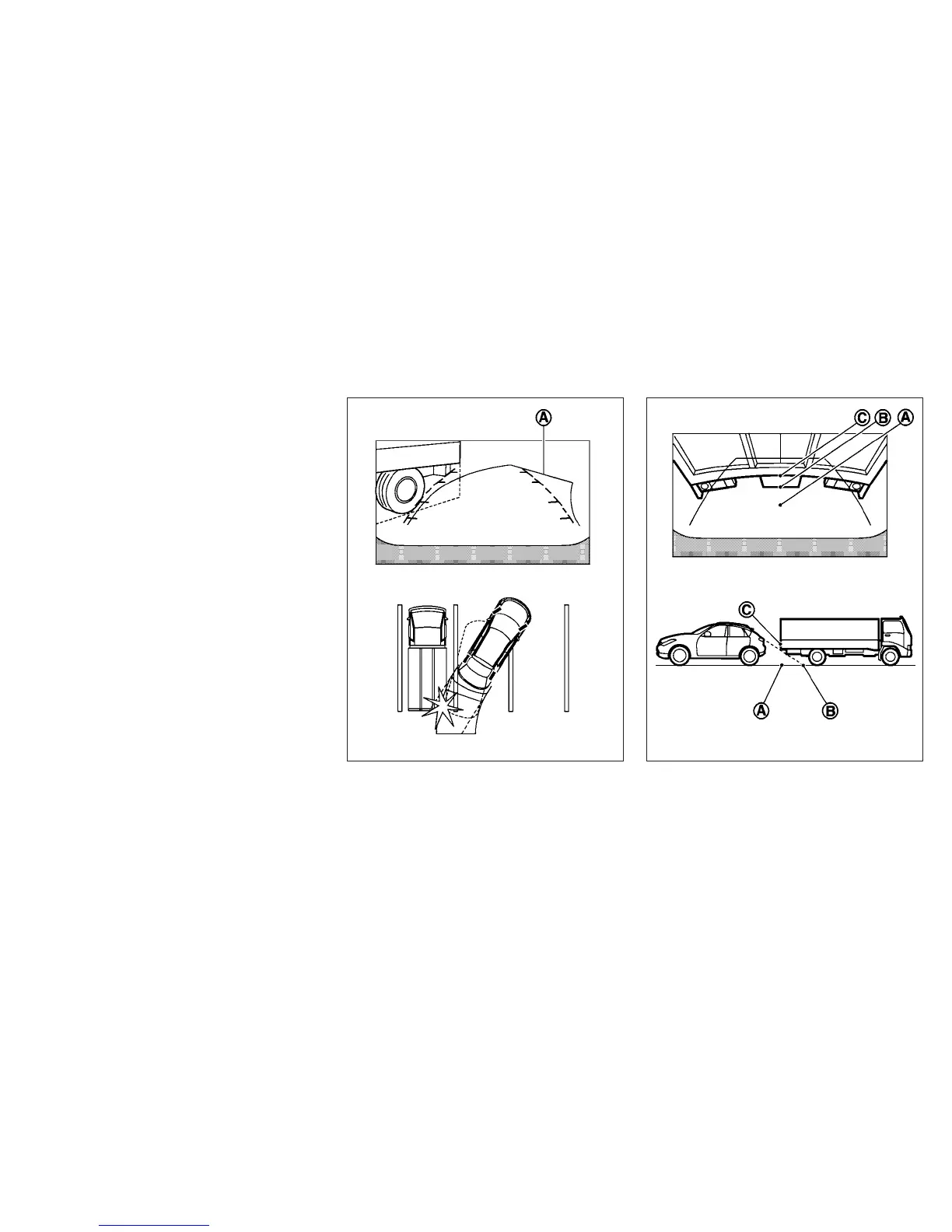

Backing up near a projecting object
The predicted course lines
䊊
A
do not touch the
object in the display. However, the vehicle may hit
the object if it projects over the actual backing up
course.
Backing up behind a projecting object
The position
䊊
C
is shown farther than the position
䊊
B
in the display. However, the position
䊊
C
is
actually at the same distance as the position
䊊
A
.
The vehicle may hit the object when backing up to
LHA1201 LHA1202
4-38 Monitor, climate, audio, phone and voice recognition systems
