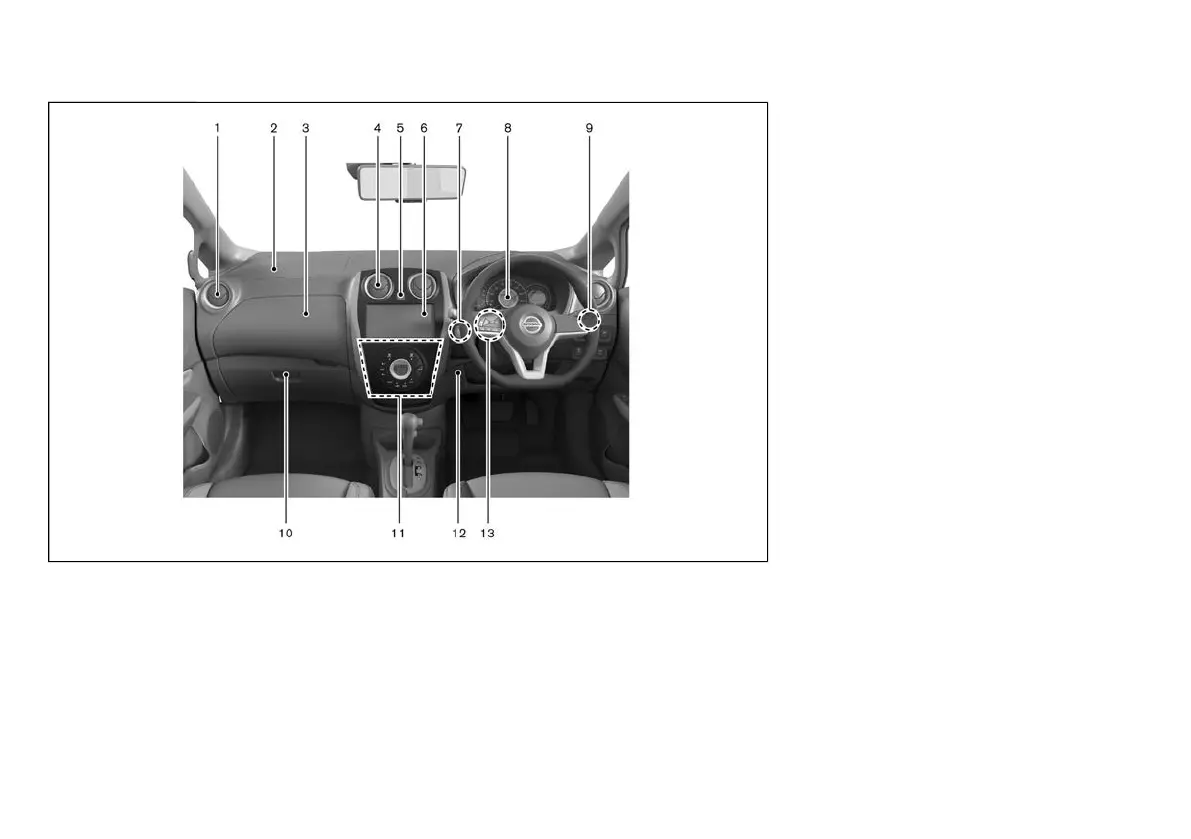

1. Side ventilator (P.4-8)
2. Passenger’s front-impact air bag (P.1-23)
3. Upper instrument box (P.2-27)
— USB (Universal Serial Bus) Connection Port
(P.4-23)
4. Center ventilator (P.4-8)
5. Hazard indicator flasher switch (P.6-2)
6. Audio system* (P.4-14)
7. Push-button ignition switch (P.5-4)
8. Meters and gauges (P.2-4)
9. Trip computer mode switch* (P.2-7)/Clock set-
tings switch* (P.2-25)
10. Glove box (P.2-26)
11. Heater and air conditioner control (P.4-9)
— Rear window defogger switch (P.2-22)
12. Fuse box (P.8-19)
13. Steering-wheel-mounted controls* (P.4-25)
*: if equipped
Illustrated table of contents 0-7
