Stowing rear center seat belt:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
JVR0003X

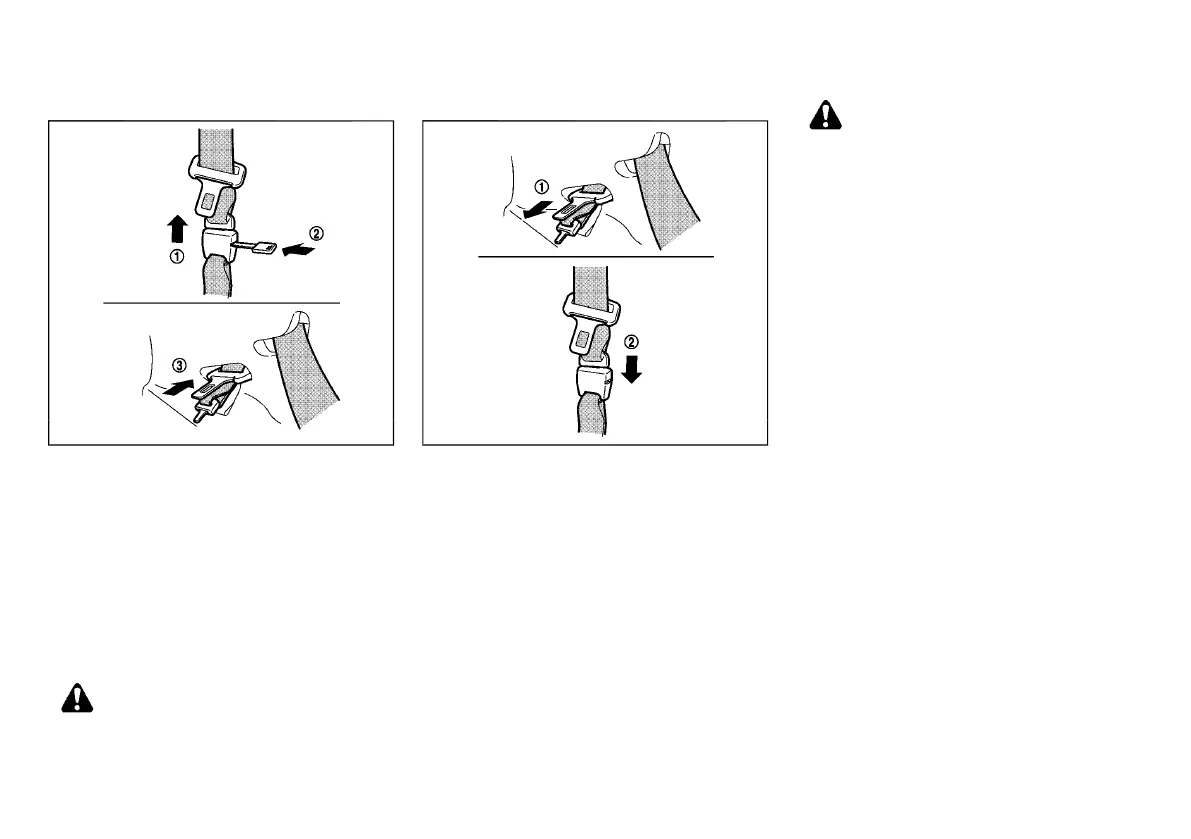

When folding down the rear seat, the rear center seat
belt can be retracted into a stowed position.
1. Hold the connector tongue
*
1
so that the seat
belt does not retract suddenly when the tongue is
released from the connector buckle. Release the
connector tongue by inserting a suitable tool such
as key
*
2
into the connector buckle.
2. Remove the seat belt from the path
*
A
.
3. Retract the seat belt and store the seat belt
tongue and connector tongue on the stowed
position
*
3
.
WARNING:
. Do not unfasten the rear center seat belt
connector except when folding down the
rear seat.
Attaching rear center seat belt:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
JVR0004X
Always be sure the rear center seat belt connector
tongue and connector buckle are attached. Discon-
nect only when folding down the rear seat.
To connect the buckle:
1. Pull the seat belt tongue and connector tongue
from the stowed position
*
1
.
2. Install the seat belt to the path
*
A
.
3. Pull the seat belt and secure the connector buckle
until it clicks
*
2
.
The center seat belt buckle is identified by the
CENTER mark. The center seat belt tongue can be
fastened only into the center seat belt buckle.
To fasten the seat belt, see “Fastening seat belts” (P.1-
9).
WARNING:
. When attaching the rear center seat belt
connector, be certain that the seatbacks are
completely secured in the latched position
and the rear center seat belt connector is
completely secured.
. If the rear center seat belt connector and the
seatbacks are not secured in the correct
position, serious personal injury may result
in an accident or sudden stop.
SEAT BELT MAINTENANCE
E12-A-120227-B0F298CD-913B-46BF-8E46-89902A89FA3B
Periodically check that the seat belt and all the metal
components, such as buckles, tongues, retractors,
flexible wires and anchors, work properly. If loose parts,
deterioration, cuts or other damage on the seat belt
webbing is found, the entire seat belt assembly should
be replaced.
If dirt builds up in the shoulder belt guide of the seat
belt anchors, the seat belts may retract slowly. Wipe
the shoulder belt guide with a clean, dry cloth.
To clean the seat belt webbing, apply a mild soap
solution or any solution recommended for cleaning
upholstery or carpet. Then wipe with a cloth and allow
the seat belts to dry in the shade. Do not allow the seat
belts to retract until they are completely dry.
Safety — seats, seat belts and supplemental restraint system 1-11
