1-18 Safety — seats, seat belts and supplemental restraint system
. The child restraint top tether strap may be
damaged by contact with the items in the
luggage area. Your child could be seriously
injured or killed in a collision if the top
tether strap is damaged.

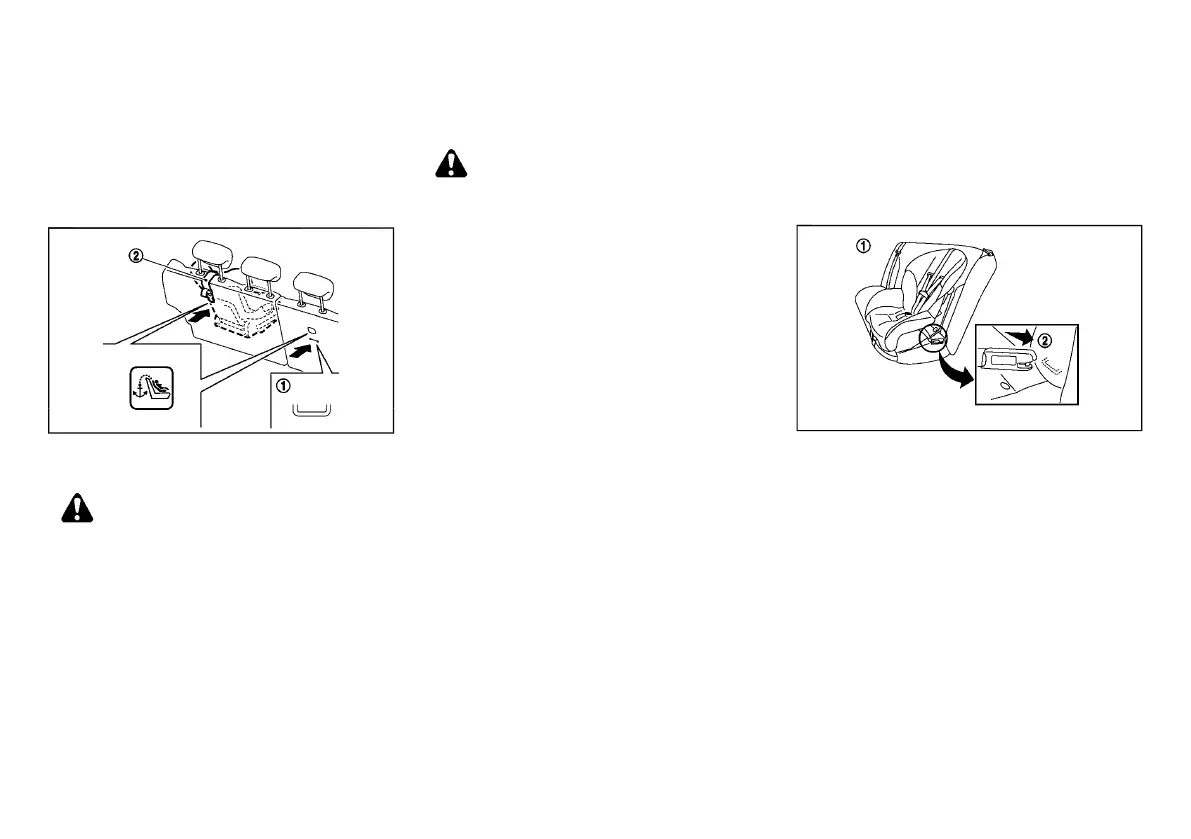

Anchorage location
E12-A-120227-E7B5F4AB-1328-4E20-B669-B64DEF0C01CD
JVR0297X
The anchor points
*
1
are located on the seat behind
the rear seats outboard seating positions.
CAUTION:
. Pull up the rear head restraint to raise to the
proper position and make sure it is securely
locked.
. Depending on the shape of the child re-
straint system, either the child restraint
system or the child restraint top tether strap
*
2
may interfere with the head restraint.
When this occurs, remove the head restraint
and then install the child restraint system.
CHILD RESTRAINT INSTALLATION USING
ISOFIX
GUID-53FE5214-421C-46ED-A520-C1209D82CBE1
WARNING:
. Attach ISOFIX child restraints only at the
specified locations. For the ISOFIX lower
anchor locations, see “ISOFIX child restraint
system” (P.1-17). If a child restraint is not
secured properly, your child could be ser-
iously injured or killed in an accident.
. Do not install child restraints that require the
use of a top tether strap to seating positions
that do not have a top tether anchor.
. Do not secure a child restraint in the center
rear seating position using the ISOFIX lower
anchors. The child restraint will not be
secured properly.
. Inspect the lower anchors by inserting your
fingers into the lower anchor area and
feeling to make sure there are no obstruc-
tions over the ISOFIX anchors, such as seat
belt webbing or seat cushion material. The
child restraint will not be secured properly if
the ISOFIX anchors are obstructed.
. Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for adult
seat belts, harnesses or for attaching other
items or equipment to the vehicle. Doing so
could damage the child restraint an-
chorages. The child restraint will not be
properly installed using the damaged an-
chorage, and a child could be seriously
injured or killed in a collision.
Installation on rear outboard seats
GUID-7AE84026-FBAE-4345-A524-6365A9035BB2
Front-facing:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a front-facing child restraint on the rear
outboard seats using ISOFIX:
SSS0646A
Steps 1 and 2
1. Position the child restraint on the seat
*
1
.
2. Secure the child restraint anchor attachments to
the ISOFIX lower anchors
*
2
.
3. The back of the child restraint should be secured
against the vehicle seatback. If necessary, adjust
or remove the head restraint to obtain the correct
child restraint fit. (See “Head restraints” (P.1-4).) If
the head restraint is removed, store it in a secure
place. Be sure to install the head restraint when
the child restraint is removed. If the seating
position does not have an adjustable head
restraint and it is interfering with the proper child
restraint fit, try another seating position or a
different child restraint.
Condition:
