WARNING:
In freezing temperatures, the washer fluid may
freeze on the windshield and obscure your
vision. Warm the windshield with the defogger
before you wash the windshield.
CAUTION:
. Do not operate the washer continuously for
longer than 30 seconds.
. Do not operate the washer if the window
washer fluid reservoir is empty.
. If the wiper operation is interrupted by snow
or ice, the wiper may stop moving to protect
its motor. If this occurs, turn the wiper switch
to the “OFF” position and remove the snow
or ice on and around the wiper arms. In
approximately 1 minute, turn the switch on
again to operate the wiper.
WINDSHIELD WIPER AND WASHER
SWITCH
E12-A-120227-5CA3AD80-E072-4B97-943D-CF6B722C6853
The windshield wiper and washer operate when the
ignition switch is in the “ON” position.
Wiper operation
E12-A-120227-20B65FEC-07B9-4627-94D1-96E057067C89

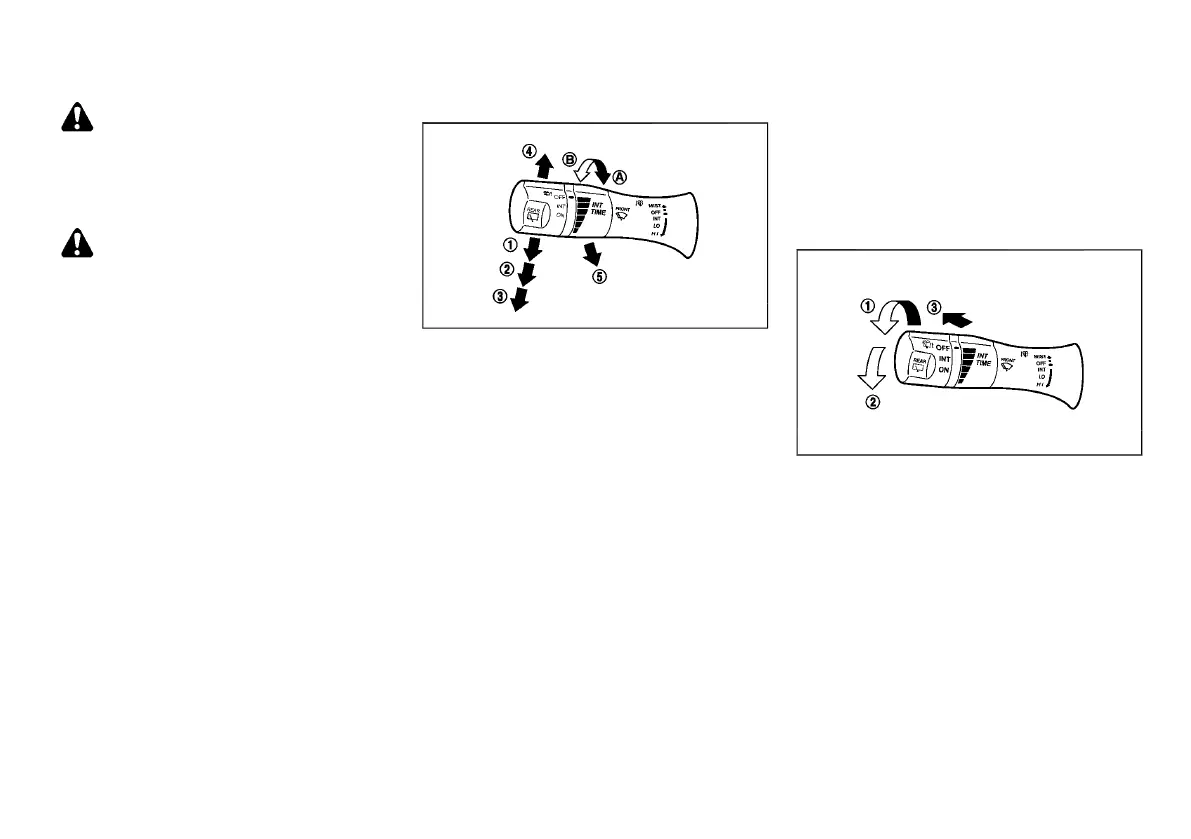

JVI0271X
The lever position
*
1
operates the wiper intermit-
tently.
. The intermittent operation can be adjusted by
turning the adjustment control knob, (longer)
*
A
or (shorter)
*
B
.
. The speed of the intermittent operation varies
depending on the vehicle speed.
The lever position “LO”
*
2
operates the wiper at low
speed.
The lever position “HI”
*
3
operates the wiper at high
speed.
To stop the wiper operation, move the lever up to the
“OFF” position.
The lever position “MIST”
*
4
operates the wiper for
one sweep. The lever automatically returns to its
original position.
Washer operation
E12-A-120227-AC0D5C6D-91CC-4578-BC19-51AEC13399E2
To operate the washer, pull the lever toward the back
of the vehicle
*
5
until the desired amount of washer
fluid is spread on the windshield. The wiper will
automatically operate several times.
REAR WINDOW WIPER AND WASHER
SWITCH
GUID-64976EA4-8E25-4A50-8F19-58BBFE8005DA
SIC4076
The rear window wiper and washer operates when the
ignition switch is in the “ON” position.
Wiper operation
GUID-E7DB5965-6554-4179-89B4-045CA02AB194
The switch position “INT”
*
1
operates the wiper
intermittently.
The switch position “ON”
*
2
operates the wiper
continuously.
To stop the wiper operation, turn the switch to the
“OFF” position.
Instruments and controls 2-21
WIPER AND WASHER SWITCH
Condition:
