0-4 Illustrated table of contents
E12-A-120227-2829AD6C-D1F7-4636-95EE-926E9D3944A8
JVC1004X

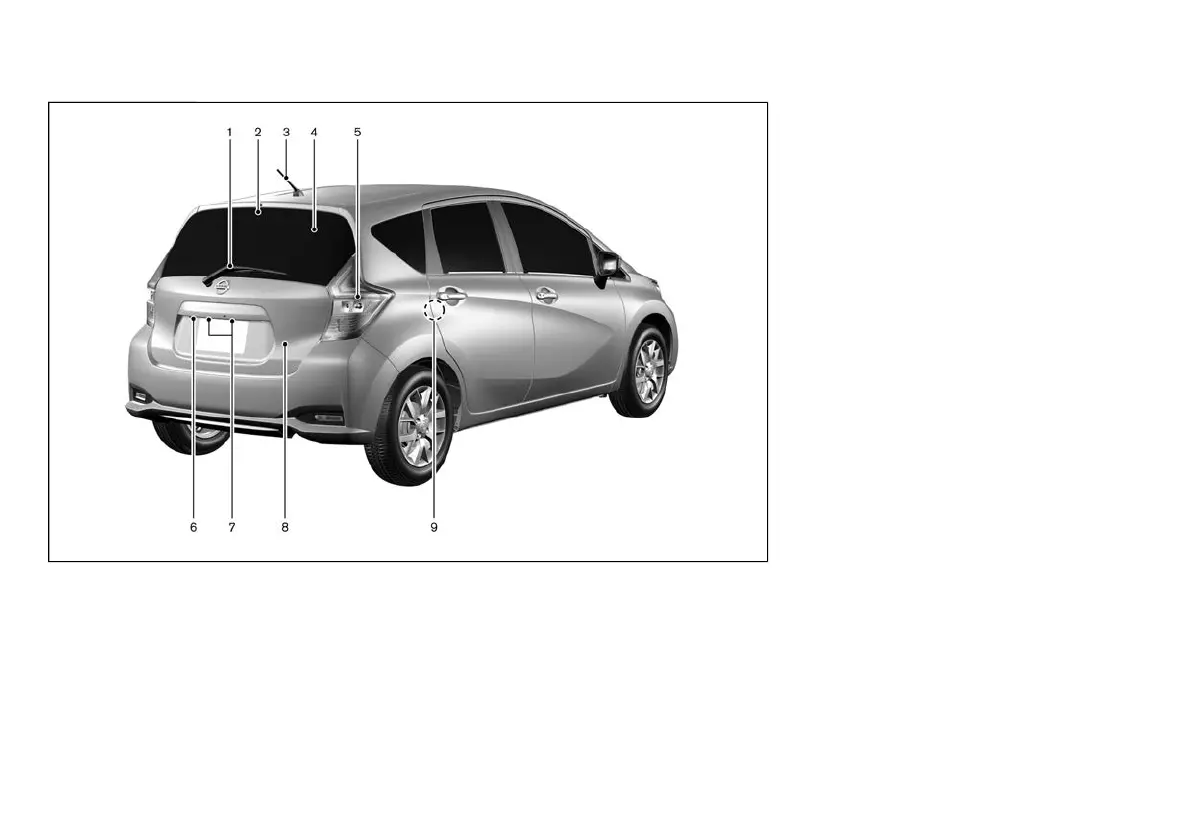

1. Rear window wiper and washer
— Switch operation (P.2-21)
— Window washer fluid (P.8-15)
2. High-mounted stop light (P.8-21)
3. Antenna (P.4-19)
4. Rear window defogger (P.2-22)
5. Tail lights
— Switch operation (P.2-18)
— Bulb replacement (P.8-21)
Turn signal lights
— Switch operation (P.2-20)
— Bulb replacement (P.8-21)
Reverse light (P.8-21)
Stop lights (P.8-21)
6. Rear view camera* (P.4-2)
7. License plate light (P.8-21)
8. Rear hatch (P.3-13)
— Intelligent Key system (P.3-4)
9. Child safety rear door lock (P.3-4)
*: if equipped
