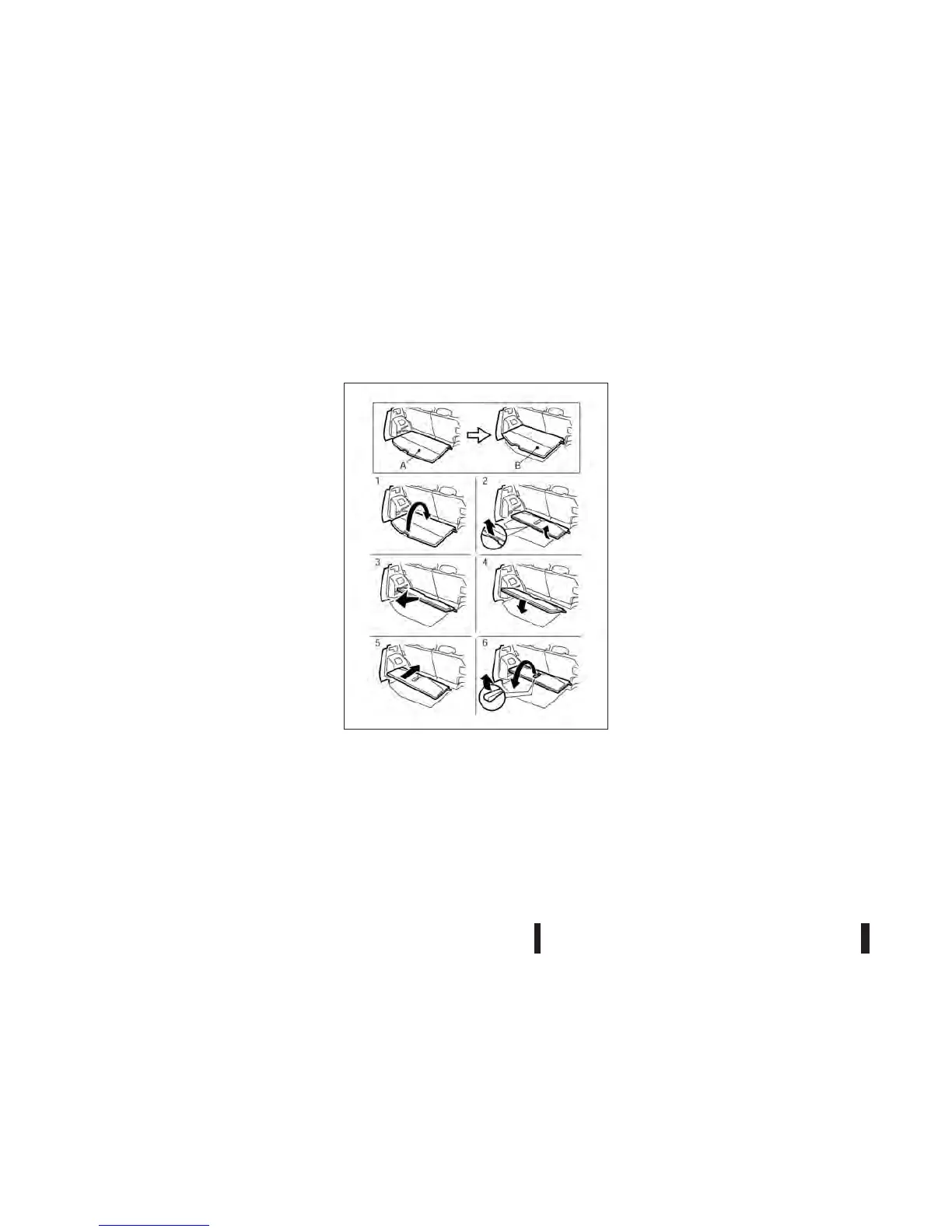

4. Slide the folded Karakuri board down following
the trim panel slots until it reaches the end stops.
5. Lower the folded Karakuri board.
6. Unfold and close the panel.
To raise (B)
1. Lift the rear part of the Karakuri board and fold
onto front part.
2. Lift the Karakuri board as shown.
3. Move the Karakuri board up along the trim panel
slots towards the rear of the vehicle until it
reaches the end stops.
4. Level the folded Karakuri board horizontally.
5. Slide the folded Karakuri board forwards follow-
ing the trim panel slots until it reaches the end
stops.
6. Unfold and close the panel.
Removal
The Karakuri board can be removed from the ve-
hicle by unlatching the 2 sliding locks on the front of
the Karakuri board. Slide the 2 locks towards the
centre of the vehicle to remove the Karakuri board.
NPA1181
2-32 Instruments and controls
