SYSTEM DESCRIPTION
COMPONENT PARTS

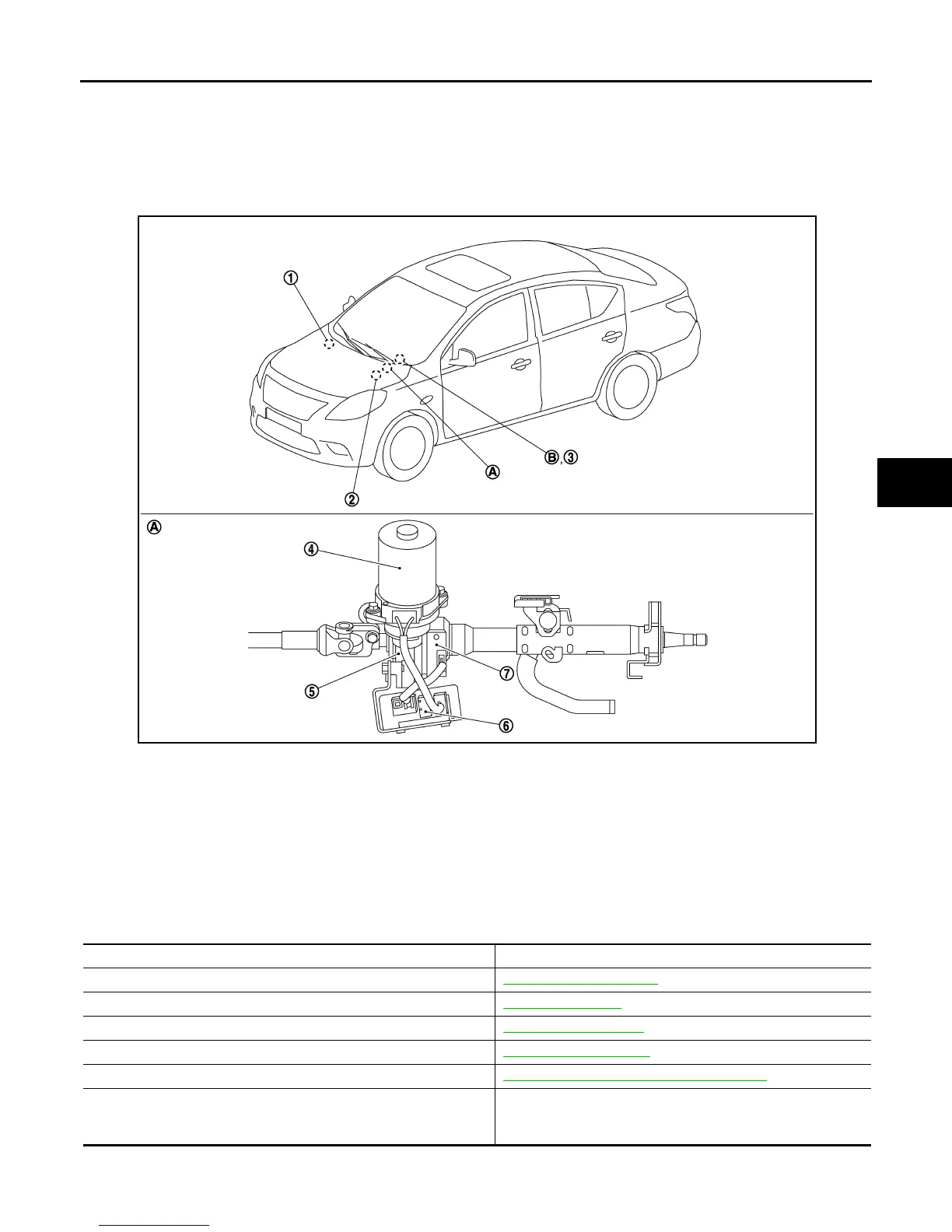

Component Parts Location INFOID:0000000007207858
Component Description INFOID:0000000007207859
1. ABS actuator and electric unit (con-
trol unit)
2. ECM 3. Combination meter
4. EPS motor 5. Reduction gear 6. EPS control unit
7. Torque sensor
A. Steering column assembly (view with
removed from vehicle)
B. EPS warning lamp
(In combination meter)
JSGIA0902GB
Components parts Reference
EPS control unit STC-6, "EPS Control Unit"
EPS motor STC-6, "EPS Motor"
Torque sensor STC-6, "Torque Sensor"
Reduction gear STC-6, "Reduction Gear"
EPS warning lamp STC-7, "EPS SYSTEM : System Description"
ECM
• Transmits mainly the following signals to EPS control unit via
CAN communication.
- Engine status signal
Revision: March 2013 2012 Versa Sedan
